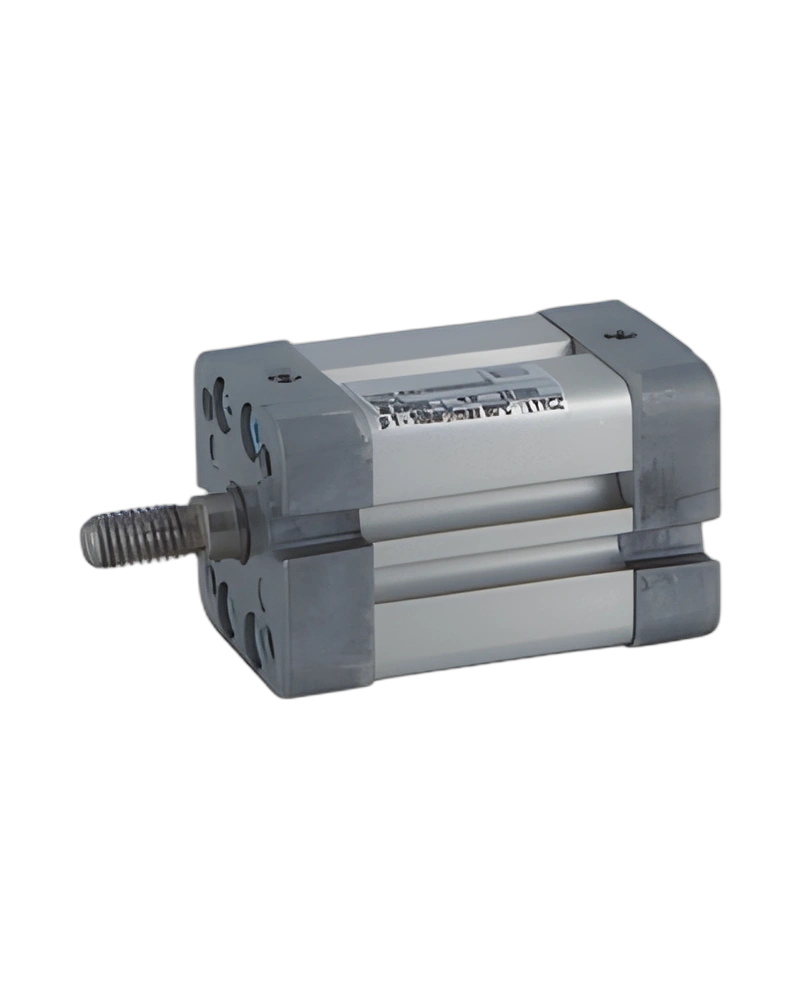

RA-192063-M-10 is a NORGREN ISO compact double acting cylinder, 63mm diameter, 10mm stroke - RA/192063/M/10 configuration. The product entry brings together the stated connection, drainage, filtration and other technical characteristics for this exact listed model, so the content remains focused on the selected configuration.
The core configuration is defined by Medium: Compressed air; Standard: ISO 21287; Cushioning: Buffer cushioning; Theoretical Force (6 bar): 1870 N; Country of Origin: Germany; Range: RA/192000/M; Gauge: ' B ' VA CUUM PORT (2X) AUXILIARY PORTS P R S 3X Ø ' D '; Gauge: P R F J K V U T. These values identify the product configuration and distinguish the listed arrangement from other configurations in the same range.
The available operating data specifies Port Size: G1/8; Operating Temperature: -5 ... 80 °C, 23 ... 176 °F; Operating Pressure: 1 ... 10 bar, 15 ... 145 psi. Where pressure, temperature, flow, media, adjustment or drain information is provided, these values are included directly so the description remains aligned with the listed configuration.
The construction data records Materials - Barrel: Anodised aluminium; Materials - Piston Head Seals: Nitrile rubber (NBR); Materials - Piston Rod: Stainless steel (martensitic); Materials: cable Characteristics M/50/LSU/5V ● 5 m -20 to +80 °C PVC - M/50/LSU/CP ● 0,3 m with plug M8 -20 to +80 °C PVC - M/50/LSU/5U ● 5 m -20 to +80 °C PUR cable very flexible Model LED (Am- arelo) Cable length /; Materials: cable Ex identification M/50/EAP/5V ● 5 m PNP -20 to +80 °C PVC - M/50/EAP/CP ● 0,3 m with plug M8 PNP -20 to +80 °C PVC - Model LED (Am- arelo); Materials: cable Ex identification M/50/IOP/5V ● 5 m PNP -20 to +80 °C PVC - M/50/IOP/CP ● 0,3 m with plug M8 PNP -20 to +80 °C PVC - Model LED (Yellow) Cable length / plug - - - M/P73001/5 M/P73001/10 M/P73002/5; Materials: cable Characteristics QM/32/2 ● 2 m -20 … +80°C PVC - QM/32/P ● M12 Plug -20 … +80°C - - Model Diameter Atuador QM/31/032/22 Ø32 … 63 QM/31/080/22 Ø80 … 125 QM/31/160/22 Ø160 and 200 QM/31/250/22 Ø250; Materials: Scale. These material details describe the components and material entries associated with the listed product rather than making broader durability or compatibility claims.
Physical and additional catalogue information includes Stroke Length: 10 mm; Weight: 10 kg. This information can be used alongside the configuration and operating values when selecting the listed model.
Languages 0 Basket Products Industries
| Specification | Value |
|---|---|
| Medium | Compressed air |
| Standard | ISO 21287 |
| Port Size | G1/8 |
| Stroke Length | 10 mm |
| Operating Temperature | -5 ... 80 °C, 23 ... 176 °F |
| Operating Pressure | 1 ... 10 bar, 15 ... 145 psi |
| Cushioning | Buffer cushioning |
| Theoretical Force (6 bar) | 1870 N |
| Materials - Barrel | Anodised aluminium |
| Materials - Piston Head Seals | Nitrile rubber (NBR) |
| Materials - Piston Rod | Stainless steel (martensitic) |
| Country of Origin | Germany |
| Range | RA/192000/M |
| Materials | cable Characteristics M/50/LSU/5V ● 5 m -20 to +80 °C PVC - M/50/LSU/CP ● 0,3 m with plug M8 -20 to +80 °C PVC - M/50/LSU/5U ● 5 m -20 to +80 °C PUR cable very flexible Model LED (Am- arelo) Cable length / |
| Materials | cable Ex identification M/50/EAP/5V ● 5 m PNP -20 to +80 °C PVC - M/50/EAP/CP ● 0,3 m with plug M8 PNP -20 to +80 °C PVC - Model LED (Am- arelo) |
| Materials | cable Ex identification M/50/IOP/5V ● 5 m PNP -20 to +80 °C PVC - M/50/IOP/CP ● 0,3 m with plug M8 PNP -20 to +80 °C PVC - Model LED (Yellow) Cable length / plug - - - M/P73001/5 M/P73001/10 M/P73002/5 |
| Materials | cable Characteristics QM/32/2 ● 2 m -20 … +80°C PVC - QM/32/P ● M12 Plug -20 … +80°C - - Model Diameter Atuador QM/31/032/22 Ø32 … 63 QM/31/080/22 Ø80 … 125 QM/31/160/22 Ø160 and 200 QM/31/250/22 Ø250 |
| Gauge | ' B ' VA CUUM PORT (2X) AUXILIARY PORTS P R S 3X Ø ' D ' |
| Gauge | P R F J K V U T |
| Materials | Scale |
| Model | RA/192063/M/10 |
| Weight | 10 kg |
