Explore performance details, construction highlights, applications, and technical information in one clear overview.

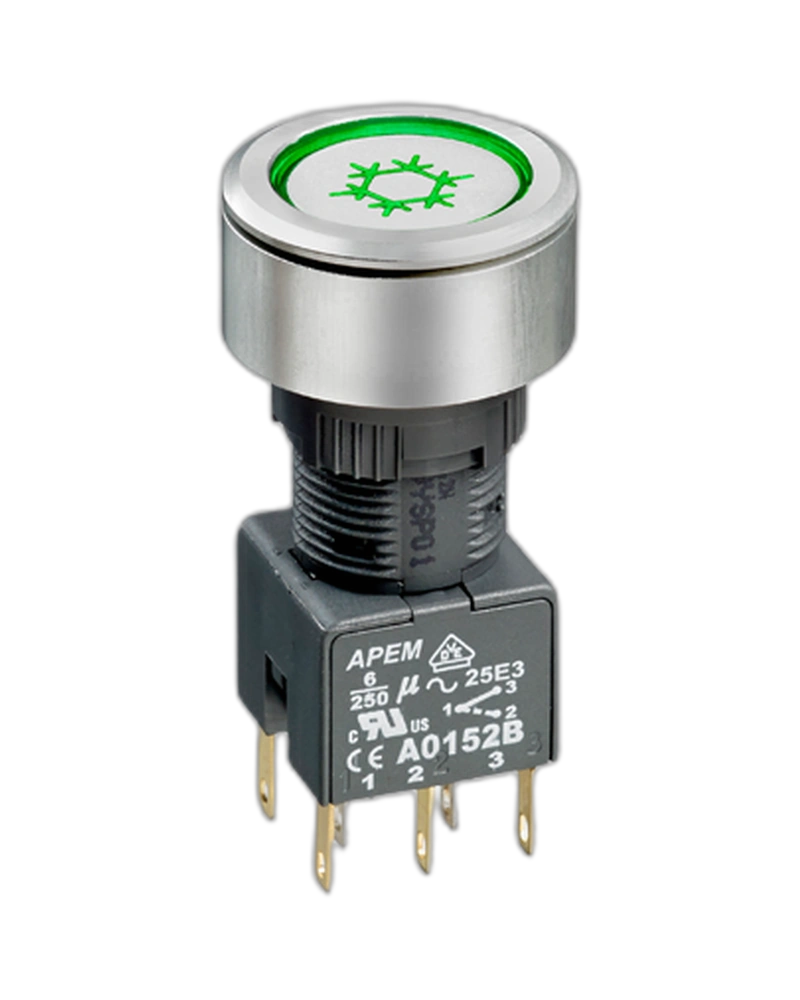

The APEM Industrial Controls Switches A1PCB10519K403 is a Switches and Pushbutton with documented product-specific characteristics including Sealing: IP65,Switch Type:Push Button,Switch Block:3-Pole,Accessories:Flush Mount; Electrical Functions: Indicator; Operating temperature: -20°C to +55°C Solder heat resistance : 350°C for 5 seconds.
| Feature | Specification |
|---|---|
| Initial contact resistance | 10mΩ max at 1Amp 4VDC |
| Insulation resistance | 50MΩ min |
| Dielectric strength | 750V between open contacts, 5KV live to accessible Electrical life 50,000 cycles min Insulation : Class 2 Lamp life : LED, 60,000 hours to 75% relative luminosity filament, approx. 5000 hours,neon, approx. 10,000 hour |
| voltage rating | 10mA 5VAC min, 6Amp 250VAC, 6Amp 12VDC |
| Feature | Specification |
|---|---|
| Operating temperature | -20°C to +55°C Solder heat resistance : 350°C for 5 seconds |
| Feature | Specification |
|---|---|
| Initial contact resistance | 10mΩ max at 1Amp 4VDC |
| Dielectric strength | 750V between open contacts, 5KV live to accessible Electrical life 50,000 cycles min Insulation : Class 2 Lamp life : LED, 60,000 hours to 75% relative luminosity filament, approx. 5000 hours,neon, approx. 10,000 hour |
| voltage rating | 10mA 5VAC min, 6Amp 250VAC, 6Amp 12VDC |
| Feature | Specification |
|---|---|
| Operating temperature | -20°C to +55°C Solder heat resistance : 350°C for 5 seconds |
| Feature | Specification |
|---|---|
| Sealing | IP65,Switch Type:Push Button,Switch Block:3-Pole,Accessories:Flush Mount |
| Electrical Functions | Indicator |
