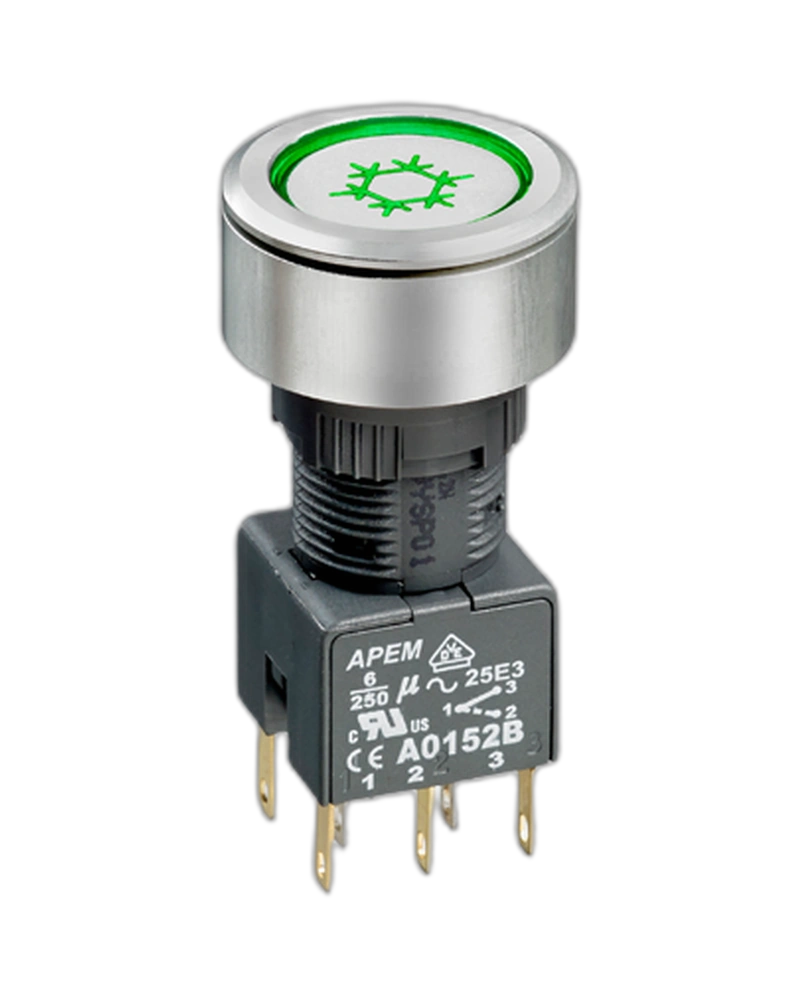

The APEM Industrial Controls Switches A1ICB1Y510K103 is a 3-pole indicator autoswitch designed for robust industrial environments. With an IP65 sealing rating, it operates reliably between -20°C and +55°C, featuring momentary electrical functions and high durability with 50,000 cycle life. This switch delivers precise control for demanding applications requiring minimal contact resistance and strong insulation.
The APEM Industrial Controls Switches A1ICB1Y510K103 is a 3-pole indicator autoswitch engineered for industrial use, combining robust construction with precise electrical performance. Its IP65 sealing ensures protection against dust and water, making it suitable for harsh environments. The switch operates within a wide temperature range of -20°C to +55°C and features momentary electrical functions for reliable control applications. With a minimum contact resistance of 10mΩ at 1Amp 4VDC and 50,000 cycle life, this switch delivers consistent performance in demanding industrial settings.
The APEM Industrial Controls Switches A1ICB1Y510K103 operates within a voltage range of 10mA 5VAC min to 6Amp 250VAC and 6Amp 12VDC. It supports momentary electrical functions with an initial contact resistance of 10mΩ max at 1Amp 4VDC. The switch has a dielectric strength of 750V between open contacts and 5KV live to accessible, ensuring reliable electrical isolation.
This switch is designed for operation in extreme temperatures ranging from -20°C to +55°C. Its IP65 sealing rating provides robust protection against dust and water ingress, making it ideal for outdoor or harsh industrial environments. The solder heat resistance of 350°C for 5 seconds ensures durability during high-temperature soldering processes.
With a minimum electrical life of 50,000 cycles, the APEM Industrial Controls Switches A1ICB1Y510K103 ensures long-term reliability in demanding applications. The switch also features a high insulation resistance of 50MΩ min and a dielectric strength of 750V between open contacts, contributing to its robust performance in industrial settings.
| Feature | Specification |
|---|---|
| Initial contact resistance | 10mΩ max at 1Amp 4VDC |
| Dielectric strength | 750V between open contacts, 5KV live to accessible Electrical life 50,000 cycles min Insulation : Class 2 Lamp life : LED, 60,000 hours to 75% relative luminosity filament, approx. 5000 hours,neon, approx. 10,000 hour |
| voltage rating | 10mA 5VAC min, 6Amp 250VAC, 6Amp 12VDC |
| Feature | Specification |
|---|---|
| Operating temperature | -20°C to +55°C Solder heat resistance : 350°C for 5 seconds |
| Feature | Specification |
|---|---|
| Sealing | IP65,Switch Type:indicator,Switch Block:3-Pole,Accessories:Flush Mount |
| Electrical Functions | Momentary |
The APEMIndustrial Controls Switches A1ICB1Y510K103 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Initial contact resistance | 10mΩ max at 1Amp 4VDC |
| Dielectric strength | 750V between open contacts, 5KV live to accessible Electrical life 50,000 cycles min Insulation : Class 2 Lamp life : LED, 60,000 hours to 75% relative luminosity filament, approx. 5000 hours,neon, approx. 10,000 hour |
| voltage rating | 10mA 5VAC min, 6Amp 250VAC, 6Amp 12VDC |
| Feature | Specification |
|---|---|
| Operating temperature | -20°C to +55°C Solder heat resistance : 350°C for 5 seconds |
| Feature | Specification |
|---|---|
| Sealing | IP65,Switch Type:indicator,Switch Block:3-Pole,Accessories:Flush Mount |
| Electrical Functions | Momentary |
