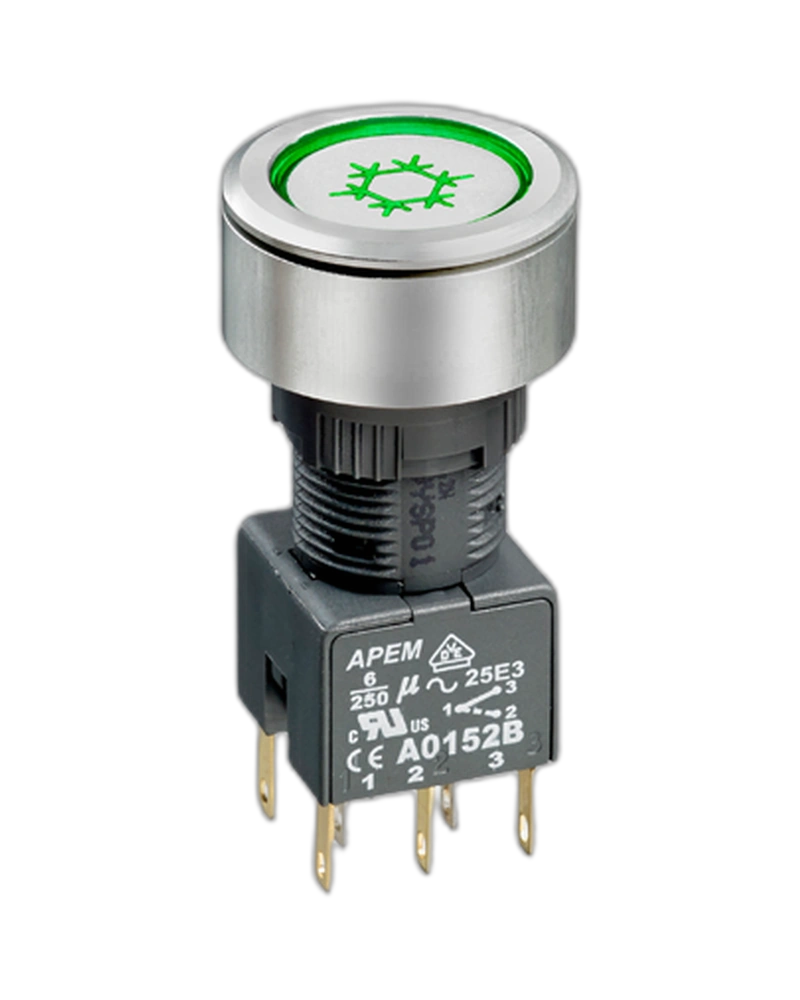

The APEM Industrial Controls Switches A1ICB1Y211D103 is a 2-pole momentary autoswitch designed for robust industrial applications. With an IP65 sealing rating, 50,000 cycle electrical life, and operation across -20°C to +55°C temperatures, this switch ensures reliable performance in demanding environments. Its flush mount design and 10mΩ max contact resistance at 1Amp 4VDC make it ideal for precise control systems.
The APEM Industrial Controls Switches A1ICB1Y211D103 is a high-reliability 2-pole momentary autoswitch engineered for industrial automation systems. This switch delivers exceptional durability through its IP65 sealing, ensuring protection against dust and water ingress in harsh conditions. With an operating temperature range of -20°C to +55°C and a minimum electrical life of 50,000 cycles, it maintains consistent performance across extreme environmental conditions. The switch features a flush mount design, low contact resistance (10mΩ max at 1Amp 4VDC), and robust insulation (50MΩ min), making it suitable for critical control applications where reliability and precision are paramount.
The APEM Industrial Controls Switches A1ICB1Y211D103 operates within a voltage range of 10mA 5VAC min to 6Amp 250VAC and 6Amp 12VDC. It supports momentary operation with a maximum contact resistance of 10mΩ at 1Amp 4VDC. The switch demonstrates a dielectric strength of 750V between open contacts and 5KV live to accessible components, ensuring safe electrical isolation under demanding conditions.
Engineered for extreme environments, this switch operates reliably across a temperature range of -20°C to +55°C. Its IP65 sealing rating provides robust protection against dust and water, making it suitable for outdoor installations and industrial settings with high exposure to contaminants. The solder heat resistance of 350°C for 5 seconds further enhances its suitability for high-temperature applications.
With a minimum electrical life of 50,000 cycles, the APEM Industrial Controls Switches A1ICB1Y211D103 ensures long-term operational stability in industrial automation systems. The switch maintains consistent performance over time, with a 60,000-hour LED lamp life (to 75% luminosity) and a 5000-hour filament lamp life, providing reliable illumination for status indicators in critical control environments.
| Feature | Specification |
|---|---|
| Initial contact resistance | 10mΩ max at 1Amp 4VDC |
| Dielectric strength | 750V between open contacts, 5KV live to accessible Electrical life 50,000 cycles min Insulation : Class 2 Lamp life : LED, 60,000 hours to 75% relative luminosity filament, approx. 5000 hours,neon, approx. 10,000 hour |
| voltage rating | 10mA 5VAC min, 6Amp 250VAC, 6Amp 12VDC |
| Feature | Specification |
|---|---|
| Operating temperature | -20°C to +55°C Solder heat resistance : 350°C for 5 seconds |
| Feature | Specification |
|---|---|
| Sealing | IP65,Switch Type:indicator,Switch Block:2-Pole,Accessories:Flush Mount |
| Electrical Functions | Momentary |
The APEMIndustrial Controls Switches A1ICB1Y211D103 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Initial contact resistance | 10mΩ max at 1Amp 4VDC |
| Dielectric strength | 750V between open contacts, 5KV live to accessible Electrical life 50,000 cycles min Insulation : Class 2 Lamp life : LED, 60,000 hours to 75% relative luminosity filament, approx. 5000 hours,neon, approx. 10,000 hour |
| voltage rating | 10mA 5VAC min, 6Amp 250VAC, 6Amp 12VDC |
| Feature | Specification |
|---|---|
| Operating temperature | -20°C to +55°C Solder heat resistance : 350°C for 5 seconds |
| Feature | Specification |
|---|---|
| Sealing | IP65,Switch Type:indicator,Switch Block:2-Pole,Accessories:Flush Mount |
| Electrical Functions | Momentary |
