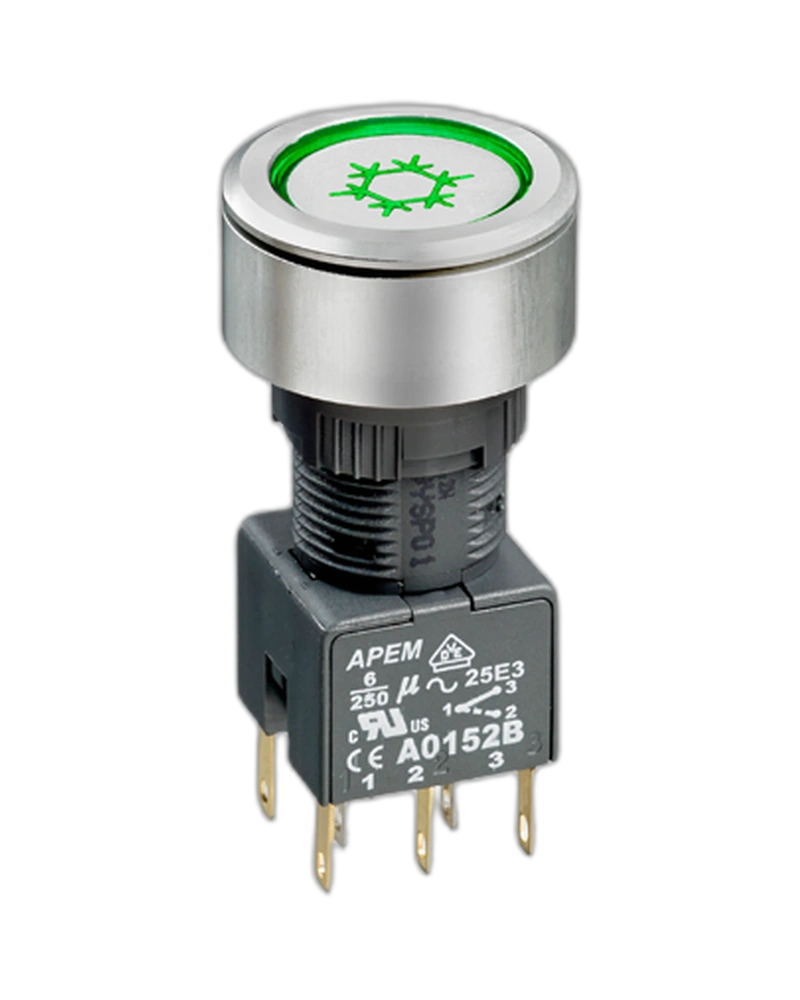

The APEM Industrial Controls Switches A1ICB0Y308L203 is a robust momentary switch designed for demanding industrial environments. With an operating temperature range of -20°C to +55°C, IP65 panel sealing, and an initial contact resistance of 10mΩ max at 1Amp 4VDC, this switch ensures reliable performance in harsh conditions. Ideal for applications requiring high electrical safety and durability.
The APEM Industrial Controls Switches A1ICB0Y308L203 is a high-reliability momentary switch engineered for industrial automation systems. This switch delivers exceptional performance in extreme environmental conditions with a wide operating temperature range from -20°C to +55°C, making it suitable for both cold and hot industrial settings. Its IP65 panel sealing provides robust protection against dust and water ingress, while the rear panel features IP40 sealing for basic environmental resistance. The switch maintains low contact resistance (10mΩ max at 1Amp 4VDC) and high insulation resistance (50MΩ min), ensuring minimal electrical interference and long-term stability. With a dielectric strength of 750V between open contacts and 5kV live to accessible parts, this switch meets stringent safety requirements for industrial applications.
The APEM Industrial Controls Switches A1ICB0Y308L203 operates within a voltage range of 10mA 5VAC min to 6Amp 250VAC and 6Amp 12VDC. It supports momentary operation, ensuring precise control without maintaining a continuous connection. The switch maintains a minimum initial contact resistance of 10mΩ at 1Amp 4VDC, critical for minimizing power loss and heat generation in high-current applications.
Engineered for extreme conditions, this switch operates effectively across a temperature range of -20°C to +55°C. The IP65 panel sealing provides comprehensive protection against dust and water, while the rear panel's IP40 rating ensures resistance to solid objects and limited water exposure. This combination makes the switch ideal for outdoor installations and harsh industrial environments.
With an electrical life of 50,000 cycles minimum, the switch is designed for long-term use in high-frequency applications. The dielectric strength of 750V between open contacts and 5kV live to accessible parts ensures robust electrical isolation, meeting stringent safety standards for industrial equipment. The switch also features a reliable LED lamp life of 60,000 hours at 75% luminosity, providing consistent performance over extended periods.
| Feature | Specification |
|---|---|
| Initial contact resistance | 10mΩ max at 1Amp 4VDC |
| Dielectric strength | 750V between open contacts, 5KV live to accessible Electrical life 50,000 cycles min Insulation : Class 2 Lamp life : LED, 60,000 hours to 75% relative luminosity filament, approx. 5000 hours,neon, approx. 10,000 hour |
| voltage rating | 10mA 5VAC min, 6Amp 250VAC, 6Amp 12VDC |
| Feature | Specification |
|---|---|
| Operating temperature | -20°C to +55°C Solder heat resistance : 350°C for 5 seconds |
| Feature | Specification |
|---|---|
| Sealing | Panel sealed to IP65, rear of panel IP40 |
| Electrical Functions | Momentary |
The APEMIndustrial Controls Switches A1ICB0Y308L203 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Initial contact resistance | 10mΩ max at 1Amp 4VDC |
| Dielectric strength | 750V between open contacts, 5KV live to accessible Electrical life 50,000 cycles min Insulation : Class 2 Lamp life : LED, 60,000 hours to 75% relative luminosity filament, approx. 5000 hours,neon, approx. 10,000 hour |
| voltage rating | 10mA 5VAC min, 6Amp 250VAC, 6Amp 12VDC |
| Feature | Specification |
|---|---|
| Operating temperature | -20°C to +55°C Solder heat resistance : 350°C for 5 seconds |
| Feature | Specification |
|---|---|
| Sealing | Panel sealed to IP65, rear of panel IP40 |
| Electrical Functions | Momentary |
