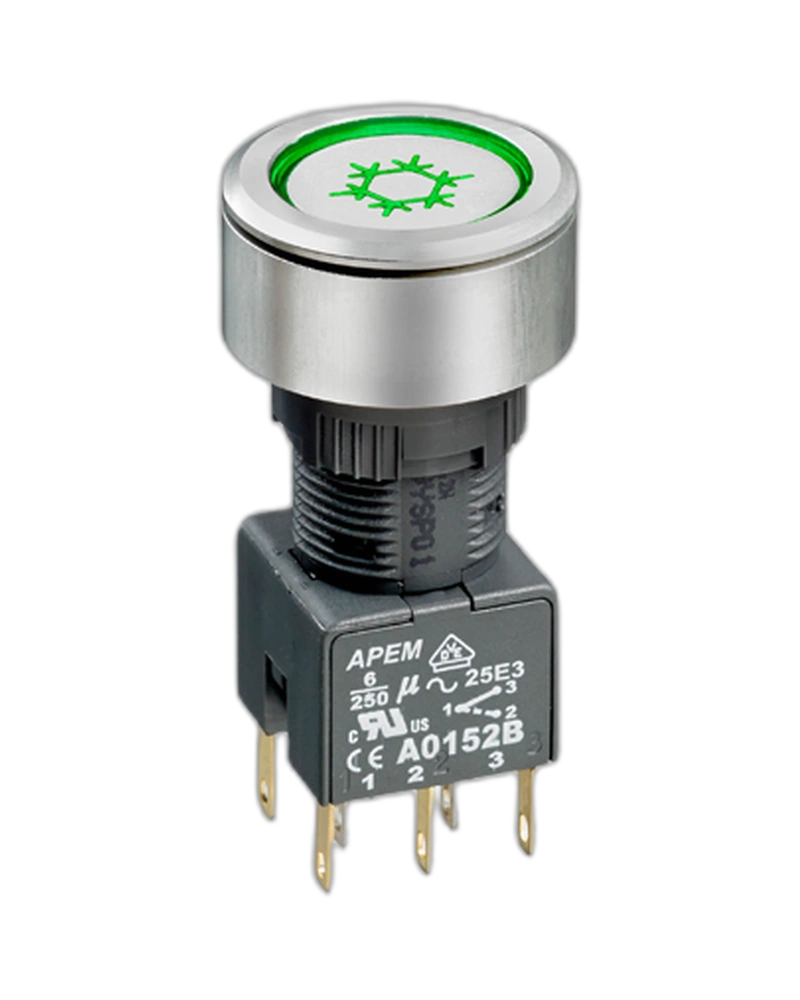

The APEM Industrial Controls Switches A1ICA1Y006K103 is a high-reliability autoswitch designed for industrial environments. This indicator switch features IP65 sealing, operates within -20°C to +55°C, and delivers 10mΩ max contact resistance at 1Amp 4VDC. Ideal for demanding applications requiring robust electrical performance and long service life.
The APEM Industrial Controls Switches A1ICA1Y006K103 is a precision-engineered indicator autoswitch designed for harsh industrial conditions. With IP65 protection against dust and water, this switch maintains reliable operation across extreme temperatures from -20°C to +55°C. Its low contact resistance (10mΩ max at 1Amp 4VDC) ensures minimal power loss during switching, while the 50MΩ insulation resistance and 750V dielectric strength provide robust electrical safety. The switch supports 50,000 operational cycles and features a flush mount design for seamless integration into control panels.
The A1ICA1Y006K103 delivers precise electrical performance with a voltage rating of 10mA 5VAC min and 6Amp 250VAC/12VDC. Its momentary operation ensures quick response without mechanical wear, while the 50,000 cycle life guarantees long-term reliability in high-traffic industrial systems. The switch maintains 60,000 hours of LED lamp life at 75% luminosity, providing consistent visual feedback.
Engineered for extreme conditions, this switch operates reliably from -20°C to +55°C and withstands soldering temperatures up to 350°C for 5 seconds. The IP65 rating ensures protection against dust ingress and water splashes, making it suitable for outdoor installations and wet environments without compromising performance.
The flush mount design integrates smoothly into control panels, reducing profile and minimizing space requirements. This indicator switch is specifically designed for use in industrial automation systems where compact, unobtrusive mounting is critical for maintaining clean panel layouts and ease of maintenance.
| Feature | Specification |
|---|---|
| Initial contact resistance | 10mΩ max at 1Amp 4VDC |
| Dielectric strength | 750V between open contacts, 5KV live to accessible Electrical life 50,000 cycles min Insulation : Class 2 Lamp life : LED, 60,000 hours to 75% relative luminosity filament, approx. 5000 hours,neon, approx. 10,000 hour |
| voltage rating | 10mA 5VAC min, 6Amp 250VAC, 6Amp 12VDC |
| Feature | Specification |
|---|---|
| Operating temperature | -20°C to +55°C Solder heat resistance : 350°C for 5 seconds |
| Feature | Specification |
|---|---|
| Sealing | IP65,Switch Type:indicator,Switch Block:indicator,Accessories:Flush Mount |
| Electrical Functions | Momentary |
The APEMIndustrial Controls Switches A1ICA1Y006K103 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Initial contact resistance | 10mΩ max at 1Amp 4VDC |
| Dielectric strength | 750V between open contacts, 5KV live to accessible Electrical life 50,000 cycles min Insulation : Class 2 Lamp life : LED, 60,000 hours to 75% relative luminosity filament, approx. 5000 hours,neon, approx. 10,000 hour |
| voltage rating | 10mA 5VAC min, 6Amp 250VAC, 6Amp 12VDC |
| Feature | Specification |
|---|---|
| Operating temperature | -20°C to +55°C Solder heat resistance : 350°C for 5 seconds |
| Feature | Specification |
|---|---|
| Sealing | IP65,Switch Type:indicator,Switch Block:indicator,Accessories:Flush Mount |
| Electrical Functions | Momentary |
