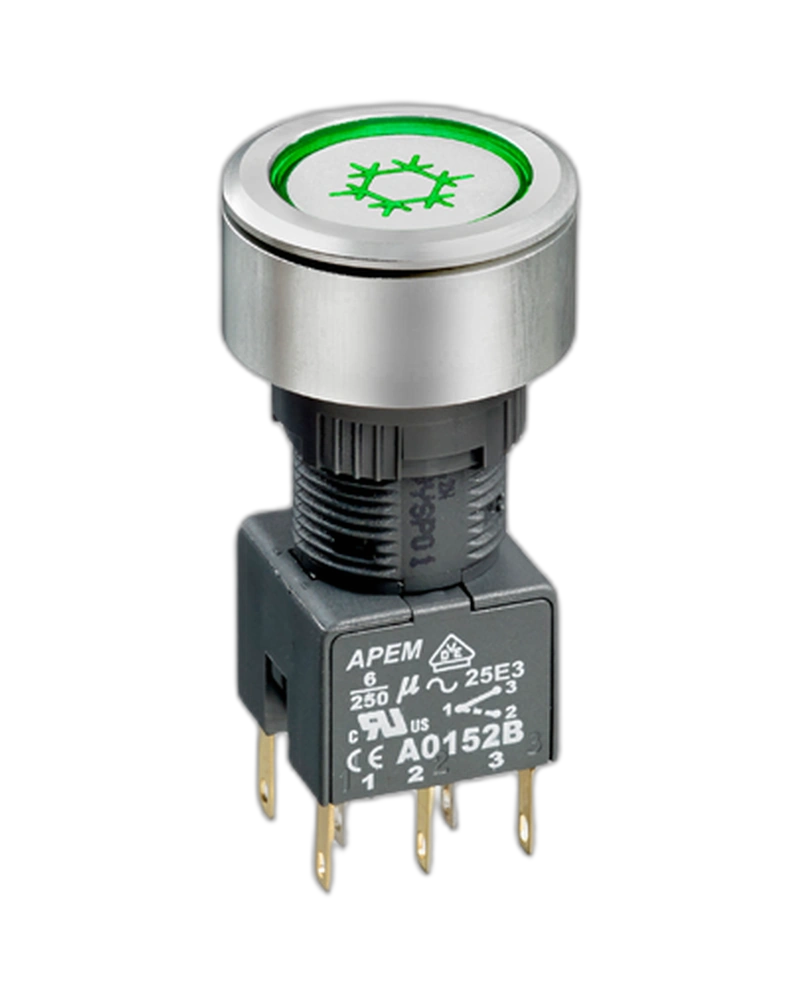

The APEM Industrial Controls Switches A1ICA1Y002K303 is a robust autoswitch designed for precise industrial control applications. This indicator switch features IP65 sealing, momentary operation, and operates within -20°C to +55°C temperatures. With an initial contact resistance of 10mΩ max at 1Amp 4VDC and 50MΩ insulation resistance, it ensures reliable performance in demanding environments.
The APEM Industrial Controls Switches A1ICA1Y002K303 is a high-reliability indicator autoswitch engineered for industrial automation systems. This switch delivers precise control with its momentary electrical function, designed to withstand harsh conditions through IP65 sealing and a wide operating temperature range of -20°C to +55°C. Its robust construction ensures consistent performance in demanding environments, with electrical specifications meeting stringent industry standards for safety and durability.
The A1ICA1Y002K303 operates within a voltage range of 10mA 5VAC min to 6Amp 250VAC and 6Amp 12VDC. It features a momentary electrical function with an initial contact resistance of 10mΩ max at 1Amp 4VDC and a dielectric strength of 750V between open contacts. The switch is rated for 50,000 cycles minimum electrical life and includes LED illumination with a lifespan of 60,000 hours to 75% relative luminosity.
Engineered for extreme conditions, this switch operates reliably across a temperature range of -20°C to +55°C. Its IP65 sealing provides protection against dust and water ingress, ensuring long-term functionality in industrial environments. The switch also withstands soldering temperatures up to 350°C for 5 seconds without compromising performance.
With an insulation resistance of 50MΩ min and dielectric strength of 750V between open contacts, the A1ICA1Y002K303 meets rigorous safety standards. The switch is designed for Class 2 insulation and includes a 50,000-cycle minimum electrical life, ensuring consistent performance in high-demand applications.
The flush mount design allows for seamless integration into industrial control panels. This indicator switch is ideal for applications requiring precise momentary control, such as machinery operation, process automation, and safety interlocks where reliable, low-resistance switching is critical.
| Feature | Specification |
|---|---|
| Initial contact resistance | 10mΩ max at 1Amp 4VDC |
| Dielectric strength | 750V between open contacts, 5KV live to accessible Electrical life 50,000 cycles min Insulation : Class 2 Lamp life : LED, 60,000 hours to 75% relative luminosity filament, approx. 5000 hours,neon, approx. 10,000 hour |
| voltage rating | 10mA 5VAC min, 6Amp 250VAC, 6Amp 12VDC |
| Feature | Specification |
|---|---|
| Operating temperature | -20°C to +55°C Solder heat resistance : 350°C for 5 seconds |
| Feature | Specification |
|---|---|
| Sealing | IP65,Switch Type:indicator,Switch Block:indicator,Accessories:Flush Mount |
| Electrical Functions | Momentary |
The APEMIndustrial Controls Switches A1ICA1Y002K303 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Initial contact resistance | 10mΩ max at 1Amp 4VDC |
| Dielectric strength | 750V between open contacts, 5KV live to accessible Electrical life 50,000 cycles min Insulation : Class 2 Lamp life : LED, 60,000 hours to 75% relative luminosity filament, approx. 5000 hours,neon, approx. 10,000 hour |
| voltage rating | 10mA 5VAC min, 6Amp 250VAC, 6Amp 12VDC |
| Feature | Specification |
|---|---|
| Operating temperature | -20°C to +55°C Solder heat resistance : 350°C for 5 seconds |
| Feature | Specification |
|---|---|
| Sealing | IP65,Switch Type:indicator,Switch Block:indicator,Accessories:Flush Mount |
| Electrical Functions | Momentary |
