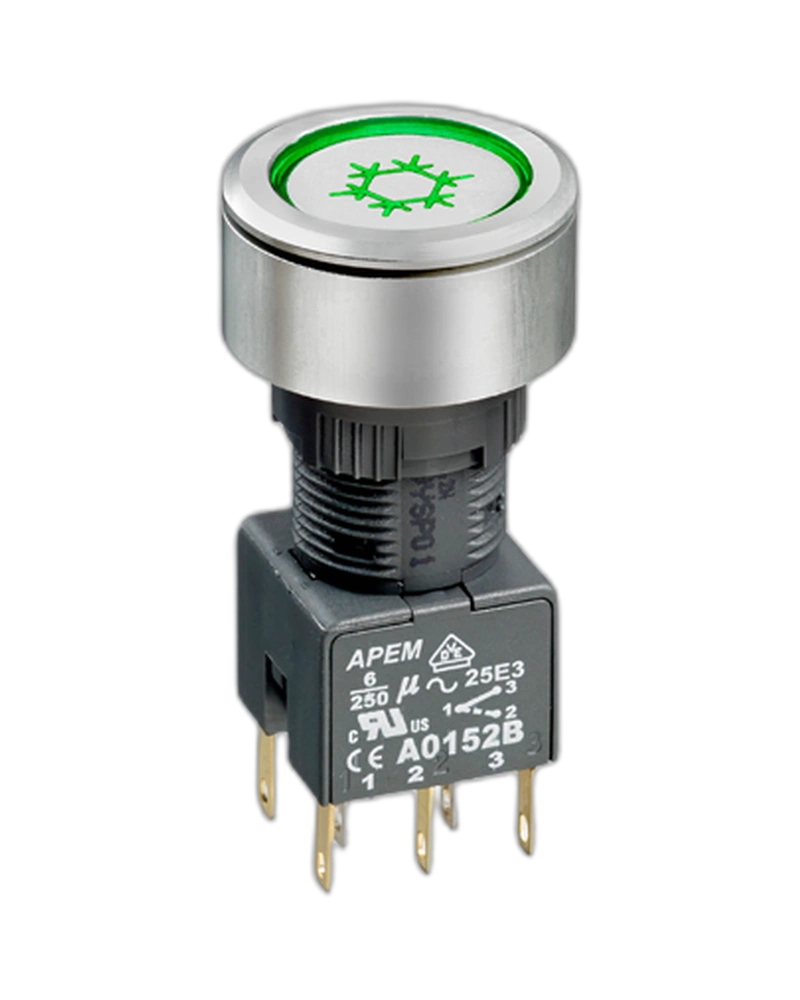

The APEM Industrial Controls Switches A1ICA0Y013A103 is a robust momentary autoswitch designed for demanding industrial environments. With IP65 panel sealing and IP40 rear protection, it operates reliably across -20°C to +55°C temperatures. This switch delivers low contact resistance (10mΩ max at 1A 4VDC), high insulation resistance (50MΩ min), and withstands 750V dielectric strength for safe electrical operation in critical applications.
The APEM Industrial Controls Switches A1ICA0Y013A103 is a high-reliability momentary autoswitch engineered for industrial automation systems. Its panel sealing to IP65 and rear protection to IP40 ensures exceptional dust and water resistance in harsh conditions, while its operating temperature range of -20°C to +55°C makes it suitable for extreme environments. This switch provides precise electrical performance with an initial contact resistance of 10mΩ max at 1A 4VDC, 50MΩ min insulation resistance, and 750V dielectric strength between open contacts. The product is rated for 50,000 cycles with a 6A 250VAC voltage rating and 6A 12VDC current capacity, ensuring long-term durability in industrial control applications.
The APEM Industrial Controls Switches A1ICA0Y013A103 operates within a voltage range of 10mA 5VAC min to 6A 250VAC and 6A 12VDC. It features momentary electrical function with a dielectric strength of 750V between open contacts and 5KV live to accessible. The switch maintains an initial contact resistance of 10mΩ max at 1A 4VDC and provides 50MΩ min insulation resistance for reliable electrical performance.
Engineered for extreme conditions, this switch operates across a temperature range of -20°C to +55°C. Its panel sealing to IP65 and rear protection to IP40 ensures robust resistance to dust and water ingress, making it ideal for outdoor installations and harsh industrial environments.
With an electrical life of 50,000 cycles minimum, the APEM Industrial Controls Switches A1ICA0Y013A103 delivers long-term performance in demanding applications. The switch also withstands solder heat resistance of 350°C for 5 seconds, ensuring compatibility with high-temperature soldering processes during manufacturing and maintenance.
| Feature | Specification |
|---|---|
| Initial contact resistance | 10mΩ max at 1Amp 4VDC |
| Dielectric strength | 750V between open contacts, 5KV live to accessible Electrical life 50,000 cycles min Insulation : Class 2 Lamp life : LED, 60,000 hours to 75% relative luminosity filament, approx. 5000 hours,neon, approx. 10,000 hour |
| voltage rating | 10mA 5VAC min, 6Amp 250VAC, 6Amp 12VDC |
| Feature | Specification |
|---|---|
| Sealing | Panel sealed to IP65, rear of panel IP40 |
| Feature | Specification |
|---|---|
| Operating temperature | -20°C to +55°C Solder heat resistance : 350°C for 5 seconds |
| Feature | Specification |
|---|---|
| Electrical Functions | Momentary |
The APEMIndustrial Controls Switches A1ICA0Y013A103 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Initial contact resistance | 10mΩ max at 1Amp 4VDC |
| Dielectric strength | 750V between open contacts, 5KV live to accessible Electrical life 50,000 cycles min Insulation : Class 2 Lamp life : LED, 60,000 hours to 75% relative luminosity filament, approx. 5000 hours,neon, approx. 10,000 hour |
| voltage rating | 10mA 5VAC min, 6Amp 250VAC, 6Amp 12VDC |
| Feature | Specification |
|---|---|
| Sealing | Panel sealed to IP65, rear of panel IP40 |
| Feature | Specification |
|---|---|
| Operating temperature | -20°C to +55°C Solder heat resistance : 350°C for 5 seconds |
| Feature | Specification |
|---|---|
| Electrical Functions | Momentary |
