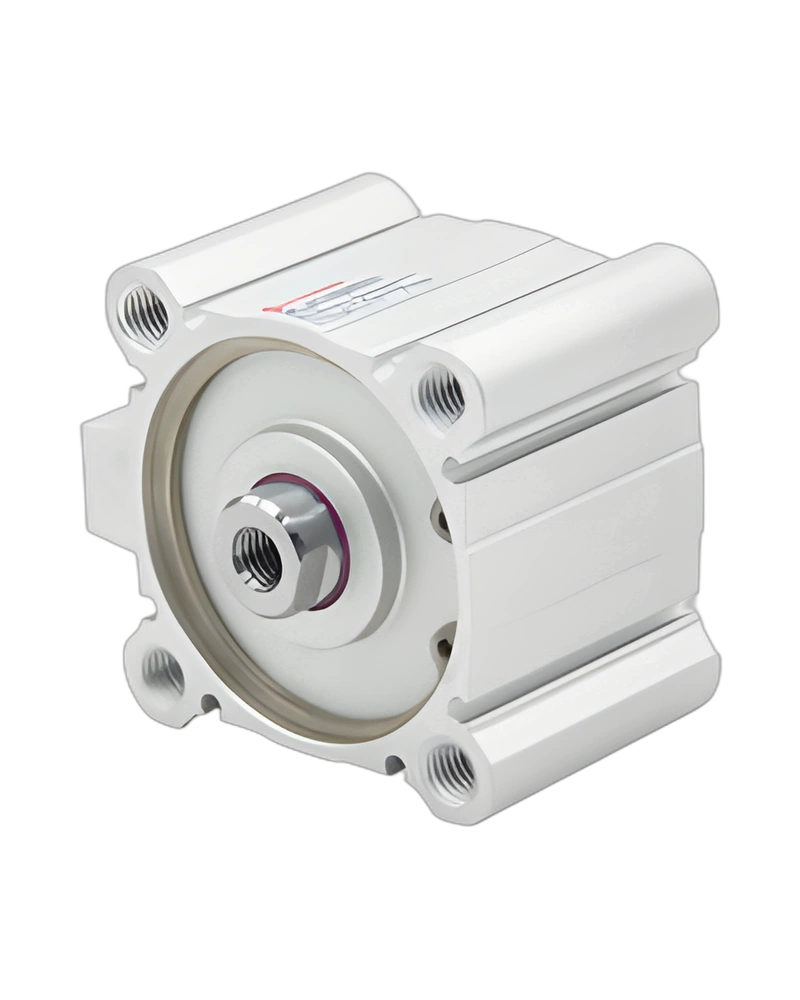

CM-713025-MXB-45 is a NORGREN configuration represented by IMI Norgren Guardian Compact CM/71 Series - CM/713025/MXB/45. This product entry presents the listed configuration and model-specific technical information for selection and comparison.
The selected configuration is identified by IMI Norgren Guardian Compact CM/71 Series - CM/713025/MXB/45. The principal recorded product data includes Media: Compressed air. Standard: ISO 15524. Port Size: M5. Stroke Length: 45 mm. Operating Temperature: -5 ... 70 °C, 23 ... 158 °F. Operating Pressure: 0.5 ... 10 bar, 7.25 ... 145 psi. Cushioning: Buffer cushioning. Materials - Barrel: Anodized aluminum.
Materials - Piston Head Seals: Nitrile rubber (NBR). Materials - Piston Rod: Hard chrome plated steel. Range: CM/710000. Materials: cable Characteristics M/50/LSU/5V ● 5 m -20 to +80 °C PVC - M/50/LSU/CP ● 0,3 m with plug M8 -20 to +80 °C PVC - M/50/LSU/5U ● 5 m -20 to +80 °C PUR cable very flexible Model LED (Am- arelo) Cable length /. Materials: cable Ex identification M/50/EAP/5V ● 5 m PNP -20 to +80 °C PVC - M/50/EAP/CP ● 0,3 m with plug M8 PNP -20 to +80 °C PVC - Model LED (Am- arelo). Materials: cable Ex identification M/50/IOP/5V ● 5 m PNP -20 to +80 °C PVC - M/50/IOP/CP ● 0,3 m with plug M8 PNP -20 to +80 °C PVC - Model LED (Yellow) Cable length / plug - - - M/P73001/5 M/P73001/10 M/P73002/5. Materials: cable Characteristics QM/32/2 ● 2 m -20 … +80°C PVC - QM/32/P ● M12 Plug -20 … +80°C - - Model Diameter Atuador QM/31/032/22 Ø32 … 63 QM/31/080/22 Ø80 … 125 QM/31/160/22 Ø160 and 200 QM/31/250/22 Ø250. Gauge: ' B ' VA CUUM PORT (2X) AUXILIARY PORTS P R S 3X Ø ' D '. Gauge: P R F J K V U T. Materials: Scale.
Title: CM/713025/MXB/45 | Guardian compact single acting cylinder, 25mm diameter, 45mm stroke URL Source:
The listed product specifies Media as Compressed air. This stated value forms part of the model-specific product information.
For this configuration, Standard is ISO 15524. The value is retained as part of the product definition used for catalogue selection.
The product record includes Port Size: M5. This is a configuration-specific value for the listed NORGREN model.
| Specification | Value |
|---|---|
| Media | Compressed air |
| Standard | ISO 15524 |
| Port Size | M5 |
| Stroke Length | 45 mm |
| Operating Temperature | -5 ... 70 °C, 23 ... 158 °F |
| Operating Pressure | 0.5 ... 10 bar, 7.25 ... 145 psi |
| Cushioning | Buffer cushioning |
| Materials - Barrel | Anodized aluminum |
| Materials - Piston Head Seals | Nitrile rubber (NBR) |
| Materials - Piston Rod | Hard chrome plated steel |
| Range | CM/710000 |
| Materials | cable Characteristics M/50/LSU/5V ● 5 m -20 to +80 °C PVC - M/50/LSU/CP ● 0,3 m with plug M8 -20 to +80 °C PVC - M/50/LSU/5U ● 5 m -20 to +80 °C PUR cable very flexible Model LED (Am- arelo) Cable length / |
| Materials | cable Ex identification M/50/EAP/5V ● 5 m PNP -20 to +80 °C PVC - M/50/EAP/CP ● 0,3 m with plug M8 PNP -20 to +80 °C PVC - Model LED (Am- arelo) |
| Materials | cable Ex identification M/50/IOP/5V ● 5 m PNP -20 to +80 °C PVC - M/50/IOP/CP ● 0,3 m with plug M8 PNP -20 to +80 °C PVC - Model LED (Yellow) Cable length / plug - - - M/P73001/5 M/P73001/10 M/P73002/5 |
| Materials | cable Characteristics QM/32/2 ● 2 m -20 … +80°C PVC - QM/32/P ● M12 Plug -20 … +80°C - - Model Diameter Atuador QM/31/032/22 Ø32 … 63 QM/31/080/22 Ø80 … 125 QM/31/160/22 Ø160 and 200 QM/31/250/22 Ø250 |
| Gauge | ' B ' VA CUUM PORT (2X) AUXILIARY PORTS P R S 3X Ø ' D ' |
| Gauge | P R F J K V U T |
| Materials | Scale |
