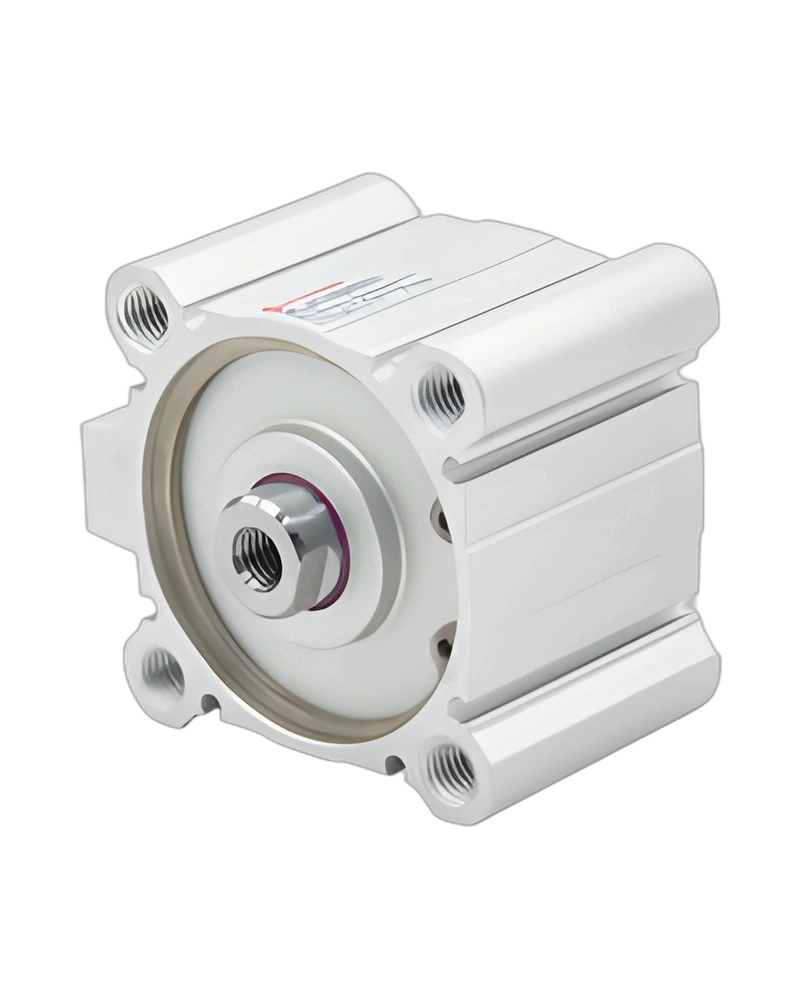

The NORGREN CM-713016-MA-15 is a compact single-acting air cylinder engineered for precision control in industrial automation. With a 16mm diameter and 15mm stroke length, it delivers high performance while maintaining stability and reliability in demanding environments. This cylinder is designed to operate within a temperature range of -5°C to 70°C and pressure range of 0.5 to 10 bar (7.25 to 145 psi), making it suitable for a wide range of applications where space efficiency and precision are critical.
The cylinder features anodized aluminum for the barrel, ensuring durability and resistance to corrosion. The piston head seals are made of nitrile rubber (NBR), providing excellent sealing properties and flexibility under varying pressure conditions. The piston rod is hard chrome plated steel, which enhances wear resistance and reduces friction during operation. These materials collectively ensure long service life and consistent performance in industrial settings.
Operating temperature ranges from -5°C to 70°C (23°F to 158°F), allowing the cylinder to function effectively in both cold and hot environments. The maximum operating pressure is 10 bar (145 psi), which is suitable for most industrial pneumatic systems. The cylinder is designed to handle compressed air media, ensuring clean and efficient operation without contamination risks.
The CM-713016-MA-15 includes buffer cushioning to minimize impact forces during rapid movement, reducing mechanical stress on connected components. Additionally, it features magnetic switches that can be mounted flush with the profile, enabling precise position detection without adding external bulk to the system. This combination of features ensures smooth operation and reliable feedback in automated processes.
The cylinder conforms to ISO 15524 for bore size specifications (ø 32 to 100 mm), ensuring compatibility with standard mounting practices. This standardization facilitates easy integration into existing systems and simplifies maintenance procedures. The product also meets the requirements for high-performance applications, with a focus on stability and reliability in industrial environments.
| Specification | Value |
|---|---|
| Media | Compressed air |
| Standard | ISO 15524 |
| Port Size | M5 |
| Stroke Length | 15 mm |
| Operating Temperature | -5 ... 70 °C, 23 ... 158 °F |
| Operating Pressure | 0.5 ... 10 bar, 7.25 ... 145 psi |
| Cushioning | Buffer cushioning |
| Materials - Barrel | Anodized aluminum |
| Materials - Piston Head Seals | Nitrile rubber (NBR) |
| Materials - Piston Rod | Hard chrome plated steel |
| Range | CM/710000 |
| Materials | cable Characteristics M/50/LSU/5V ● 5 m -20 to +80 °C PVC - M/50/LSU/CP ● 0,3 m with plug M8 -20 to +80 °C PVC - M/50/LSU/5U ● 5 m -20 to +80 °C PUR cable very flexible Model LED (Am- arelo) Cable length / |
| Materials | cable Ex identification M/50/EAP/5V ● 5 m PNP -20 to +80 °C PVC - M/50/EAP/CP ● 0,3 m with plug M8 PNP -20 to +80 °C PVC - Model LED (Am- arelo) |
| Materials | cable Ex identification M/50/IOP/5V ● 5 m PNP -20 to +80 °C PVC - M/50/IOP/CP ● 0,3 m with plug M8 PNP -20 to +80 °C PVC - Model LED (Yellow) Cable length / plug - - - M/P73001/5 M/P73001/10 M/P73002/5 |
| Materials | cable Characteristics QM/32/2 ● 2 m -20 … +80°C PVC - QM/32/P ● M12 Plug -20 … +80°C - - Model Diameter Atuador QM/31/032/22 Ø32 … 63 QM/31/080/22 Ø80 … 125 QM/31/160/22 Ø160 and 200 QM/31/250/22 Ø250 |
| Gauge | ' B ' VA CUUM PORT (2X) AUXILIARY PORTS P R S 3X Ø ' D ' |
| Gauge | P R F J K V U T |
| Materials | Scale |
