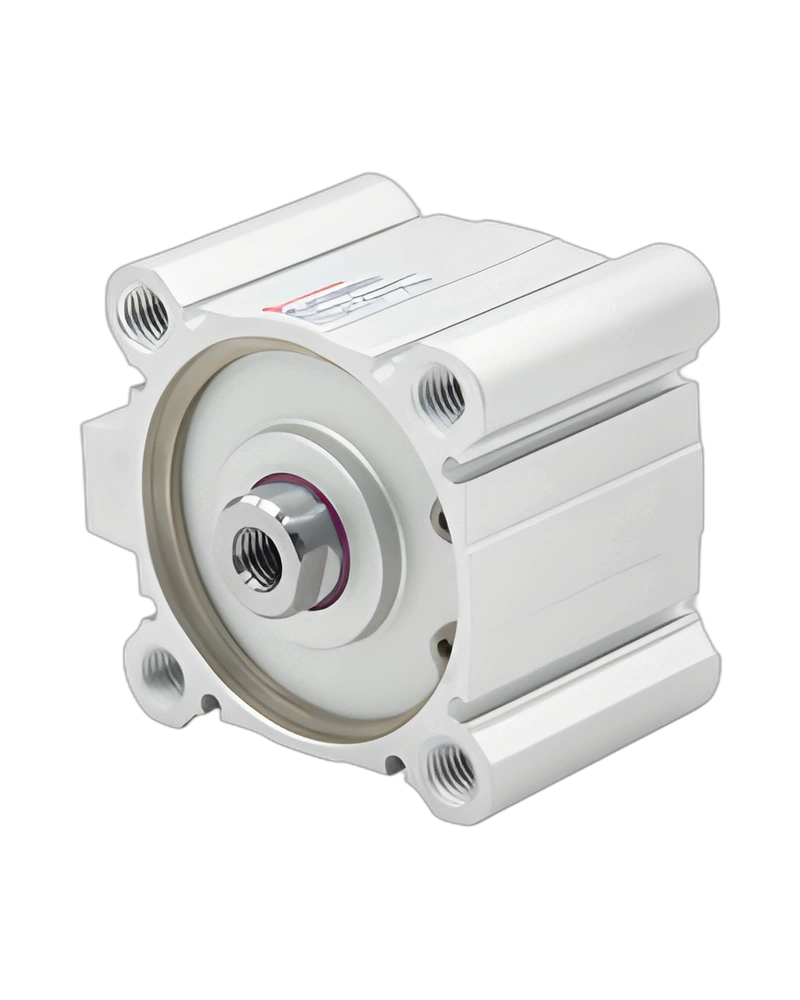

CM-712016-MXA-15 is a NORGREN IMI Norgren Guardian Compact CM/71 Series - CM/712016/MXA/15 configuration.
Media: Compressed air. Standard: ISO 15524. Port Size: M5. Stroke Length: 15 mm. Operating Temperature: -5 ... 70 °C, 23 ... 158 °F. Operating Pressure: 0.5 ... 10 bar, 7.25 ... 145 psi. Cushioning: Buffer cushioning. Theoretical Force (6 bar): 121 N. Materials - Barrel: Anodized aluminum. Materials - Piston Head Seals: Nitrile rubber (NBR). Materials - Piston Rod: Hard chrome plated steel. Country of Origin: China. Range: CM/710000. Materials: cable Characteristics M/50/LSU/5V ● 5 m -20 to +80 °C PVC - M/50/LSU/CP ● 0,3 m with plug M8 -20 to +80 °C PVC - M/50/LSU/5U ● 5 m -20 to +80 °C PUR cable very flexible Model LED (Am- arelo) Cable length /. Materials: cable Ex identification M/50/EAP/5V ● 5 m PNP -20 to +80 °C PVC - M/50/EAP/CP ● 0,3 m with plug M8 PNP -20 to +80 °C PVC - Model LED (Am- arelo). Materials: cable Ex identification M/50/IOP/5V ● 5 m PNP -20 to +80 °C PVC - M/50/IOP/CP ● 0,3 m with plug M8 PNP -20 to +80 °C PVC - Model LED (Yellow) Cable length / plug - - - M/P73001/5 M/P73001/10 M/P73002/5. Materials: cable Characteristics QM/32/2 ● 2 m -20 … +80°C PVC - QM/32/P ● M12 Plug -20 … +80°C - - Model Diameter Atuador QM/31/032/22 Ø32 … 63 QM/31/080/22 Ø80 … 125 QM/31/160/22 Ø160 and 200 QM/31/250/22 Ø250. Gauge: ' B ' VA CUUM PORT (2X) AUXILIARY PORTS P R S 3X Ø ' D '. Gauge: P R F J K V U T. Materials: Scale.
The selected configuration specifies Media as Compressed air. This value is part of the product definition and should be considered together with the other stated configuration details when selecting this model.
For this configuration, Standard is ISO 15524. The product content retains this value exactly as supplied for the selected model and does not substitute a value from another variant.
The product specification includes Port Size: M5. This is one of the technical characteristics that defines the configuration presented on this product page.
The stated Stroke Length is 15 mm, forming part of the technical information associated with this exact product configuration.
| Specification | Value |
|---|---|
| Media | Compressed air |
| Standard | ISO 15524 |
| Port Size | M5 |
| Stroke Length | 15 mm |
| Operating Temperature | -5 ... 70 °C, 23 ... 158 °F |
| Operating Pressure | 0.5 ... 10 bar, 7.25 ... 145 psi |
| Cushioning | Buffer cushioning |
| Theoretical Force (6 bar) | 121 N |
| Materials - Barrel | Anodized aluminum |
| Materials - Piston Head Seals | Nitrile rubber (NBR) |
| Materials - Piston Rod | Hard chrome plated steel |
| Country of Origin | China |
| Range | CM/710000 |
| Materials | cable Characteristics M/50/LSU/5V ● 5 m -20 to +80 °C PVC - M/50/LSU/CP ● 0,3 m with plug M8 -20 to +80 °C PVC - M/50/LSU/5U ● 5 m -20 to +80 °C PUR cable very flexible Model LED (Am- arelo) Cable length / |
| Materials | cable Ex identification M/50/EAP/5V ● 5 m PNP -20 to +80 °C PVC - M/50/EAP/CP ● 0,3 m with plug M8 PNP -20 to +80 °C PVC - Model LED (Am- arelo) |
| Materials | cable Ex identification M/50/IOP/5V ● 5 m PNP -20 to +80 °C PVC - M/50/IOP/CP ● 0,3 m with plug M8 PNP -20 to +80 °C PVC - Model LED (Yellow) Cable length / plug - - - M/P73001/5 M/P73001/10 M/P73002/5 |
| Materials | cable Characteristics QM/32/2 ● 2 m -20 … +80°C PVC - QM/32/P ● M12 Plug -20 … +80°C - - Model Diameter Atuador QM/31/032/22 Ø32 … 63 QM/31/080/22 Ø80 … 125 QM/31/160/22 Ø160 and 200 QM/31/250/22 Ø250 |
| Gauge | ' B ' VA CUUM PORT (2X) AUXILIARY PORTS P R S 3X Ø ' D ' |
| Gauge | P R F J K V U T |
| Materials | Scale |
