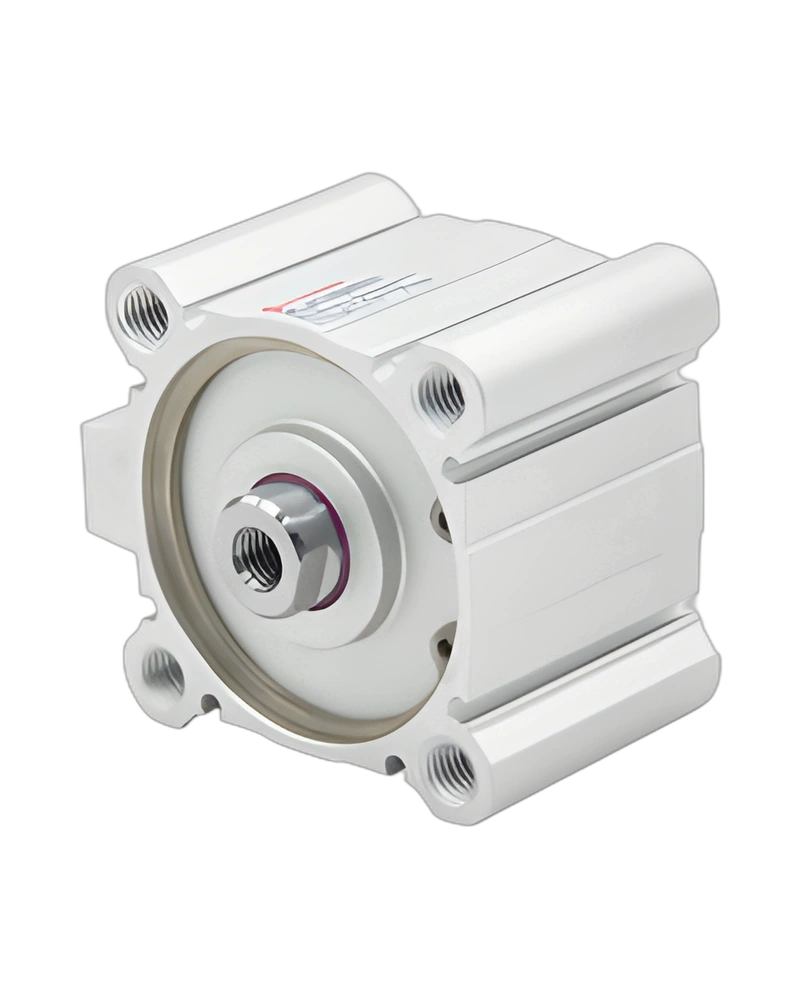

The NORGREN CM-711032-MXB-10 is a compact single-acting air cylinder engineered for precision control in industrial automation. With a 32mm diameter and 10mm stroke length, it delivers high performance while maintaining minimal space requirements. This cylinder operates within a temperature range of -5°C to 70°C and pressure range of 0.5 to 10 bar (7.25 to 145 psi), making it suitable for a wide range of applications where space efficiency and reliability are critical.
The cylinder features anodized aluminum for the barrel, ensuring durability and resistance to corrosion. The piston head seals are made of nitrile rubber (NBR), providing excellent sealing properties for compressed air applications. The piston rod is hard chrome plated steel, offering high wear resistance and smooth operation. These materials collectively ensure long service life and consistent performance in demanding environments.
Operating temperature ranges from -5°C to 70°C (23°F to 158°F), and the cylinder handles pressures between 0.5 and 10 bar (7.25 to 145 psi). The compact design with a 10mm stroke length makes it ideal for applications requiring precise positioning without excessive space consumption. The cylinder includes buffer cushioning to minimize impact forces during rapid movement, enhancing safety and longevity.
Compliant with ISO 15524 for bore sizes from 32mm to 100mm, the CM-711032-MXB-10 ensures standardized mounting dimensions. The cylinder features 1/8" ISO G port sizes for connections, allowing seamless integration with standard pneumatic systems. Magnetic switches can be mounted flush with the profile, providing a clean and compact installation solution for automated control systems.
The CM-711032-MXB-10 includes magnetic piston and mechanical cushioning for precise positioning and reduced shock during operation. The cylinder is designed for use with compressed air media and supports a range of cable options including PVC and PUR for flexible connections. These features ensure reliable performance in industrial settings where precision and durability are essential.
| Specification | Value |
|---|---|
| Media | Compressed air |
| Standard | ISO 15524 |
| Port Size | 1/8" ISO G |
| Stroke Length | 10 mm |
| Operating Temperature | -5 ... 70 °C, 23 ... 158 °F |
| Operating Pressure | 0.5 ... 10 bar, 7.25 ... 145 psi |
| Cushioning | Buffer cushioning |
| Materials - Barrel | Anodized aluminum |
| Materials - Piston Head Seals | Nitrile rubber (NBR) |
| Materials - Piston Rod | Hard chrome plated steel |
| Range | CM/710000 |
| Materials | cable Characteristics M/50/LSU/5V ● 5 m -20 to +80 °C PVC - M/50/LSU/CP ● 0,3 m with plug M8 -20 to +80 °C PVC - M/50/LSU/5U ● 5 m -20 to +80 °C PUR cable very flexible Model LED (Am- arelo) Cable length / |
| Materials | cable Ex identification M/50/EAP/5V ● 5 m PNP -20 to +80 °C PVC - M/50/EAP/CP ● 0,3 m with plug M8 PNP -20 to +80 °C PVC - Model LED (Am- arelo) |
| Materials | cable Ex identification M/50/IOP/5V ● 5 m PNP -20 to +80 °C PVC - M/50/IOP/CP ● 0,3 m with plug M8 PNP -20 to +80 °C PVC - Model LED (Yellow) Cable length / plug - - - M/P73001/5 M/P73001/10 M/P73002/5 |
| Materials | cable Characteristics QM/32/2 ● 2 m -20 … +80°C PVC - QM/32/P ● M12 Plug -20 … +80°C - - Model Diameter Atuador QM/31/032/22 Ø32 … 63 QM/31/080/22 Ø80 … 125 QM/31/160/22 Ø160 and 200 QM/31/250/22 Ø250 |
| Gauge | ' B ' VA CUUM PORT (2X) AUXILIARY PORTS P R S 3X Ø ' D ' |
| Gauge | P R F J K V U T |
| Materials | Scale |
