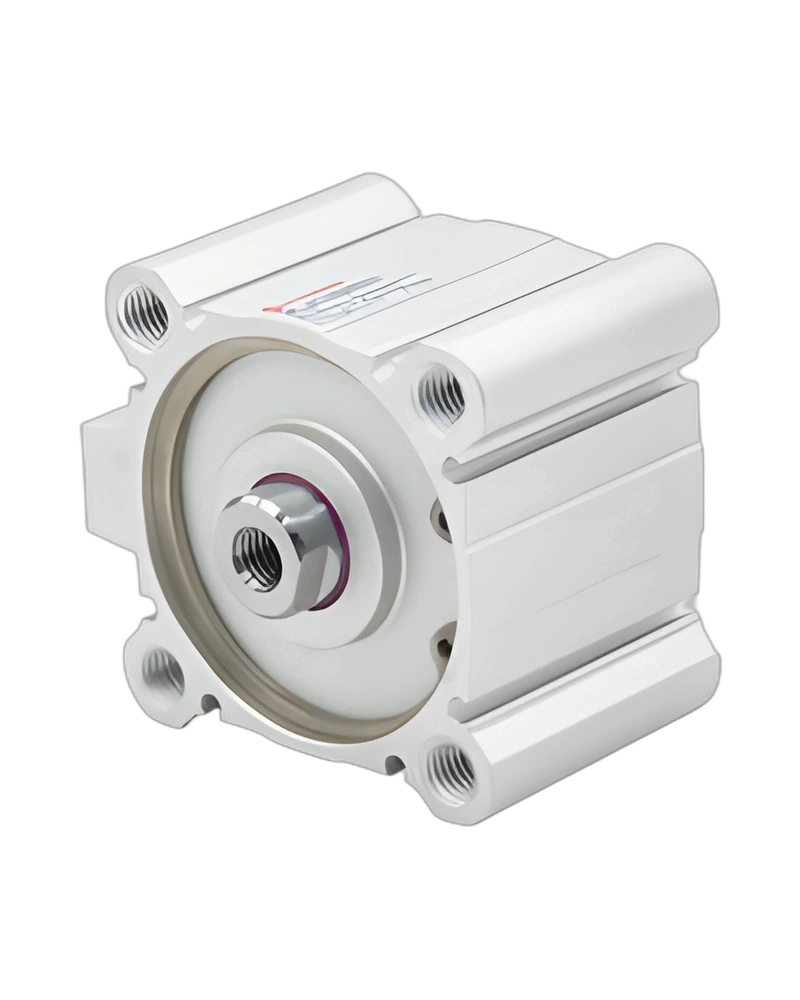

The CM-711020-MA-15 adheres to ISO 15524 standards and includes buffer cushioning to minimize shock during operation. The cylinder is designed with a 15 mm stroke length, ensuring precise movement for applications requiring controlled motion. The M5 port size allows for easy integration with standard fittings, while the anodized aluminum barrel provides robust construction and resistance to corrosion.
The cylinder's barrel is made from anodized aluminum, which enhances its strength and resistance to environmental factors. The piston head seals are constructed from nitrile rubber (NBR), offering excellent resistance to oils and chemicals while maintaining flexibility. The piston rod features a hard chrome plating for wear resistance and corrosion protection, ensuring long-term reliability in high-pressure environments.
Operating temperatures range from -5°C to 70°C (23°F to 158°F), allowing the cylinder to function effectively in both cold and hot industrial settings. The pressure range of 0.5 to 10 bar (7.25 to 145 psi) ensures compatibility with a variety of compressed air systems, from low-pressure applications to high-pressure industrial processes.
The CM-711020-MA-15 includes buffer cushioning to reduce impact forces during extension and retraction, improving the longevity of the cylinder and reducing the risk of damage to connected components. The model also supports multiple cable options, including PVC and PUR variants, with lengths ranging from 0.3 meters to 5 meters, suitable for different installation requirements.
| Specification | Value |
|---|---|
| Media | Compressed air |
| Standard | ISO 15524 |
| Port Size | M5 |
| Stroke Length | 15 mm |
| Operating Temperature | -5 ... 70 °C, 23 ... 158 °F |
| Operating Pressure | 0.5 ... 10 bar, 7.25 ... 145 psi |
| Cushioning | Buffer cushioning |
| Materials - Barrel | Anodized aluminum |
| Materials - Piston Head Seals | Nitrile rubber (NBR) |
| Materials - Piston Rod | Hard chrome plated steel |
| Range | CM/710000 |
| Materials | cable Characteristics M/50/LSU/5V ● 5 m -20 to +80 °C PVC - M/50/LSU/CP ● 0,3 m with plug M8 -20 to +80 °C PVC - M/50/LSU/5U ● 5 m -20 to +80 °C PUR cable very flexible Model LED (Am- arelo) Cable length / |
| Materials | cable Ex identification M/50/EAP/5V ● 5 m PNP -20 to +80 °C PVC - M/50/EAP/CP ● 0,3 m with plug M8 PNP -20 to +80 °C PVC - Model LED (Am- arelo) |
| Materials | cable Ex identification M/50/IOP/5V ● 5 m PNP -20 to +80 °C PVC - M/50/IOP/CP ● 0,3 m with plug M8 PNP -20 to +80 °C PVC - Model LED (Yellow) Cable length / plug - - - M/P73001/5 M/P73001/10 M/P73002/5 |
| Materials | cable Characteristics QM/32/2 ● 2 m -20 … +80°C PVC - QM/32/P ● M12 Plug -20 … +80°C - - Model Diameter Atuador QM/31/032/22 Ø32 … 63 QM/31/080/22 Ø80 … 125 QM/31/160/22 Ø160 and 200 QM/31/250/22 Ø250 |
| Gauge | ' B ' VA CUUM PORT (2X) AUXILIARY PORTS P R S 3X Ø ' D ' |
| Gauge | P R F J K V U T |
| Materials | Scale |
