The ELETTROTEC IF1V1/IM10 VisuIl Flow Indicator is a precision flow measurement device designed for industrial applications. With a temperature range of -10°C to +100°C, it features FKM seals (up to +130°C on request) and operates within a max flow rate of 60 LPM. This aluminium anodized flow indicator is ideal for monitoring liquid flow in pipelines with a max pressure of 15 bar and a 15° maximum tilt tolerance.
The ELETTROTEC IF1V1/I VisuIl Flow Indicator is a robust, high-precision flow measurement device engineered for demanding industrial environments. This flow indicator provides visual confirmation of liquid flow rates within a wide operational range, featuring a temperature tolerance of -10°C to +100°C and compatibility with FKM seals rated up to +130°C (on request). Its compact design with anodized aluminium construction ensures durability and resistance to harsh conditions, while the 15° maximum tilt tolerance allows for flexible installation without compromising accuracy. The IF1V1/IM10 - VisuIl Flow indicItor is specifically designed for continuous monitoring in pipelines where precise flow rate visualization is critical.
The IF1V1/I VisuIl Flow Indicator is available in multiple configurations to suit varying industrial needs. Key specifications include: - Temperature range: -10°C to +100°C - Max flow rate: 60 LPM (H0 2) - Max pressure: 15 bar - Dimensions: 136 mm (length) x 40 mm (width) - Material: Anodized aluminium (IF1V1/A) or nickel-plated brass (IF1V1/O) - Max tilt angle: 15° - FKM seals (up to +130°C on request)
ELETTROTEC offers several variants of the IF1V1/I series for different flow measurement requirements. The IF1V1/A model (0.1-1 LPM) is suitable for low-flow applications, while the IF5V60/A (5-60 LPM) handles higher flow rates. These variants are designed for use in water treatment, chemical processing, and oil and gas industries where precise flow monitoring is essential. The choice of material (aluminium or nickel-plated brass) depends on environmental conditions and corrosion resistance needs.
The IF1V1/I flow indicator is designed for straightforward installation in pipelines with a 15° maximum tilt tolerance. Its compact size (136x40 mm) and standard G1/4" connection make it suitable for both small and medium-diameter pipes. The IF1V1/IM10 - VisuIl Flow indicItor is compatible with a wide range of fluids, including water, oils, and chemicals, as long as the temperature and pressure conditions remain within the specified limits.
The IF1V1/IM10 - VisuIl Flow indicItor - VisuIl Flow indicItor is an industrial Flow. Selection should be based on the documented characteristics and the requirements of the intended application.
| Feature | Specification |
|---|---|
| temperature range -10°C...+100°C | temperature range -10°C to +100°C |
| FKM seal +130°C (on request) | FKM seal +130°C (on request) |
| IF1 | V 16 A M7 |
| temperature range -10°C...+100°C | temperature range -10°C to +100°C |
| FKM seal +130°C (on request) | FKM seal +130°C (on request) |
| IF1V1/A | 0.1 - 1 136 40 G1/4” Anodized aluminium Anodized aluminium 15 0.60 |

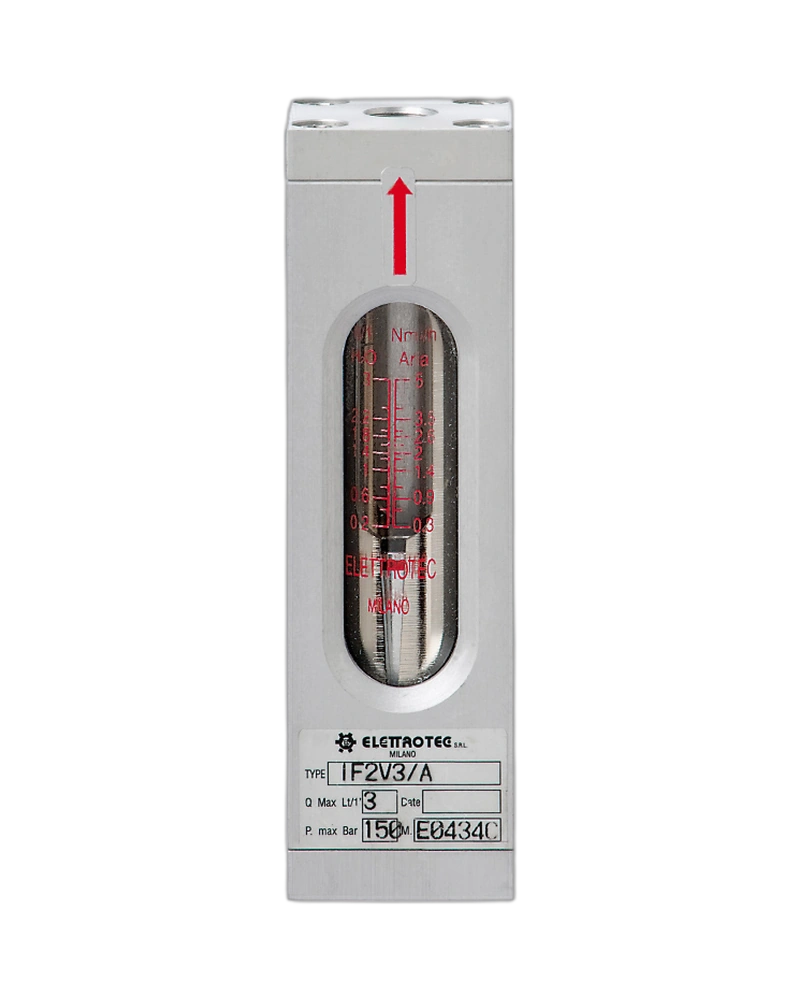

| IF2V3/A | 0.2 - 3 136 40 G1/4” 0.60 |
| IF3V6/A | 1 - 6 136 40 G1/4” 0.60 |
| IF4V16/A | 2 - 16 167 40 G1/2” 0.60 |
| IF5V60/A | 5 - 60 190 50 G1” 1.15 |
| IF1V1/O | 0.1 - 1 136 40 G1/4” Nickel-plated brass Nickel-plated brass 15 1.25 |
