Product Overview

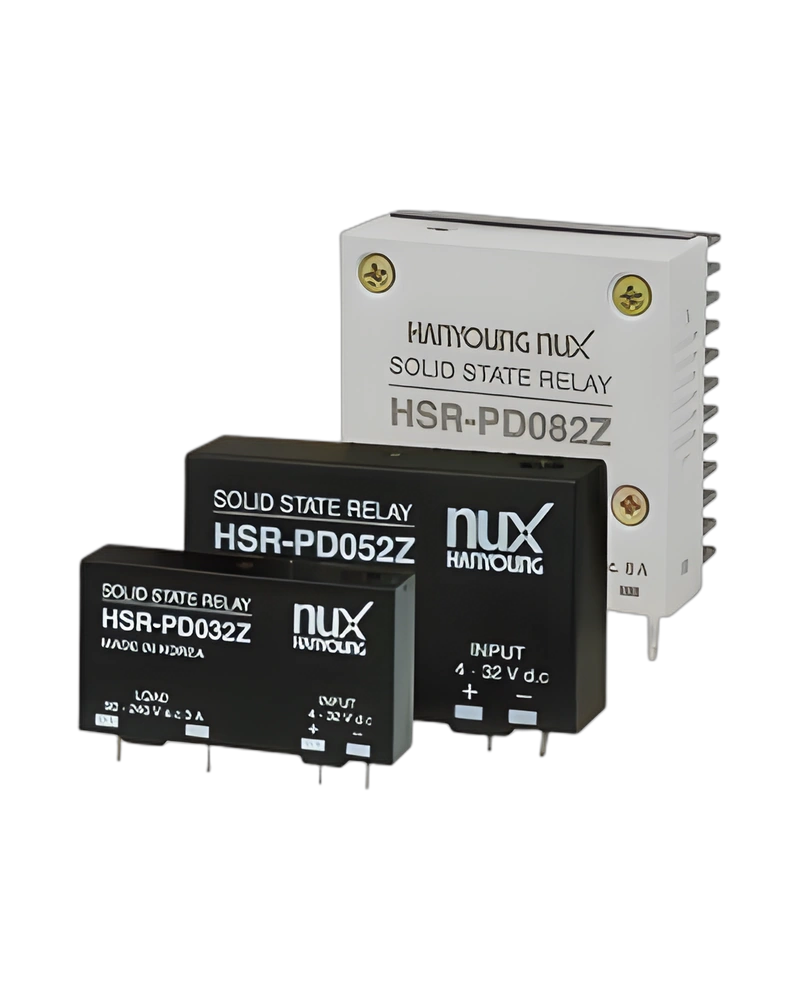

HSR-PD is a Hanyoung NUX solid state relay for electronic switching of electrical loads. The available configurations are identified by the model options, load voltage and rated load current, with model information of HSR- PD032Z | HSR- PD052Z | HSR- PD082Z. Current input: Constant-current system: 10 ㎃ (±3); Load voltage range: 90 - 240 V a.c.; Frequency: 50 / 60 ㎐; Rated load voltage: 2 | 90 - 240 V a.c. (low voltage).

Control-signal requirements, load range, leakage current, surge capability and thermal conditions are important when selecting the relay for a switching circuit. Weight: Approx. 10 g | Approx. 22 g | Approx. 27 g; Insulation resistance: 500 V d.c. , 100 ㏁ (between the input / output and case); Dielectric strength: 2,500 V a.c. (60 ㎐ for 1 min); Vibration resistance: 10 - 55 ㎐, double amplitude: 1.5 ㎜, X · Y · Z each axis 2 hours.

Key Features

Key strengths of the HSR-PD come from the combination of its functional configuration and practical installation specifications. The following characteristics highlight the values that matter most when comparing the product with equipment requirements.

Rated load current: 3 A | 5 A | 8 A; Load voltage range: 90 - 240 V a.c.; Control signal range: 4 - 32 V d.c.; Peak voltage (non-repetition): 600 V; Leakage current: Max. 10 ㎃.

• Rated load current: 3 A | 5 A | 8 A
• Load voltage range: 90 - 240 V a.c.
• Control signal range: 4 - 32 V d.c.
• Peak voltage (non-repetition): 600 V
• Leakage current: Max. 10 ㎃
• Frequency: 50 / 60 ㎐
• Current input: Constant-current system: 10 ㎃ (±3)
• Rated load voltage: 2 | 90 - 240 V a.c. (low voltage)
• Return voltage: Max. 1.5 V d.c.
• Output: Rated load voltage | 5 - 24 V d.c.

Technical Characteristics

The HSR-PD electrical performance is defined by its control signal, load voltage, rated current, switching limits and protection characteristics. These values establish the operating range for the solid state switching circuit. Control signal range: 4 - 32 V d.c.; Return voltage: Max. 1.5 V d.c.; Output: Rated load voltage | 5 - 24 V d.c.; Rated load current: 3 A | 5 A | 8 A.

Additional technical characteristics include Leakage current: Max. 10 ㎃; Output ON voltage drop: Max. 1.6 V (RMS); Response speed: 1/2 cycle + max. 1 ㎳. ("R" type: max. 1 ㎳).

Design and Construction

The physical design of HSR-PD should be considered together with the installation environment and the available mounting or display arrangement. Shock resistance: 1000 ㎨ (approx. 100 G), X · Y · Z each axis 3 times; Storage temperature: -30 ~ 90 ℃; Ambient temperature: -20 ~ 80 ℃; Ambient humidity: 45 ~ 85 % RH.

Further construction and environmental details include .

Integration and Operation

Integration of HSR-PD depends on matching the control signal and load circuit to the relay's rated voltage and current characteristics. Rated load current: 03 | 3A; Rated load current: 3 A | 5 A | 8 A; Load voltage range: 90 - 240 V a.c.; Control signal range: 4 - 32 V d.c..

Additional operating and interface details include Peak voltage (non-repetition): 600 V; Leakage current: Max. 10 ㎃; Frequency: 50 / 60 ㎐. These values provide a practical reference for wiring, setup and normal operation within the selected configuration.

Selection and Use

Choose HSR-PD by confirming the exact model or configuration against the required operating conditions. The available model information is HSR- PD032Z | HSR- PD052Z | HSR- PD082Z. Model: HSR- PD032Z | HSR- PD052Z | HSR- PD082Z; Model: Code | Content; Rated load current: 3 A | 5 A | 8 A; Load voltage range: 90 - 240 V a.c..

Before installation, confirm Control signal range: 4 - 32 V d.c.; Peak voltage (non-repetition): 600 V; Leakage current: Max. 10 ㎃. Matching the model, electrical ratings, signal requirements, physical arrangement and environmental limits helps keep the product within its specified operating conditions.
