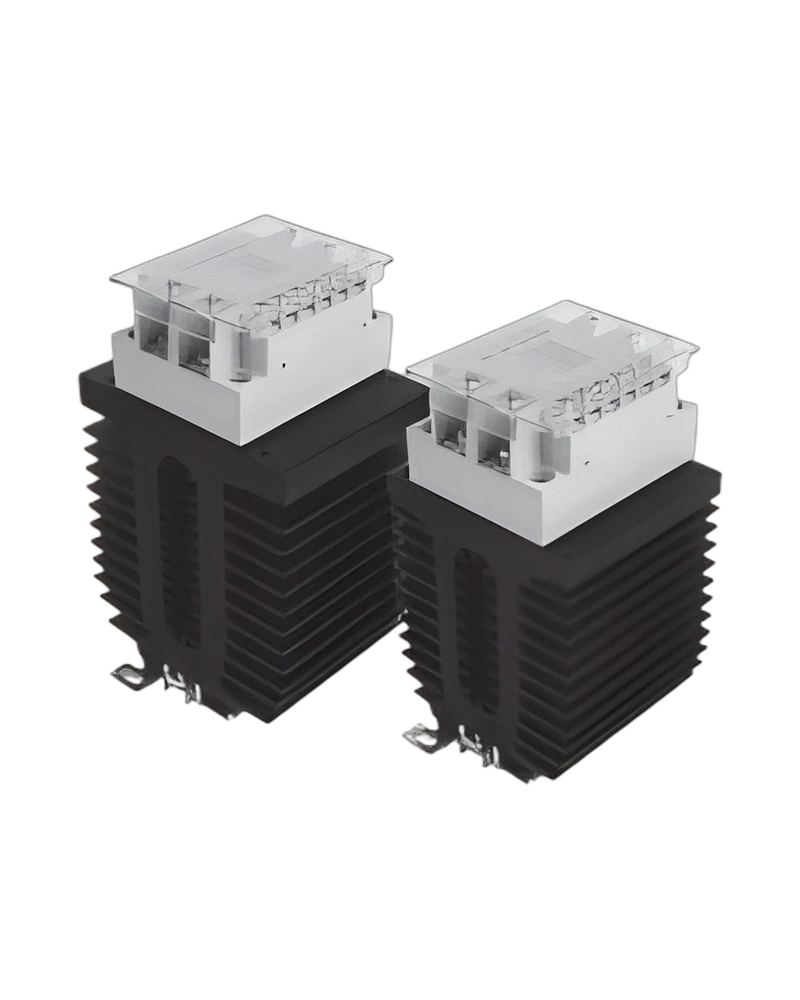

HSR-3SL is a Hanyoung NUX solid state relay for electronic switching of electrical loads. The available configurations are identified by the model options, load voltage and rated load current, with model information of Low | HSR- 3SLD152Z | HSR- 3SLD252Z | HSR- 3SLD402Z. Frequency: 50/60 ㎐(Dual usage); Rated load voltage: 2 | 90 - 264 V a.c. (Low voltage); Rated load current: 15 A (40℃) | 25 A (25℃) | 40 A (25℃); Leakage current: Max. 20 ㎃.
Control-signal requirements, load range, leakage current, surge capability and thermal conditions are important when selecting the relay for a switching circuit. Weight: 1,000g | 1,300g; Dielectric strength: 3,000 V a.c. (For 1 min at 60 ㎐); Vibration resistance: 10 - 55 ㎐, Double amplitude : 1.5 ㎜, X·Y·Z in each direction for 2 hours; Shock resistance: 1,000 ㎨, X·Y·Z in each direction 3 times.
Key strengths of the HSR-3SL come from the combination of its functional configuration and practical installation specifications. The following characteristics highlight the values that matter most when comparing the product with equipment requirements.
Rated load current: 15 A (40℃) | 25 A (25℃) | 40 A (25℃); Rated load voltage: 2 | 90 - 264 V a.c. (Low voltage); Peak Voltage (Non- repetition): Low | 600V; Leakage current: Max. 20 ㎃; Output ON voltage dropping: Max. 1.6 V (R.M.S).
The HSR-3SL electrical performance is defined by its control signal, load voltage, rated current, switching limits and protection characteristics. These values establish the operating range for the solid state switching circuit. Output ON voltage dropping: Max. 1.6 V (R.M.S); Response Time: Max. 1/2 Cycle + 1 ms (“R”type Max. 1 ms); Rated load current: 15 | 15 A; Storage Temperature: -30 ~ 90 ℃.
Additional technical characteristics include Ambient Temperature: -20 ~ 80 ℃ (But without frostiness); Ambient Humidity: 45 ~ 85 % R.H..
The physical design of HSR-3SL should be considered together with the installation environment and the available mounting or display arrangement. Rated load current: 15 A (40℃) | 25 A (25℃) | 40 A (25℃); Rated load voltage: 2 | 90 - 264 V a.c. (Low voltage); Peak Voltage (Non- repetition): Low | 600V; Leakage current: Max. 20 ㎃.
Further construction and environmental details include Output ON voltage dropping: Max. 1.6 V (R.M.S); Frequency: 50/60 ㎐(Dual usage); Response Time: Max. 1/2 Cycle + 1 ms (“R”type Max. 1 ms).
Integration of HSR-3SL depends on matching the control signal and load circuit to the relay's rated voltage and current characteristics. Rated load current: 15 A (40℃) | 25 A (25℃) | 40 A (25℃); Rated load voltage: 2 | 90 - 264 V a.c. (Low voltage); Peak Voltage (Non- repetition): Low | 600V; Leakage current: Max. 20 ㎃.
Additional operating and interface details include Output ON voltage dropping: Max. 1.6 V (R.M.S); Frequency: 50/60 ㎐(Dual usage); Response Time: Max. 1/2 Cycle + 1 ms (“R”type Max. 1 ms). These values provide a practical reference for wiring, setup and normal operation within the selected configuration.
Choose HSR-3SL by confirming the exact model or configuration against the required operating conditions. The available model information is Low | HSR- 3SLD152Z | HSR- 3SLD252Z | HSR- 3SLD402Z. Model: Low | HSR- 3SLD152Z | HSR- 3SLD252Z | HSR- 3SLD402Z; High: HSR- 3SLD154Z | HSR- 3SLD254Z | HSR- 3SLD404Z; High: 90 - 480 V a.c.; High: 800V | 1,200V.
Before installation, confirm High: 170 A | 250 A | 370 A; Model: Code | Content. Matching the model, electrical ratings, signal requirements, physical arrangement and environmental limits helps keep the product within its specified operating conditions.
| Specification | Details |
|---|---|
| Model | Low | HSR- 3SLD152Z | HSR- 3SLD252Z | HSR- 3SLD402Z |
| High | HSR- 3SLD154Z | HSR- 3SLD254Z | HSR- 3SLD404Z |
| Load | Rated Load Voltage | Low | 90 - 264 V a.c. |
| High | 90 - 480 V a.c. |
| Peak Voltage (Non- repetition) | Low | 600V |
| High | 800V | 1,200V |
| Rated load current | 15 A (40℃) | 25 A (25℃) | 40 A (25℃) |
| Frequency | 50/60 ㎐(Dual usage) |
| Surge current (8.3 ms No repetition) | Low | 170 A | 260 A | 420 A |
| High | 170 A | 250 A | 370 A |
| Leakage current | Max. 20 ㎃ |
| Output ON voltage dropping | Max. 1.6 V (R.M.S) |
| Input | Rated Voltage | 5 - 24 V d.c. |
| Operating Voltage Range | 4 - 32 V d.c. |
| Impedance | Max. 4 ㏀ |
| Operation Voltage | Min. 3 V d.c. |
| Reset Voltage | Max. 1.5 V d.c. |
| Input Current | Constant-current system : 10 ㎃ (±3) |
| Response Time | Max. 1/2 Cycle + 1 ms (“R”type Max. 1 ms) |
| Insulating Resistance | 500 V d.c., 100 ㏁ (Between the input / output and case) |
| Dielectric strength | 3,000 V a.c. (For 1 min at 60 ㎐) |
| Vibration resistance | 10 - 55 ㎐, Double amplitude : 1.5 ㎜, X·Y·Z in each direction for 2 hours |
| Shock resistance | 1,000 ㎨, X·Y·Z in each direction 3 times |
| Storage Temperature | -30 ~ 90 ℃ |
| Ambient Temperature | -20 ~ 80 ℃ (But without frostiness) |
| Ambient Humidity | 45 ~ 85 % R.H. |
| Weight | 1,000g | 1,300g |
| Model | Code | Content |
| HSR-3SL | Slim Type 3-Phase Solid State Relay |
| Input Operating Voltage | D | 4 - 32 V d.c. |
| Rated load current | 15 | 15 A |
| 25 | 25 A |
| 40 | 40 A |
| Rated load voltage | 2 | 90 - 264 V a.c. (Low voltage) |
| 4 | 90 - 480 V a.c. (High voltage) |
| Operation method (Switching Mode) | Z | Zero Cross Switching (Standard product) |
| R | Random Switching |
| No | Type | Category | Title | File |
| 1 | Manual > Instruction Manual | Solid State Relay | HSR-3SL Instruction Manual |
| 1 | CAD > 2D | Solid State Relay | HSR-3SL (2D) |
| 2 | CAD > 3D | Solid State Relay | HSR-3SL (3D) |
| No | Mark | Category | Title | File |
| 1 | Certification > CE | Solid State Relay | HSR-3SL (EMC) |
| 2 | Certification > CE | Solid State Relay | HSR-3SL (LVD) |
| Constant-current system | 10 ㎃ (±3) |
