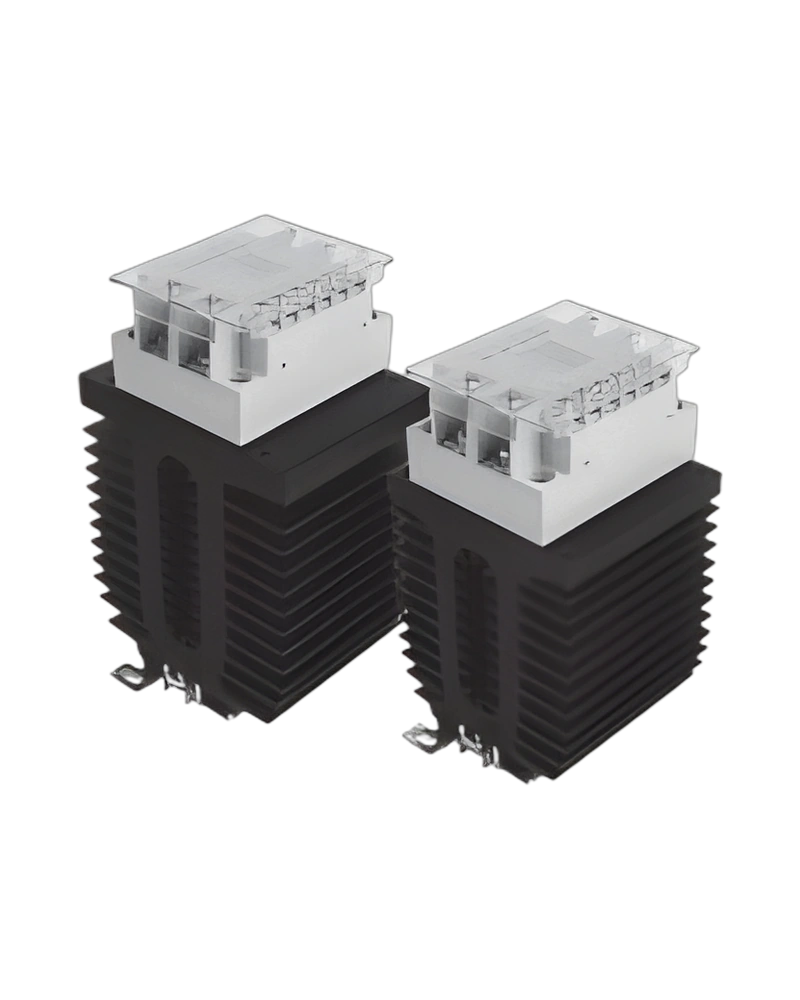

HSR-2SL is a Hanyoung NUX solid state relay for electronic switching of electrical loads. The available configurations are identified by the model options, load voltage and rated load current, with model information of Low | HSR- 2SLD252Z | HSR- 2SLD402Z. Frequency: 50/60 Hz (Dual usage); Power consumption: Max 25 ㎃, Max 40 ㎃ in case of Alarm output (Base on 24 V DC); Max. collector power consumption: 500 mW; Rated load current: 25 A | 40 A.
Control-signal requirements, load range, leakage current, surge capability and thermal conditions are important when selecting the relay for a switching circuit. Weight: Approx. 1,000 g | Approx. 1,300 g; Dielectric strength: 2,500 V AC (For 1 min at 60 ㎐); Vibration resistance: 10 - 55 ㎐, Double amplitude : 1.5 ㎜, X,Y, and Z direction for 2 hours; Shock resistance: 1,000 ㎨, X,Y,Z each axis 3 times.
Key strengths of the HSR-2SL come from the combination of its functional configuration and practical installation specifications. The following characteristics highlight the values that matter most when comparing the product with equipment requirements.
Rated load current: 25 A | 40 A; Leakage current: 10 ㎃ max; Output ON voltage dropping: 1.8 V (R.M.S) max; Frequency: 50/60 Hz (Dual usage); Power consumption: Max 25 ㎃, Max 40 ㎃ in case of Alarm output (Base on 24 V DC).
The HSR-2SL electrical performance is defined by its control signal, load voltage, rated current, switching limits and protection characteristics. These values establish the operating range for the solid state switching circuit. Leakage current: 10 ㎃ max; Output ON voltage dropping: 1.8 V (R.M.S) max; Output type: Transistor open collector (Hi at detection of problem); Response Time: 1/2 Cycle + 1 ms max. (“R”type below 1 ms).
Additional technical characteristics include Storage Temperature: -30 ~ 90 ℃; Ambient Temperature: 0 ~ 25 ℃ (But without frostiness); Ambient Humidity: 45 ~ 85 % R.H..
The physical design of HSR-2SL should be considered together with the installation environment and the available mounting or display arrangement. Degree of protection: IP20; Rated load current: 25 A | 40 A; Leakage current: 10 ㎃ max; Output ON voltage dropping: 1.8 V (R.M.S) max.
Further construction and environmental details include Frequency: 50/60 Hz (Dual usage); Power consumption: Max 25 ㎃, Max 40 ㎃ in case of Alarm output (Base on 24 V DC); Max. collector power consumption: 500 mW.
Integration of HSR-2SL depends on matching the control signal and load circuit to the relay's rated voltage and current characteristics. Rated load current: 25 A | 40 A; Leakage current: 10 ㎃ max; Output ON voltage dropping: 1.8 V (R.M.S) max; Frequency: 50/60 Hz (Dual usage).
Additional operating and interface details include Power consumption: Max 25 ㎃, Max 40 ㎃ in case of Alarm output (Base on 24 V DC); Max. collector power consumption: 500 mW; Output type: Transistor open collector (Hi at detection of problem). These values provide a practical reference for wiring, setup and normal operation within the selected configuration.
Choose HSR-2SL by confirming the exact model or configuration against the required operating conditions. The available model information is Low | HSR- 2SLD252Z | HSR- 2SLD402Z. Model: Low | HSR- 2SLD252Z | HSR- 2SLD402Z; High: HSR- 2SLD254Z | HSR- 2SLD404Z; High: 90 - 480 V a.c.; High: 1200 V.
Before installation, confirm High: 250 A | 370 A; High: 6 ㎸. Matching the model, electrical ratings, signal requirements, physical arrangement and environmental limits helps keep the product within its specified operating conditions.
| Specification | Details |
|---|---|
| Model | Low | HSR- 2SLD252Z | HSR- 2SLD402Z |
| High | HSR- 2SLD254Z | HSR- 2SLD404Z |
| Load | Rated Load Voltage | Low | 90 - 264 V a.c. |
| High | 90 - 480 V a.c. |
| Voltage | Low | 600 V |
| High | 1200 V |
| Rated load current | 25 A | 40 A |
| Frequency | 50/60 Hz (Dual usage) |
| Surge current (8.3 ms No repetition) | Low | 260 A | 420 A |
| High | 250 A | 370 A |
| Leakage current | 10 ㎃ max |
| Output ON voltage dropping | 1.8 V (R.M.S) max |
| Rated impulse withstand voltage | Low | 4 ㎸ |
| High | 6 ㎸ |
| Input | Rated Voltage | 5 - 24 V d.c. |
| Operating Voltage Range | 4 - 32 V d.c. |
| Impedance | Less than 4 ㏀ |
| Operation Voltage | More than 3 V DC |
| Reset Voltage | Less than 1.5 V DC |
| Input Current | Constant-current system : 10 ㎃ (±3) |
| Detection parts | Rated Voltage | 24 V d.c. |
| Operating Voltage Range | 20 - 26 V d.c. |
| Power consumption | Max 25 ㎃, Max 40 ㎃ in case of Alarm output (Base on 24 V DC) |
| Collector pressure | 30 V DC max |
| Maximum rated through current | 50 ㎃ max |
| Max. collector power consumption | 500 mW |
| Output type | Transistor open collector (Hi at detection of problem) |
| Response Time | 1/2 Cycle + 1 ms max. (“R”type below 1 ms) |
| Insulating Resistance | 500 V DC, 100 ㏁ (Between the input / output and case) |
| Dielectric strength | 2,500 V AC (For 1 min at 60 ㎐) |
| Vibration resistance | 10 - 55 ㎐, Double amplitude : 1.5 ㎜, X,Y, and Z direction for 2 hours |
| Shock resistance | 1,000 ㎨, X,Y,Z each axis 3 times |
| Storage Temperature | -30 ~ 90 ℃ |
| Ambient Temperature | 0 ~ 25 ℃ (But without frostiness) |
| Ambient Humidity | 45 ~ 85 % R.H. |
| Pollution level grade | 2 level pollution |
| Degree of protection | IP20 |
| Usage | Resistive load / Inductive load |
| Accepted standard | IEC 62314 |
| Weight | Approx. 1,000 g | Approx. 1,300 g |
| No | Type | Category | Title | File |
| 1 | Manual > Instruction Manual | Solid State Relay | HSR-2SL Instruction manual |
| 1 | CAD > 2D | Solid State Relay | HSR-2SL (2D) |
| No | Mark | Category | Title | File |
| 1 | Certification > CE | Solid State Relay | HSR-2SL (EMC) |
| 2 | Certification > CE | Solid State Relay | HSR-2SL (LVD) |
| 3 | Certification > S Mark | Solid State Relay | HSR-2SL |
| Constant-current system | 10 ㎃ (±3) |
