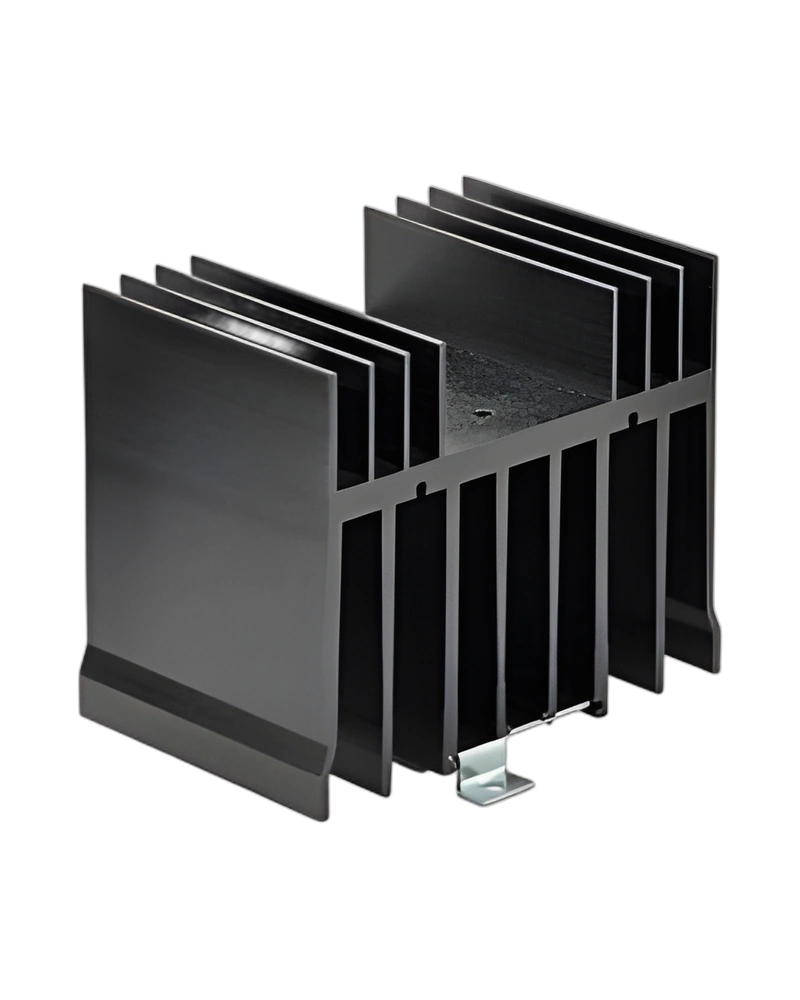

HSP Heat sink is a Hanyoung NUX heat sink for compatible solid state relay assemblies. The HSP range is differentiated by relay compatibility, current capacity and heat-sink length, giving the installation a clear way to match thermal hardware to the relay rating.
The available configurations include HSP-10, HSP-20 and HSP-40, with corresponding compatibility references for SSR-2 and HSR-2 relay models. The listed sizes provide a direct mechanical reference for panel layout and relay mounting.
The HSP range provides model-specific compatibility and sizing information, allowing the heat sink to be selected with the associated solid state relay. The key values are shown below.
Available configuration details include:
HSP-10 is specified for SSR-2□10□ at 10 A with a length of 48 mm. HSP-20 is specified for SSR-2□20□ at 20 A with a length of 80 mm. HSP-40 is specified for SSR-2□30□ at 30 A with a length of 109 mm, while SSR-2□40□ is listed at 40 A.
The HSR-2 compatibility references are also provided as HSP-10 for HSR-2☐10☐☐, HSP-20 for HSR-2☐20☐☐ and HSP-40 for HSR-2☐30☐☐. These exact model references should be checked before installation.
The HSP series uses three principal heat-sink lengths: 48 mm, 80 mm and 109 mm. These dimensions correspond to the HSP-10, HSP-20 and HSP-40 configurations and provide a straightforward reference for available mounting space.
Because the heat sink is installed with a compatible relay, the mechanical envelope of both parts should be considered together. The model-to-length relationship is particularly useful when preparing a panel layout.
Integration starts by identifying the exact relay family. The product information connects HSP-10, HSP-20 and HSP-40 with SSR-2 and HSR-2 series references at different current ratings. Matching the heat sink to the relay prevents selecting a thermal accessory for the wrong current or relay configuration.
The listed current values are 10 A, 20 A and 30 A for the HSP-10, HSP-20 and HSP-40 configurations, with a 40 A reference also shown for SSR-2□40□. Verify the selected relay marking and the heat-sink model together.
Select HSP-10, HSP-20 or HSP-40 according to the compatible relay model, current rating and available installation length. HSP-10 is 48 mm, HSP-20 is 80 mm and HSP-40 is 109 mm.
Before ordering, compare the exact HSR-2 or SSR-2 model reference with the heat-sink compatibility information. This simple model-to-model check provides a clear basis for thermal accessory selection and mechanical installation.
For procurement and installation planning, HSP Heat sink should be evaluated as part of the complete relay assembly rather than as an isolated accessory. Confirm the compatible relay family, current rating and available mechanical space, then compare the heat-sink dimensions with the panel or enclosure layout. Where the configuration includes a fan, allow for the stated fan size in the mounting arrangement and ensure the selected relay and heat sink correspond to the same product family. Using the exact model designation and the matching dimensions provides a clear reference for ordering, assembly and replacement work.
| Specification | Details |
|---|---|
| Model | Applicable Model | Capacity(A) | Length(L) |
| HSP-10 | SSR-2□10□ | 10 A | 48 mm |
| HSP-20 | SSR-2□20□ | 20 A | 80 mm |
| HSP-40 | SSR-2□30□ | 30 A | 109 mm |
| SSR-2□40□ | 40 A |
| Model | Applicable Model | Length(L) |
| HSP-10 | HSR-2☐10☐☐ | 48 mm |
| HSP-20 | HSR-2☐20☐☐ | 80 mm |
| HSP-40 | HSR-2☐30☐☐ | 109 mm |
