Product Overview

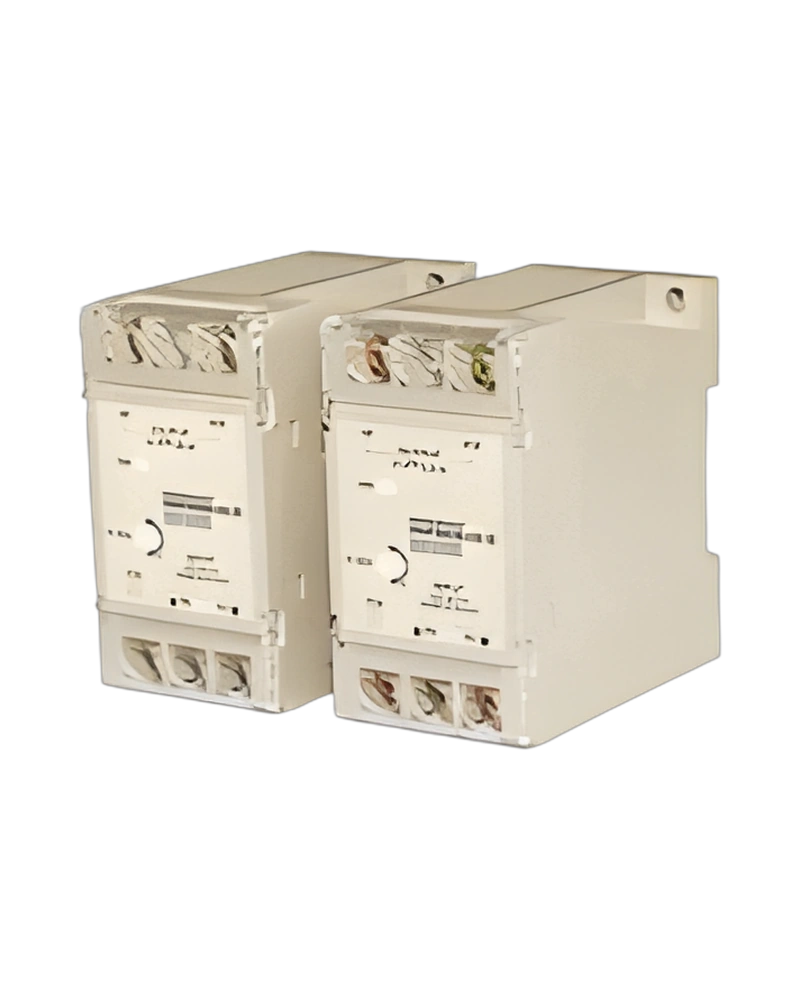

HNPS 03/07s is a Hanyoung NUX power supply for providing the electrical power required by the connected equipment. The configuration is defined by its input and output characteristics and available ratings, with model information of HNPS-03S | HNPS-07S. Input voltage: 100-240 V a.c. 50/60 ㎐ ±10% of power supply voltage; Voltage fluctuation range: ±10 % ( at V. ADJ ); Power output: 3 W | 7.5W; Output voltage: 5 V, 12 V, 15 V, 24 V.

Input conditions, output voltage/current, power rating, protection and environmental limits should be matched to the electrical requirements of the installation. Weight: 120g; Protective circuit: Protection against overcurrents (protects within 110 to 200% range of rated output current); Dielectric strength: • 3 kVAC (between input and output), 1.5 kVAC (between input and FG), • 500 V a.c. (Between output and FG), (detection current: 10 mA, for 1 min); Insulation Resistance: 100 MΩ or more (between input and output, at 500 V d.c.).

Key Features

Key strengths of the HNPS 03/07s come from the combination of its functional configuration and practical installation specifications. The following characteristics highlight the values that matter most when comparing the product with equipment requirements.

Input voltage: 100-240 V a.c. 50/60 ㎐ ±10% of power supply voltage; Output voltage: 5 V, 12 V, 15 V, 24 V; Power output: 3 W | 7.5W; Voltage fluctuation range: ±10 % ( at V. ADJ ); Power output: 03 | 3 W.

• Input voltage: 100-240 V a.c. 50/60 ㎐ ±10% of power supply voltage
• Output voltage: 5 V, 12 V, 15 V, 24 V
• Power output: 3 W | 7.5W
• Voltage fluctuation range: ±10 % ( at V. ADJ )
• Power output: 03 | 3 W
• Number of output voltage: S | 1 Output (Single output)
• Output voltage classification: 05 | 5 V d.c
• • 500 V a.c. (Between output and FG), (detection current: 10 mA, for 1 min)
• Protective circuit: Protection against overcurrents (protects within 110 to 200% range of rated output current)
• Dielectric strength: • 3 kVAC (between input and output), 1.5 kVAC (between input and FG), • 500 V a.c. (Between output and FG), (detection current: 10 mA, for 1 min)

Technical Characteristics

The main technical characteristics of HNPS 03/07s are defined by its electrical ratings, operating inputs or outputs, performance values and control or indication functions. These specifications provide the working limits for the selected configuration. Power output: 03 | 3 W; Number of output voltage: S | 1 Output (Single output); Output voltage classification: 05 | 5 V d.c; • 500 V a.c. (Between output and FG), (detection current: 10 mA, for 1 min).

Additional technical characteristics include .

Design and Construction

The physical design of HNPS 03/07s should be considered together with the installation environment and the available mounting or display arrangement. Input voltage: 100-240 V a.c. 50/60 ㎐ ±10% of power supply voltage; Output voltage: 5 V, 12 V, 15 V, 24 V; Power output: 3 W | 7.5W; Voltage fluctuation range: ±10 % ( at V. ADJ ).

Further construction and environmental details include Power output: 03 | 3 W; Number of output voltage: S | 1 Output (Single output); Output voltage classification: 05 | 5 V d.c.

Integration and Operation

Integration of HNPS 03/07s begins with matching its connection, input or control signal and output requirements to the surrounding equipment. Input voltage: 100-240 V a.c. 50/60 ㎐ ±10% of power supply voltage; Output voltage: 5 V, 12 V, 15 V, 24 V; Power output: 3 W | 7.5W; Voltage fluctuation range: ±10 % ( at V. ADJ ).

Additional operating and interface details include Power output: 03 | 3 W; Number of output voltage: S | 1 Output (Single output); Output voltage classification: 05 | 5 V d.c. These values provide a practical reference for wiring, setup and normal operation within the selected configuration.

Selection and Use

Choose HNPS 03/07s by confirming the exact model or configuration against the required operating conditions. The available model information is HNPS-03S | HNPS-07S. Model: HNPS-03S | HNPS-07S; Model: Code | Content; Input voltage: 100-240 V a.c. 50/60 ㎐ ±10% of power supply voltage; Output voltage: 5 V, 12 V, 15 V, 24 V.

Before installation, confirm Power output: 3 W | 7.5W; Voltage fluctuation range: ±10 % ( at V. ADJ ); Power output: 03 | 3 W. Matching the model, electrical ratings, signal requirements, physical arrangement and environmental limits helps keep the product within its specified operating conditions.
