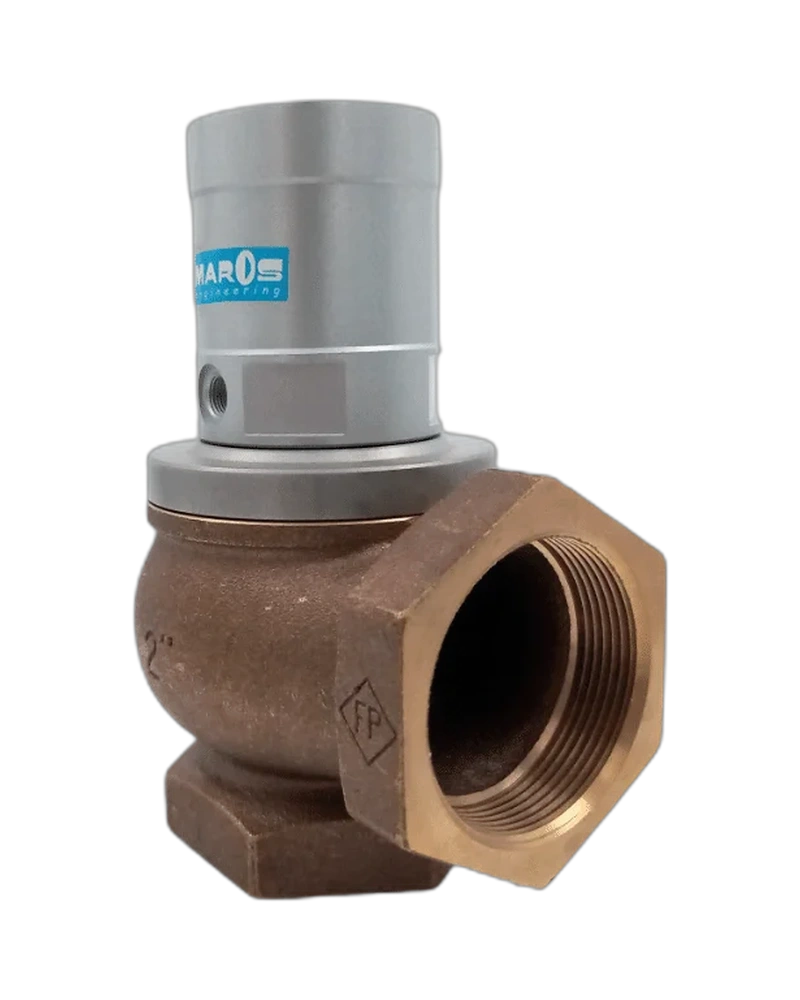

High Flow 2-Way Vacuum Valve - INCA - 83200 - 2”

High Flow 2-Way Vacuum Valve - INCA - 83200 - 2” is a MAROS Engineering solution for industrial automation and fluid or vacuum control. MAROS code: 83200; Selected size: 2". The configuration is presented with the manufacturer-published technical characteristics relevant to this product entry.

Product Overview

Type: 2-way high-flowrate vacuum control/intercepting valve. Sizes: 1/2"–4" (PN16) Pipe threads: F/F gas ISO228. Actuator: Double Acting (DA). Ambient temperature: 0/+60°C. Pilot pressure: min. The product configuration is intended for applications where the stated valve or actuator design, connection arrangement, operating range and construction materials are required.

Configuration

MAROS code: 83200; Selected size: 2". The selected nominal size and manufacturer code are retained exactly from the product record. Where MAROS publishes multiple versions, the applicable actuation, connection, pressure, temperature, sealing and material choices are included in the technical information below.

Technical Specifications

Type: 2-way high-flowrate vacuum control/intercepting valve. Sizes: 1/2"–4" (PN16) Pipe threads: F/F gas ISO228. Actuator: Double Acting (DA). Ambient temperature: 0/+60°C. Pilot pressure: min. 4.0 bar–max. 8.0 bar. Valve body: bronze. Cylinder spacer: anodized aluminium. Seal holder: brass for 1"1/4–2"; anodized aluminium for larger versions. Piston: aluminium. Cylinder: anodized aluminium. Piston rod: stainless steel AISI 304. Rod wiper: PTFE. Rod guide: self-lubricated technopolymer. Internal O-rings: FKM. Shutter seal: FKM for 1"1/4–2" and NBR for 3"–4". ATEX, 2-reed switch box and PTFE/EPDM shutter seal options are available on request.

Construction and Materials

Type: 2-way high-flowrate vacuum control/intercepting valve. Sizes: 1/2"–4" (PN16) Pipe threads: F/F gas ISO228. Actuator: Double Acting (DA). Ambient temperature: 0/+60°C. Pilot pressure: min. 4.0 bar–max. 8.0 bar. Valve body: bronze. Cylinder spacer: anodized aluminium. Seal holder: brass for 1"1/4–2"; anodized aluminium for larger versions. Piston: aluminium. Cylinder: anodized aluminium. Piston rod: stainless steel AISI 304. Rod wiper: PTFE. Rod guide: self-lubricated technopolymer. Internal O-rings: FKM. Shutter seal: FKM for 1"1/4–2" and NBR for 3"–4". ATEX, 2-reed switch box and PTFE/EPDM shutter seal options are available on request.

Applications

High Flow 2-Way Vacuum Valve - INCA - 83200 - 2” High Flow 2-Way Vacuum Valve - INCA - 83200 - 2” is an for industrial automation and pneumatic fluid or vacuum control. Type: 2-way high-flowrate vacuum control/intercepting valve. Technical Specifications Type: 2-way high-flowrate vacuum control/intercepting valve.

Available Options

• MAROS Engineering INCA family
• MAROS configuration code 83200
• Official manufacturer construction and technical configuration
• Published actuation and connection characteristics
• Published pressure and temperature limits where specified
• Published materials, seals and available options where applicable
