Explore performance details, construction highlights, applications, and technical information in one clear overview.

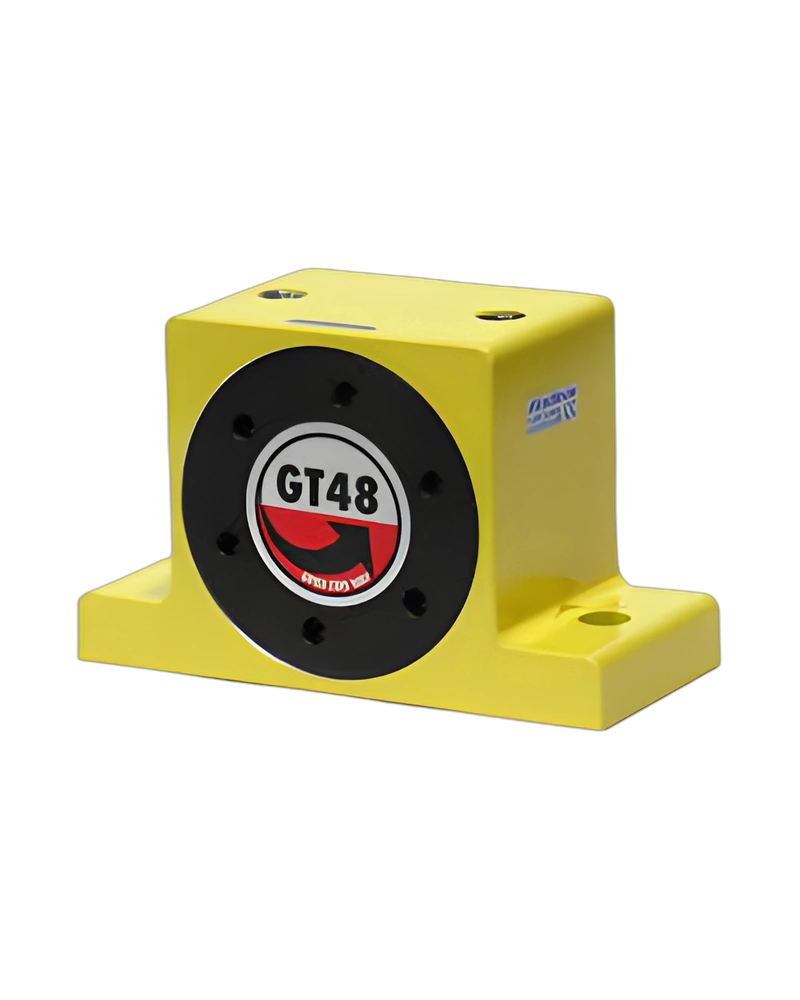

Findeva GT-48 is a pneumatic turbine vibrator designed for controlled high-speed vibration in industrial material-handling equipment.
The frequency, force and air-consumption figures shown are Findeva published technical data measured under the manufacturer's specified test conditions. Actual vibration on an installed structure depends on the mounting and the mass/stiffness of the equipment.
The GT-48 provides published vibration and centrifugal-force characteristics at 2, 4 and 6 bar, allowing the pneumatic output to be adjusted to the process.
Findeva turbine vibrators use compact aluminium-based construction and rotor-driven centrifugal vibration.
| Brand | Findeva |
|---|---|
| Product family | GT Golden Turbine Vibrator |
| Model | GT-48 |
| Rated frequency @ 2 / 4 / 6 bar | 6.0 / 7.5 / 9.7 ×10³ min⁻¹ |
| Centrifugal force @ 2 / 4 / 6 bar | 4900 / 7700 / 10500 N |
| Air consumption @ 2 / 4 / 6 bar | 425 / 700 / 970 l/min |
| Weight | 3.89 kg |
Hoppers, silos, screening equipment, vibrating tables, pipelines and bulk-material handling.
The GT-48 is designed for compressed-air operation within the published Findeva operating range. Its model-specific construction and pneumatic characteristics provide controlled vibration or impact for material-flow and process equipment.
| Brand | Findeva |
|---|---|
| Product family | GT Golden Turbine Vibrator |
| Model | GT-48 |
| Rated frequency @ 2 / 4 / 6 bar | 6.0 / 7.5 / 9.7 ×10³ min⁻¹ |
| Centrifugal force @ 2 / 4 / 6 bar | 4900 / 7700 / 10500 N |
| Air consumption @ 2 / 4 / 6 bar | 425 / 700 / 970 l/min |
| Weight | 3.89 kg |
