Product Overview

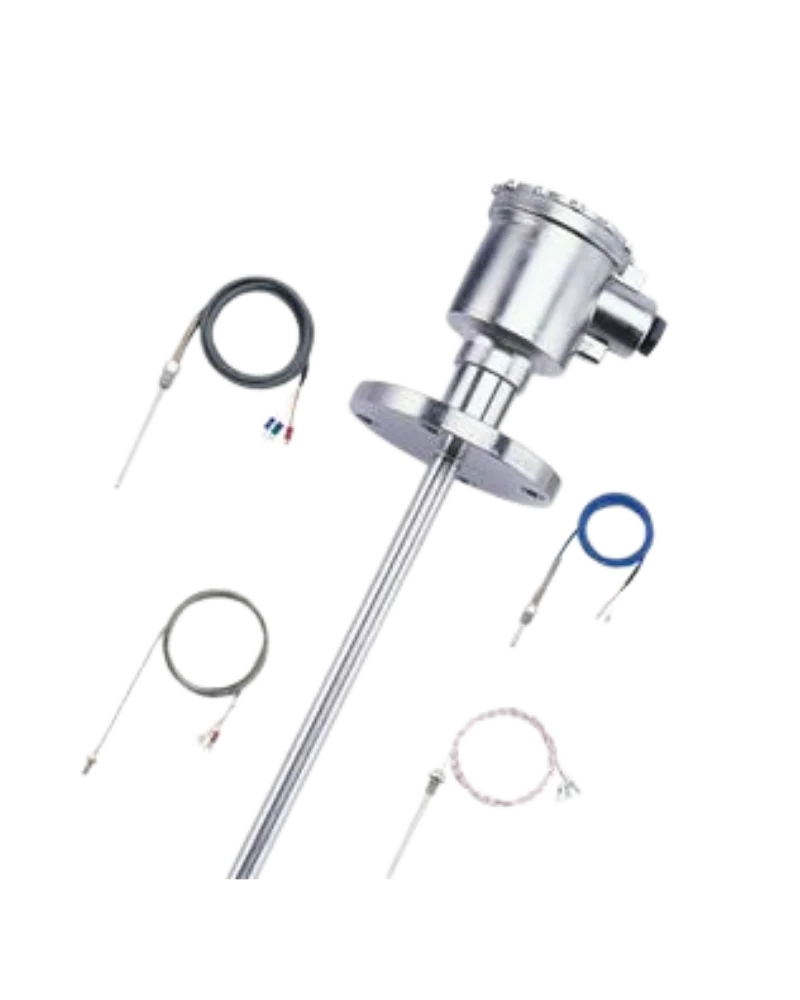

GP/GK Thermocouple - GPED(GPX10000-A3E) is a FINETEK GP/GK Thermocouple configuration identified in the catalog by GPED(GPX10000 and order code A3E). The source documentation describes the operating method, product configuration options and technical limits for the family. This page content is therefore centered on the actual GPED(GPX10000 identity rather than a generic description of the FINETEK range.

Industrial thermocouple/resistance-bulb sensing with configurable probe dimensions, materials, process connections and output/transmitter options. The listed design is intended to provide a usable process signal for integration into plant instrumentation, control, monitoring or protection systems, depending on the selected configuration.

Technical Capabilities

The supplied FineTek source material reports the following technical values for this family. Where the manufacturer shows more than one value because the range depends on model, construction, output or installation option, the complete range is retained rather than assigning one value to every variant.

• Thermocouple inputs: K, J and S on the main ordering family; expanded TR160 interface supports B/E/J/K/N/R/S/T
• PT100 range: -200 to 850 °C
• Rohm range: 0–400 Ω
• Probe diameters: 4.0 / 5.0 / 6.0 / 8.0 / 9.5 / 12.7 / 17.2 mm options
• Probe materials: SUS304 / SUS316 / SUS316L
• Probe length code: 0001–9999 mm
• Thread sizes: 1/8 in, 1/4 in, 3/8 in, 1/2 in, 3/4 in, 1 in and larger options
• Pressure options: 5 kg/cm², 10 kg/cm², 150 lb and 300 lb codes
• TR160 supply: 18–36 VDC
• TR160 ambient: -40 to 85 °C

Design and Features

The GP/GK Thermocouple family is built around the operating principle above and the configuration options documented by FINETEK. The main characteristics relevant to selection are summarized below.

• Configurable probe geometry
• Metal protection tubes
• Multiple terminal-box styles
• Thermocouple and resistance-bulb options
• Optional signal conversion through TR160-type transmitter

Applications

FINETEK identifies this family for applications such as those listed below. These are application areas supported by the manufacturer's published product information and are not intended as a substitute for application-specific engineering review.

• Process temperature measurement
• Furnaces
• Tanks
• Piping
• Industrial machinery
• Instrumentation assemblies

Configuration and Selection

The product name, model identifier and order-code string should be checked together when selecting a specific item. Family-level values can be shared across configurations only where the source indicates that they are common; model-dependent values should be read from the corresponding configuration before purchase or installation. For this Excel row, the catalog identity is GP/GK Thermocouple - GPED(GPX10000-A3E) with order code A3E).

This content is written from the manufacturer information associated with the cited FINETEK family source and does not add unsupported operating values or unrelated product specifications.

Technical Highlights

The GP/GK Thermocouple - GPED(GPX10000-A3E) configuration is identified by its complete product name, model and order code. The source-aligned values below are included to make selection, specification review and system integration easier.

• PT100 range: -200 to 850 °C
• Rohm range: 0–400 Ω
• Probe diameters: 4.0 / 5.0 / 6.0 / 8.0 / 9.5 / 12.7 / 17.2 mm options
• Probe materials: SUS304 / SUS316 / SUS316L
• Probe length code: 0001–9999 mm
• Pressure options: 5 kg/cm², 10 kg/cm², 150 lb and 300 lb codes
• TR160 supply: 18–36 VDC
• TR160 outputs: 4–20 mA / 20–4 mA
• Linear voltage inputs: 0–0.5 / 0–1 / 0–5 / 0–10 / 0–20 V
• Representative TC ranges: K: -200 to 1370 °C; J: -210 to 1200 °C; T: -200 to 400 °C; E: -200 to 1000 °C; R/S: -50 to 1760 °C; B: -250 to 1820 °C; N: -200 to 1300 °C

Product Identification

Model: GPED(GPX10000-A3E). The complete configuration should be matched to the required process conditions, installation arrangement and connected instrumentation.
