Explore performance details, construction highlights, applications, and technical information in one clear overview.

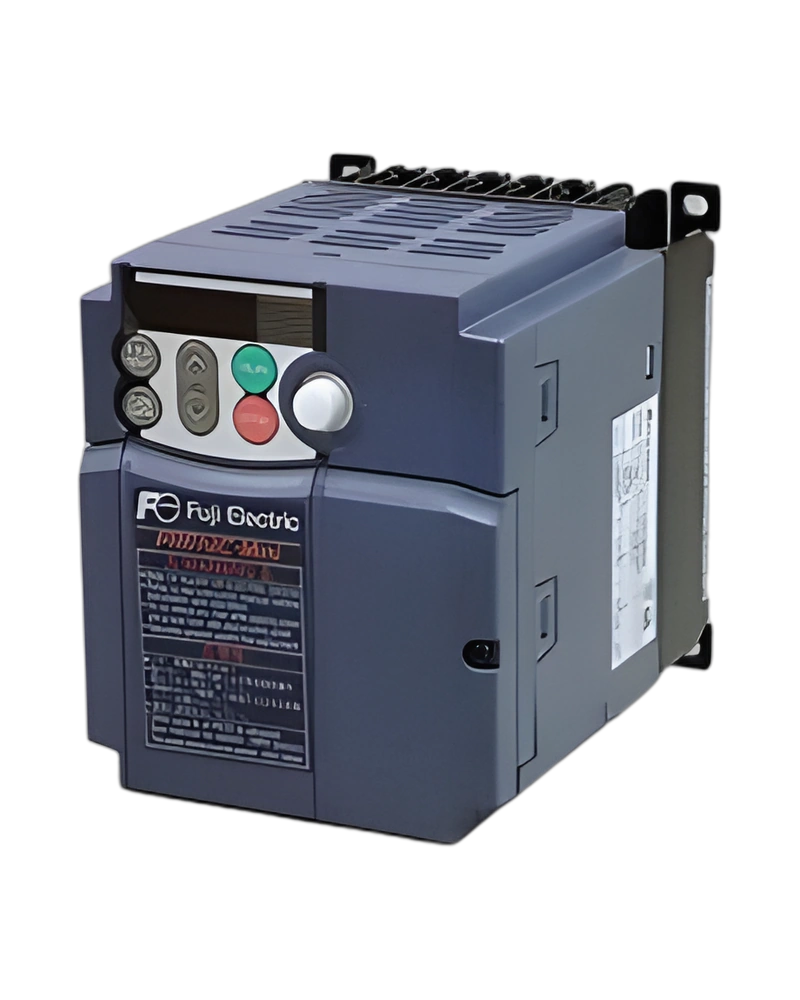

Fuji Electric FRENIC-Mini (C2) is a compact AC drive designed for variable-speed motor control in machinery and automation applications. The series combines a compact physical design with Dynamic Torque Vector Control, PID functions, communication capability and application-oriented motor-control functions.
Fuji Electric's Dynamic Torque Vector Control provides stable torque output even at low speed. The function is suited to applications such as conveyors and high-inertia loads where starting and low-speed torque are important.
Slip compensation works with voltage tuning to improve speed-control accuracy at low velocity. This can help stabilize creep speed in applications requiring controlled stopping and positioning behavior.
Built-in PID functions support temperature, pressure and flow control applications by adjusting motor speed in response to the process variable.
RS-485 communication is provided as standard, supporting Modbus-RTU and Fuji Electric inverter protocol for integration with control and monitoring systems.
| Product family | FRENIC-Mini (C2) |
|---|---|
| Product type | Compact inverter |
| Voltage classes | Three-phase 200 V / three-phase 400 V / single-phase 200 V / single-phase 100 V |
| Applicable motor range | 0.1 to 15 kW depending on model and voltage class |
| Maximum frequency setting | 25 to 400 Hz |
| Carrier frequency | 0.75 to 16 kHz |
| Communication | RS-485; Modbus-RTU / Fuji Electric inverter protocol |
| Control | Dynamic Torque Vector Control |
Industrial machinery, conveyors, pumps, fans, compressors, machine tools and automation systems requiring variable-speed AC motor control.
Fuji Electric develops AC drives and automation products for industrial motor control, motion control and electrical equipment. The product information presented for FRENIC-Mini - Compact Inverter focuses on the published characteristics of its specific product family and model.
| Product family | FRENIC-Mini (C2) |
|---|---|
| Product type | Compact inverter |
| Voltage classes | Three-phase 200 V / three-phase 400 V / single-phase 200 V / single-phase 100 V |
| Applicable motor range | 0.1 to 15 kW depending on model and voltage class |
| Maximum frequency setting | 25 to 400 Hz |
| Carrier frequency | 0.75 to 16 kHz |
| Communication | RS-485; Modbus-RTU / Fuji Electric inverter protocol |
| Control | Dynamic Torque Vector Control |
