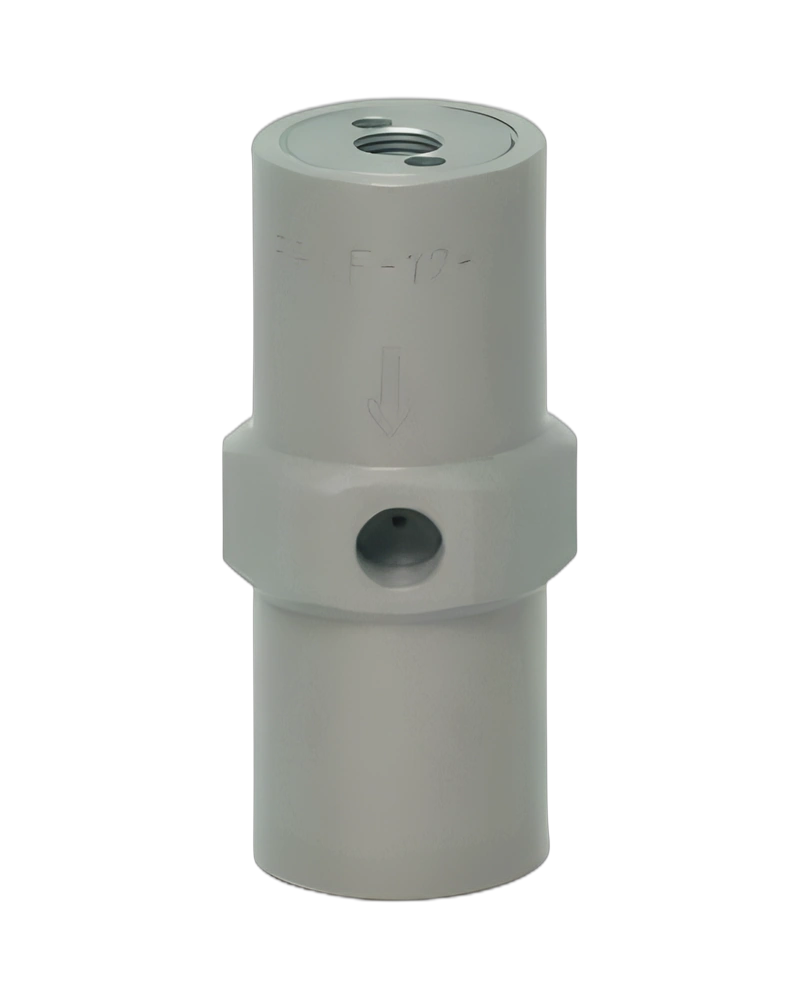

Findeva FPLF-35-L is a lubrication-free pneumatic piston vibrator for linear vibration. It provides continuously variable vibration frequency and force and is designed for material handling, conveying, loosening and compacting bulk solids, mechanical-process activation and filling equipment.
At 2, 4 and 6 bar, FPLF-35-L produces 2.4, 3.1 and 3.6 ×10³ vibrations per minute respectively. The corresponding force values are 282, 680 and 1,066 N, with air consumption of 38, 89 and 135 l/min.
The FPLF range uses an aluminium housing with a hard Ematal coating, a hard-anodized aluminium socket, an anodized cap, a covered-steel piston and a compression spring. The design is lubrication-free and intended for demanding industrial environments.
| Model | FPLF-35-L |
|---|---|
| Vibration @ 2 / 4 / 6 bar | 2.4 / 3.1 / 3.6 ×10³ min⁻¹ |
| Force @ 2 / 4 / 6 bar | 282 / 680 / 1,066 N |
| Air consumption @ 2 / 4 / 6 bar | 38 / 89 / 135 l/min |
| Length A | 136 mm |
| Width | 65 mm |
| Mounting | M12 |
| Connections | G 1/4 in / G 1/4 in |
| Weight | 1.38 kg |
| Operating temperature | Up to 120°C; HT version up to 150°C; LT version down to -40°C on request |
FPLF-35-L is suited to conveyor and discharge chutes, loosening or compacting bulk materials, activating mechanical processes and filling facilities, including food and pharmaceutical applications.
| Brand | Findeva |
|---|---|
| Product family | FPLF lubrication-free piston vibrator |
| Model | FPLF-35-L |
| Vibration @ 2 / 4 / 6 bar | 2.4 / 3.1 / 3.6 ×10³ min⁻¹ |
| Force @ 2 / 4 / 6 bar | 282 / 680 / 1,066 N |
| Air consumption @ 2 / 4 / 6 bar | 38 / 89 / 135 l/min |
| Length A | 136 mm |
| Width | 65 mm |
| Mounting | M12 |
| Connections | G 1/4 in / G 1/4 in |
| Weight | 1.38 kg |
| Temperature | Up to 120°C; HT up to 150°C; LT down to -40°C on request |
