Explore performance details, construction highlights, applications, and technical information in one clear overview.

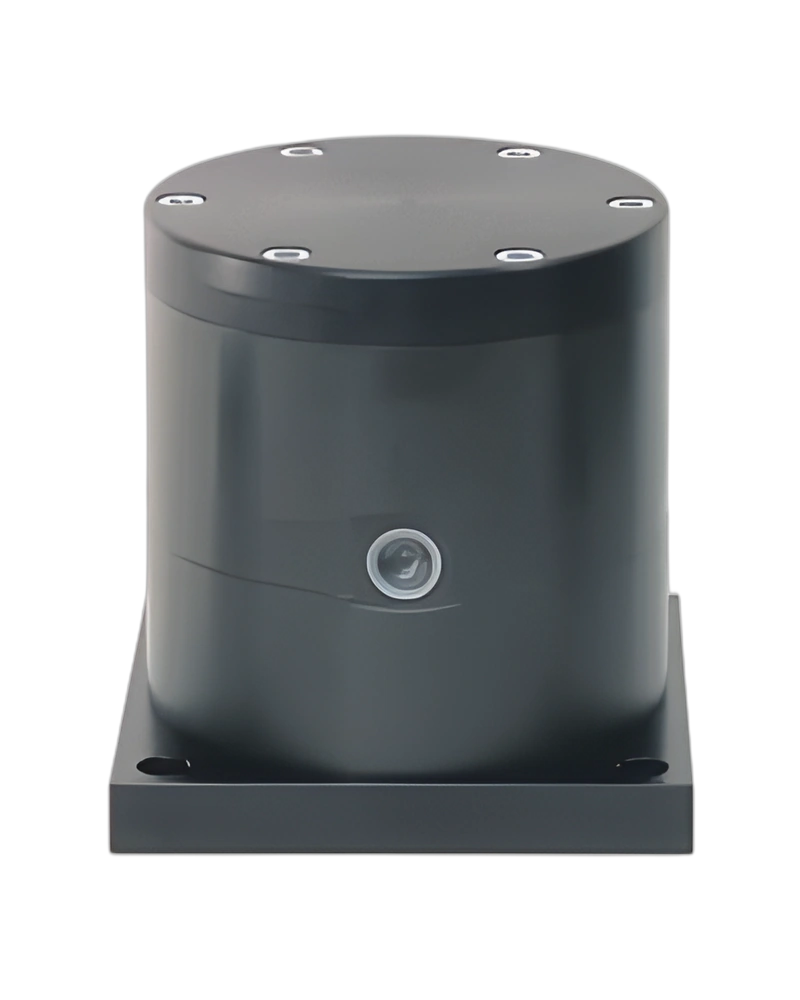

Findeva FP-60-M is a pneumatic piston vibrator for linear vibration in feeders, chutes and bulk-material equipment. The FP design provides continuously adjustable vibration frequency and force through compressed-air control.
The FP-60-M uses the FP-series piston-vibrator design with a hard-anodized aluminium housing and spring-driven piston. The construction is intended for controlled linear vibration and can be installed in different operating positions.
At 2, 4 and 6 bar, the model provides 1.9, 2.4 and 2.7 ×10³ vibrations per minute and 610, 1400 and 2170 N force.
Published air consumption is 90, 160 and 270 l/min at 2, 4 and 6 bar. The model weighs 4.25 kg and uses G 1/4" / G 3/8" pneumatic connections.
| Brand | Findeva |
|---|---|
| Product family | FP Piston Vibrator |
| Model | FP-60-M |
| Rated frequency @ 2 / 4 / 6 bar | 1.9 / 2.4 / 2.7 ×10³ min⁻¹ |
| Force @ 2 / 4 / 6 bar | 610 / 1400 / 2170 N |
| Air consumption @ 2 / 4 / 6 bar | 90 / 160 / 270 l/min |
| Length A | 154 mm |
| Width / wrench size | 94 mm / M16 |
| Connections | G 1/4" / G 3/8" |
| Weight | 4.25 kg |
| Maximum operating temperature | 150°C |
Driving conveyor and discharge chutes, loosening or compacting bulk solids, activating mechanical processes and filling facilities.
The FP-60-M is designed for compressed-air operation within the published Findeva operating range. Its model-specific construction and pneumatic characteristics provide controlled vibration or impact for material-flow and process equipment.
| Brand | Findeva |
|---|---|
| Product family | FP Piston Vibrator |
| Model | FP-60-M |
| Rated frequency @ 2 / 4 / 6 bar | 1.9 / 2.4 / 2.7 ×10³ min⁻¹ |
| Force @ 2 / 4 / 6 bar | 610 / 1400 / 2170 N |
| Air consumption @ 2 / 4 / 6 bar | 90 / 160 / 270 l/min |
| Length A | 154 mm |
| Width / wrench size | 94 mm / M16 |
| Connections | G 1/4" / G 3/8" |
| Weight | 4.25 kg |
| Maximum operating temperature | 150°C |
