Explore performance details, construction highlights, applications, and technical information in one clear overview.

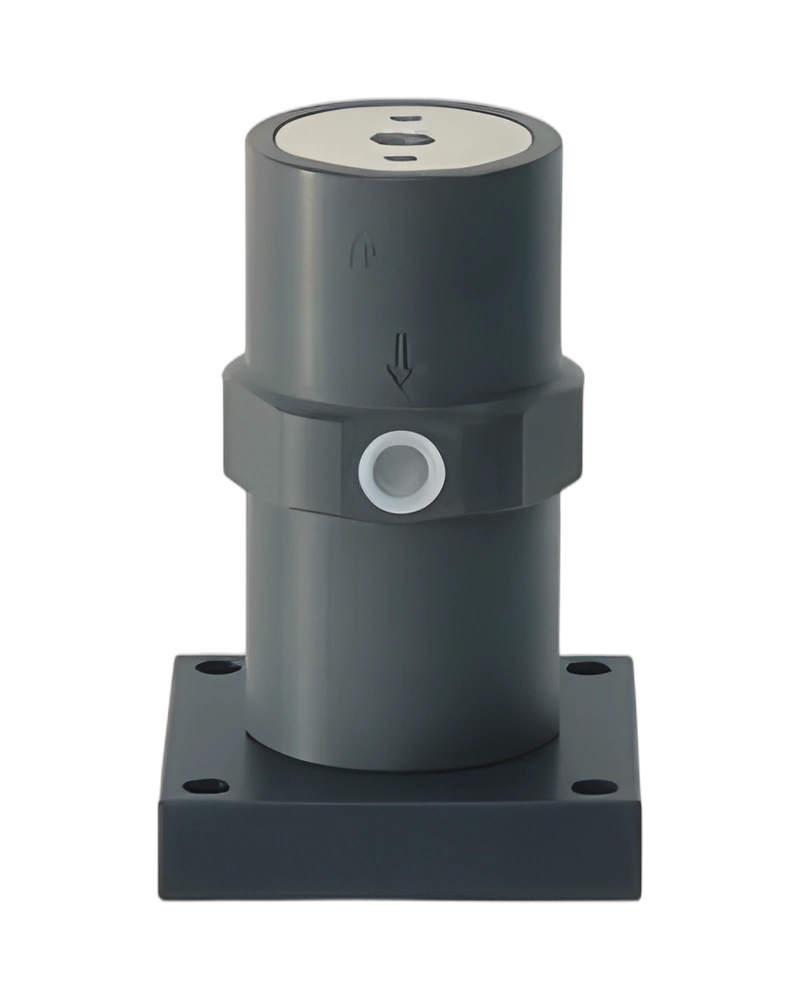

Findeva FP-18-S is a pneumatic piston vibrator for linear vibration in feeders, chutes and bulk-material equipment. The FP design provides continuously adjustable vibration frequency and force through compressed-air control.
The FP-18-S uses the FP-series piston-vibrator design with a hard-anodized aluminium housing and spring-driven piston. The construction is intended for controlled linear vibration and can be installed in different operating positions.
At 2, 4 and 6 bar, the model provides 5.0, 6.4 and 7.7 ×10³ vibrations per minute and 66, 134 and 187 N force.
Published air consumption is 5, 33 and 57 l/min at 2, 4 and 6 bar. The model weighs 0.30 kg and uses G 1/8" / G 1/8" pneumatic connections.
| Brand | Findeva |
|---|---|
| Product family | FP Piston Vibrator |
| Model | FP-18-S |
| Rated frequency @ 2 / 4 / 6 bar | 5.0 / 6.4 / 7.7 ×10³ min⁻¹ |
| Force @ 2 / 4 / 6 bar | 66 / 134 / 187 N |
| Air consumption @ 2 / 4 / 6 bar | 5 / 33 / 57 l/min |
| Length A | 81 mm |
| Width / wrench size | 42 mm / M10 |
| Connections | G 1/8" / G 1/8" |
| Weight | 0.30 kg |
| Maximum operating temperature | 150°C |
Driving conveyor and discharge chutes, loosening or compacting bulk solids, activating mechanical processes and filling facilities.
The FP-18-S is designed for compressed-air operation within the published Findeva operating range. Its model-specific construction and pneumatic characteristics provide controlled vibration or impact for material-flow and process equipment.
| Brand | Findeva |
|---|---|
| Product family | FP Piston Vibrator |
| Model | FP-18-S |
| Rated frequency @ 2 / 4 / 6 bar | 5.0 / 6.4 / 7.7 ×10³ min⁻¹ |
| Force @ 2 / 4 / 6 bar | 66 / 134 / 187 N |
| Air consumption @ 2 / 4 / 6 bar | 5 / 33 / 57 l/min |
| Length A | 81 mm |
| Width / wrench size | 42 mm / M10 |
| Connections | G 1/8" / G 1/8" |
| Weight | 0.30 kg |
| Maximum operating temperature | 150°C |
