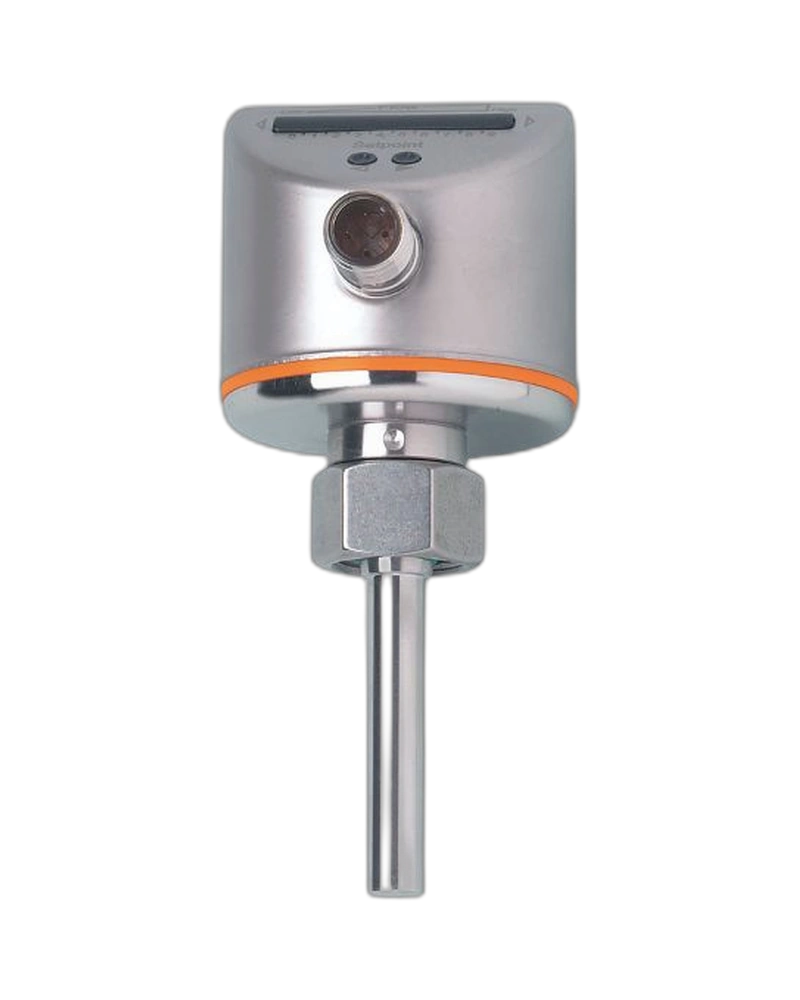

The IFM SI5004 is a flow transmitter designed for monitoring liquids in industrial process applications. It features an analogue 4–20 mA output and a robust stainless-steel housing for demanding environments. Its variable process connection, LED flow indication and wide measuring range make it suitable for continuous liquid-flow monitoring and automation integration.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The SI5004 is designed for liquid-flow measurement and transmission of process information to automation systems. It uses an analogue output to communicate measured flow and features a robust stainless-steel construction. The transmitter is suitable for industrial installations where dependable process monitoring is required.
The SI5004 measures liquid flow across a defined velocity range and provides a 4–20 mA analogue signal for control systems. Its stainless-steel construction and IP67 protection support use in industrial environments. The unit is suitable for water and liquid media.
The SI5004 combines liquid-flow measurement, analogue transmission and industrial mechanical construction. Its M18 x 1.5 process connection, LED indication and configurable flow information make it suitable for process automation and liquid-handling applications.
Flow transmitter for liquids
4–20 mA analogue output
Stainless-steel housing
LED flow indication
M18 x 1.5 process connection
Suitable for water and liquids
IP67 protection
Wide flow setting range
Robust industrial construction
Automation-system integration
Liquid-flow monitoring
Water systems
Cooling systems
Process automation
Pump monitoring
Machine tools
Industrial fluid handling
Production equipment
Flow control
Factory automation
| Specification | Details |
|---|---|
| Product Code | SI5004 |
| Model | SI5004 |
| Product Type | Flow transmitter |
| Sensing Range | 3...300 cm/s |
| Electrical Design | Model-specific |
| Output Function | 4...20 mA analogue |
| Operating Voltage | 19...36 V DC |
| Current Consumption | <60 mA |
| Housing Material | Stainless steel / PC / PBT-GF20 |
| Housing Design | Tubular |
| Connection | Connector |
| Connector | 1 x M12, A-coded |
| Protection Rating | IP67 |
| Protection Class | III |
| Switching Frequency | Not applicable |
| Response Time | 1...10 s |
| Ambient Temperature | -25...80 °C |
| Installation | In-line |
| Mounting | M18 x 1.5 internal thread |
| LED Indicator | 10 x three-colour LED |
| Short-Circuit Protection | Model-specific |
| Overload Protection | Model-specific |
| Reverse Polarity Protection | Yes |
| Weight | 230 g |
| Additional Information | Probe length 45 mm; pressure rating 300 bar; maximum analogue load 500 Ω. (ifm.com) |
