Explore performance details, construction highlights, applications, and technical information in one clear overview.
The FLOWSIC100 Process is a gas flow measuring device for process applications. The official SICK product information specifies ultrasonic transit time measurement with non-contact operation and no moving parts. The system is designed for process pressure up to 16 bar and can be supplied in explosion-protected configurations for zone 2 applications.
Documented measured values include gas velocity, volume flow at actual and standard conditions, gas temperature, speed of sound and mass flow on request. The measuring range is documented as 0 ... ±40 m/s, with higher velocity available on request.

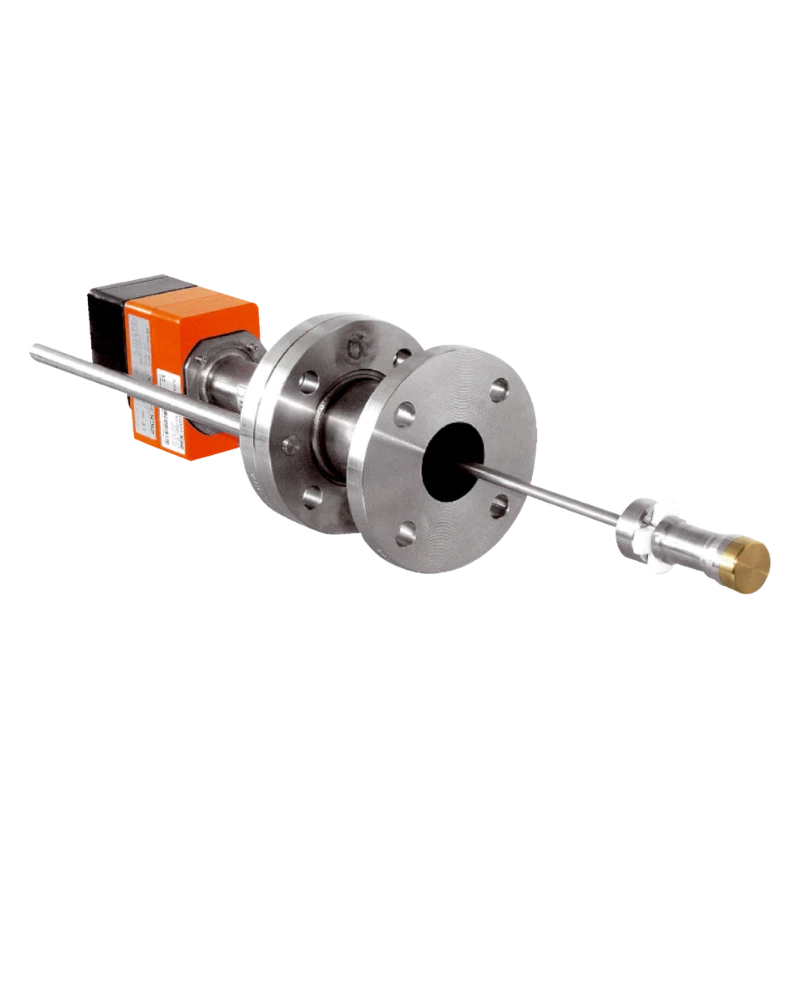

The standard system includes an MCU control unit with two sender/receiver units or a single measuring probe. The MCU handles signal input and output, reference-value calculation and operation through its LCD interface. Interfaces include USB, RS485 via an optional module, RS232 for service and Ethernet via an optional module.
The sender/receiver units are available in hermetically sealed stainless-steel or titanium designs. SICK documents temperature capability up to +260 °C and low-maintenance, pressure-independent and process-friendly measurement.
