Product Overview

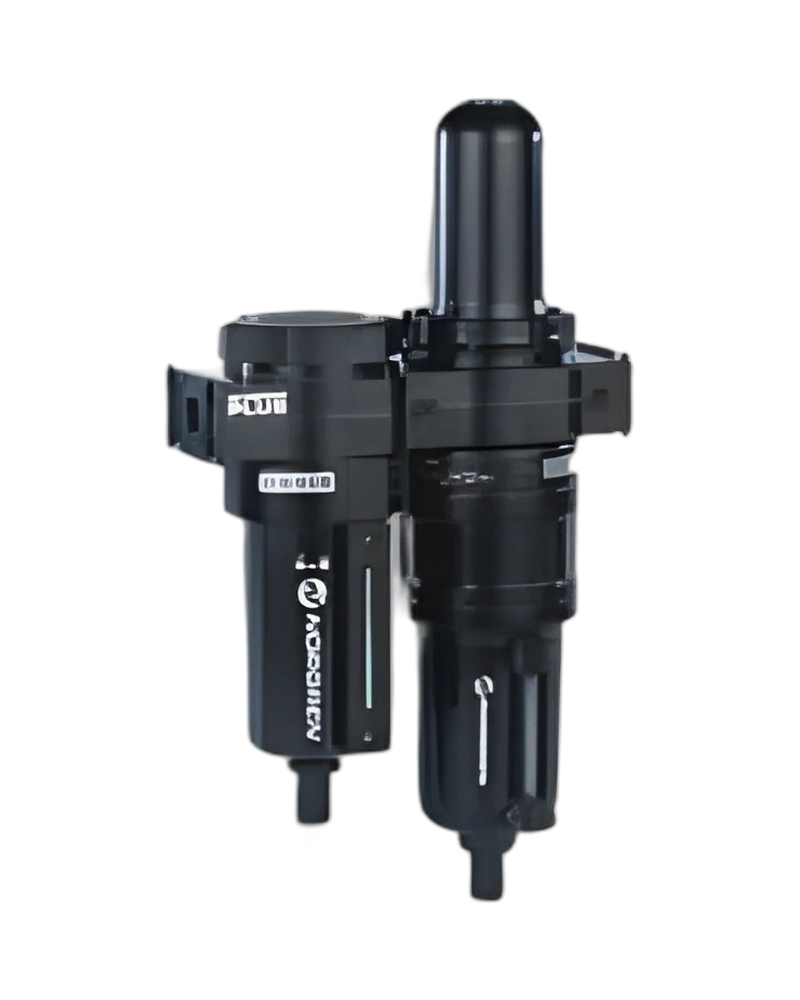

FFB64-308 is a NORGREN Filtration Unit configuration. This product page brings together the supplied configuration details and technical characteristics for this exact listed model, with the stated values retained for product selection and ordering.

Configuration and Selection

The configuration is defined by Country of Origin: Germany; Range: FFB64. These values describe the selected arrangement and help distinguish this product from other variants within the range.

Operating Characteristics

The operating characteristics include Media: Compressed air; Port Size: 3/8" ISO G; Drain Type: Auto drain; Operating Temperature: -20 ... 65 °C, -4 ... 149 °F; Gauge Port: 1/8" ISO Rc; Maximum Inlet Pressure: 17 bar, 247 psi; Flow: 16.3 dm3/s, 34.5 scfm. The supplied pressure, temperature, flow, media, drain, port and adjustment information is presented as stated for this configuration.

Construction and Materials

The construction information specifies Filter Element: 0.01 μm; Bowl Material: Aluminum alloy; Bowl Capacity: 0.2 l; Materials - Body: Zinc alloy; Materials - Bowl: Aluminum alloy; Materials - Elastomers: Nitrile rubber (NBR); Materials - Filter Element: Bronze, Synthetic fibre, Polyethylene (PE), Activated carbon. These entries describe the stated product materials and component details without adding unsupported compatibility or durability claims.

Product Information

Title: FFB64-308 | Olympian Plus three stage combination unit, pre-filter, coalescing and oil vapour removal filters, G3/8, automatic drain, 0.003 mg/m³ max remaining oil content URL Source: Published Time: Wed, 09 Sep 2026 17:41:40 GMT View your account information including order history, saved baskets and delivery addresses.

Technical Specification Summary

Media is specified as Compressed air. Port Size is specified as 3/8" ISO G. Drain Type is specified as Auto drain. Filter Element is specified as 0.01 μm. Bowl Material is specified as Aluminum alloy. Operating Temperature is specified as -20 ... 65 °C, -4 ... 149 °F. Gauge Port is specified as 1/8" ISO Rc. Maximum Inlet Pressure is specified as 17 bar, 247 psi. Bowl Capacity is specified as 0.2 l. Flow is specified as 16.3 dm3/s, 34.5 scfm. Materials - Body is specified as Zinc alloy. Materials - Bowl is specified as Aluminum alloy. Materials - Elastomers is specified as Nitrile rubber (NBR). Materials - Filter Element is specified as Bronze, Synthetic fibre, Polyethylene (PE), Activated carbon. Country of Origin is specified as Germany. Range is specified as FFB64.
