Product Overview

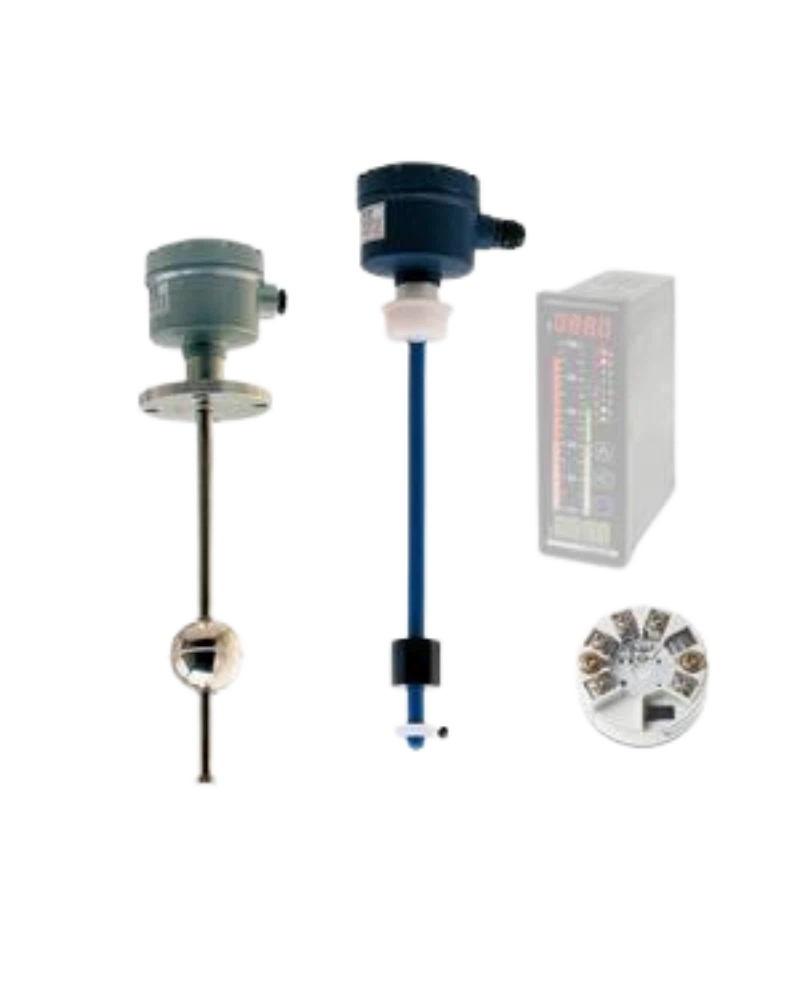

FGX Magnetic Float Level Transmitter is a FINETEK FGX Magnetic Float Level Transmitter configuration identified in the catalog by its family configuration. The source documentation describes the operating method, product configuration options and technical limits for the family. This page content is therefore centered on the actual FGX Magnetic Float Level Transmitter identity rather than a generic description of the FINETEK range.

Continuous liquid-level measurement using a float travelling along a sensing rod with reed switches producing a position-proportional electrical response. The listed design is intended to provide a usable process signal for integration into plant instrumentation, control, monitoring or protection systems, depending on the selected configuration.

Technical Capabilities

The supplied FineTek source material reports the following technical values for this family. Where the manufacturer shows more than one value because the range depends on model, construction, output or installation option, the complete range is retained rather than assigning one value to every variant.

• Resolution: 0.25 in (6.35 mm) or 0.5 in (12.7 mm)
• Maximum length: 19.7 ft (6 m)
• Specific gravity: Greater than 0.45
• Output: 4–20 mA, 2-wire loop or 3-wire resistance
• Sensing method: Reed switches distributed along the measuring length
• Optional transmitter: TAB-2100 for 0/4–20 mA
• Protection / construction: Sensing elements protected with plastic packaging

Design and Features

The FGX Magnetic Float Level Transmitter family is built around the operating principle above and the configuration options documented by FINETEK. The main characteristics relevant to selection are summarized below.

• Continuous level signal
• Simple float-and-reed construction
• Optional explosion-proof and marine-certified versions
• Dual-float version for interface measurement
• PLC/DCS integration

Applications

FINETEK identifies this family for applications such as those listed below. These are application areas supported by the manufacturer's published product information and are not intended as a substitute for application-specific engineering review.

• Wastewater
• Oil storage
• Marine vessels
• Chemical/petrochemical
• Power plants
• Hydraulic systems

Configuration and Selection

The product name, model identifier and order-code string should be checked together when selecting a specific item. Family-level values can be shared across configurations only where the source indicates that they are common; model-dependent values should be read from the corresponding configuration before purchase or installation. For this Excel row, the catalog identity is FGX Magnetic Float Level Transmitter.

This content is written from the manufacturer information associated with the cited FINETEK family source and does not add unsupported operating values or unrelated product specifications.

Technical Highlights

The FGX Magnetic Float Level Transmitter configuration is identified by its complete product name, model and order code. The source-aligned values below are included to make selection, specification review and system integration easier.

• Resolution: 0.25 in (6.35 mm) or 0.5 in (12.7 mm)
• Maximum length: 19.7 ft (6 m)
• Output: 4–20 mA, 2-wire loop or 3-wire resistance
• Sensing method: Reed switches distributed along the measuring length
• Protection / construction: Sensing elements protected with plastic packaging
• Specific gravity: Greater than 0.45
• Optional transmitter: TAB-2100 for 0/4–20 mA
