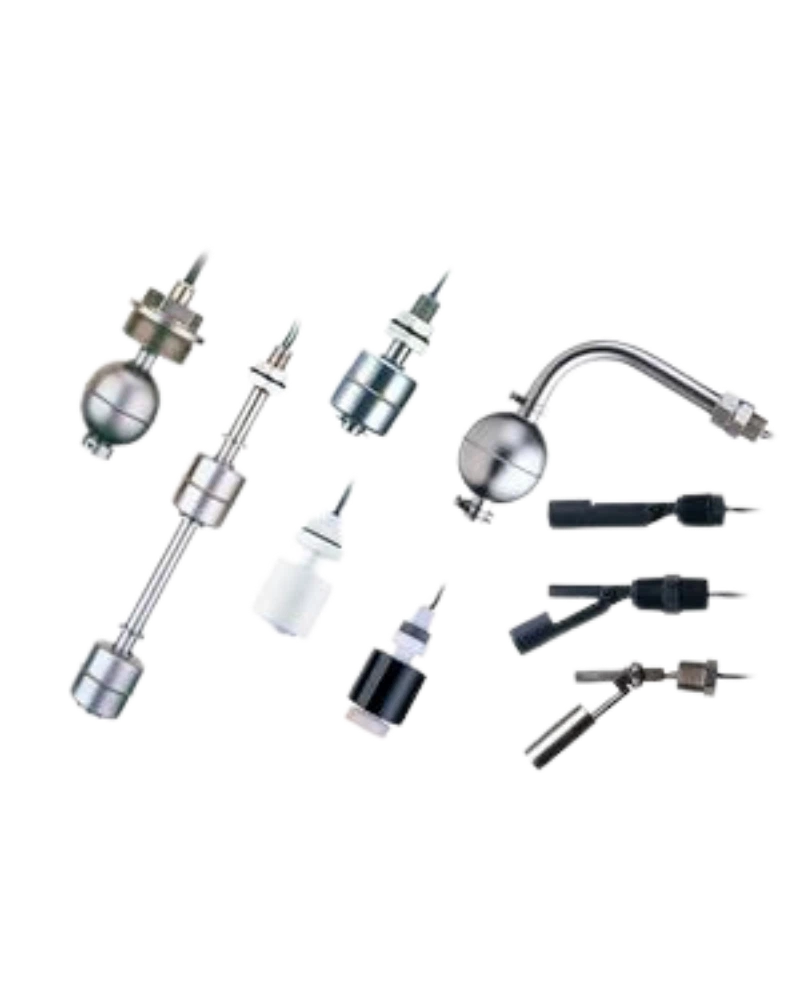

FDM Mini Float Level Switch - F CH61PD - FCM10000-H6180D is a FINETEK FDM Mini Float Level Switch configuration identified in the catalog by F CH61PD and order code FCM10000 - H6180D. The source documentation describes the operating method, product configuration options and technical limits for the family. This page content is therefore centered on the actual F CH61PD identity rather than a generic description of the FINETEK range.
Compact buoyancy and magnetism based point-level switching using a float-mounted magnet and stationary reed switch. The listed design is intended to provide a usable process signal for integration into plant instrumentation, control, monitoring or protection systems, depending on the selected configuration.
The supplied FineTek source material reports the following technical values for this family. Where the manufacturer shows more than one value because the range depends on model, construction, output or installation option, the complete range is retained rather than assigning one value to every variant.
The FDM Mini Float Level Switch family is built around the operating principle above and the configuration options documented by FINETEK. The main characteristics relevant to selection are summarized below.
FINETEK identifies this family for applications such as those listed below. These are application areas supported by the manufacturer's published product information and are not intended as a substitute for application-specific engineering review.
The product name, model identifier and order-code string should be checked together when selecting a specific item. Family-level values can be shared across configurations only where the source indicates that they are common; model-dependent values should be read from the corresponding configuration before purchase or installation. For this Excel row, the catalog identity is FDM Mini Float Level Switch - F CH61PD - FCM10000-H6180D with order code FCM10000 - H6180D.
This content is written from the manufacturer information associated with the cited FINETEK family source and does not add unsupported operating values or unrelated product specifications.
The FDM Mini Float Level Switch - F CH61PD - FCM10000-H6180D configuration is identified by its complete product name, model and order code. The source-aligned values below are included to make selection, specification review and system integration easier.
Model: F CH61PD. Order code: FCM10000-H6180D. The complete configuration should be matched to the required process conditions, installation arrangement and connected instrumentation.
| Specification | Details |
|---|---|
| Product name | FDM Mini Float Level Switch - F CH61PD - FCM10000-H6180D |
| Model / variant | F CH61PD |
| Order code / configuration | FCM10000 - H6180D |
| Switching capacity | 50 W, SPST max. |
| Switching voltage | 240 VAC / 200 VDC max. |
| Switching current | 0.5 A max. |
| Carry current | 1 A max. |
| Maximum pressure | 5 kg/cm² |
| Operating temperature | -20 to 120 °C; maximum 200 °C stated for the family |
| Material examples | FDMH50 SUS304; FDMH56 SUS316L; FDMH60 SUS304; FDMH66 SUS316L |
| Suitable specific gravity | 0.92 for FDMH50/56; 0.75 for FDMH60/66 |
| Lead wire | XLPE, UL 3266 AWG22 |
| Stem length examples | 110 mm or 136 mm depending configuration |
