Product Overview

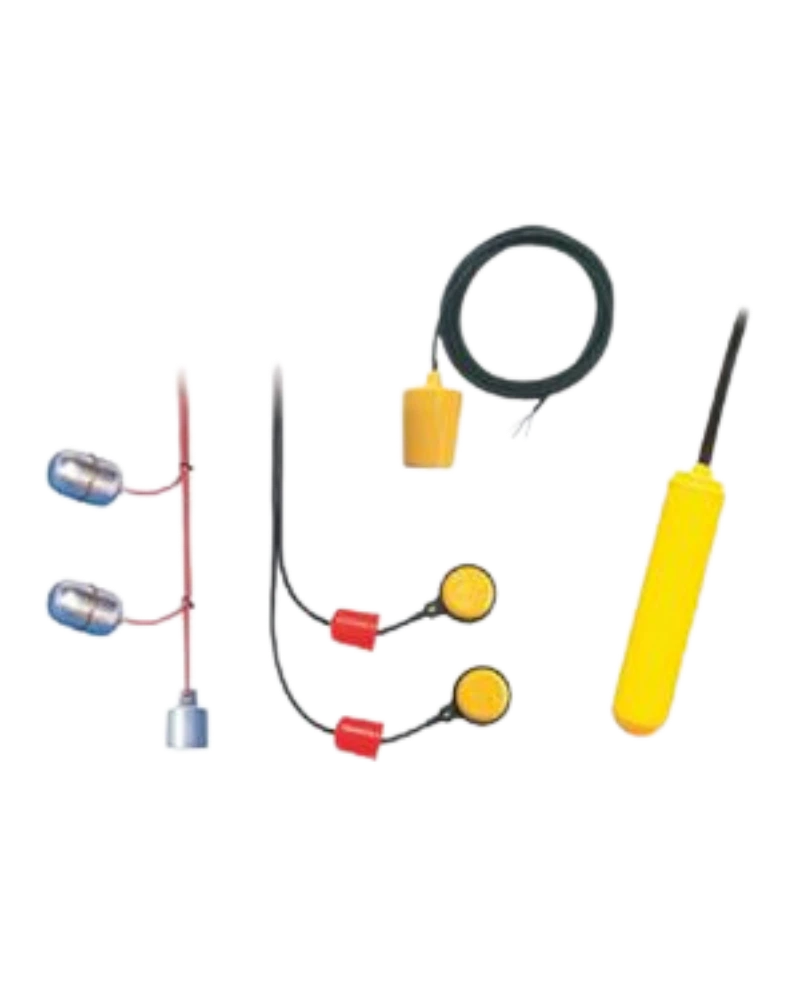

FAB Cable Float Level Switch - FAJ - FAX10100 - CFBP2 is a FINETEK FAB Cable Float Level Switch configuration identified in the catalog by FAJ and order code FAX10100 - CFBP2. The source documentation describes the operating method, product configuration options and technical limits for the family. This page content is therefore centered on the actual FAJ identity rather than a generic description of the FINETEK range.

Cable float switching using buoyancy and an internal steel ball, with micro, reed or mercury contacts depending on configuration. The listed design is intended to provide a usable process signal for integration into plant instrumentation, control, monitoring or protection systems, depending on the selected configuration.

Technical Capabilities

The supplied FineTek source material reports the following technical values for this family. Where the manufacturer shows more than one value because the range depends on model, construction, output or installation option, the complete range is retained rather than assigning one value to every variant.

• Contact rating: 10 A / 250 VAC standard; 15 A / 250 VAC available on listed configurations
• Contact form: NO / NC / SPDT
• Specific gravity: 0.6
• Pressure: 2 kg/cm²
• Protection: IP68
• Actuation angle: 28° ±2°
• Maximum probe length: 10,000 mm / 10 m for FAC
• Operating temperature: FAC/FAR -10 to 80 °C; FAP 0 to 60 °C
• Insulation resistance: Minimum 100 MΩ
• Contact resistance: Maximum 100 mΩ + 70 mΩ/m

Design and Features

The FAB Cable Float Level Switch family is built around the operating principle above and the configuration options documented by FINETEK. The main characteristics relevant to selection are summarized below.

• Single and multiple float configurations
• Micro, reed or mercury switching options
• Long-distance detection
• Chemical-resistant material options
• IP68 construction
• Suitable for low-specific-gravity liquids

Applications

FINETEK identifies this family for applications such as those listed below. These are application areas supported by the manufacturer's published product information and are not intended as a substitute for application-specific engineering review.

• Wastewater
• Drainage systems
• Pump control
• Petrochemical
• Chemical processing
• Tanks and containers

Configuration and Selection

The product name, model identifier and order-code string should be checked together when selecting a specific item. Family-level values can be shared across configurations only where the source indicates that they are common; model-dependent values should be read from the corresponding configuration before purchase or installation. For this Excel row, the catalog identity is FAB Cable Float Level Switch - FAJ - FAX10100 - CFBP2 with order code FAX10100 - CFBP2.

This content is written from the manufacturer information associated with the cited FINETEK family source and does not add unsupported operating values or unrelated product specifications.

Technical Highlights

The FAB Cable Float Level Switch - FAJ - FAX10100 - CFBP2 configuration is identified by its complete product name, model and order code. The source-aligned values below are included to make selection, specification review and system integration easier.

• Pressure: 2 kg/cm²
• Protection: IP68
• Maximum probe length: 10,000 mm / 10 m for FAC
• Operating temperature: FAC/FAR -10 to 80 °C; FAP 0 to 60 °C
• Wire voltage: 600 VAC
• Float materials: PP, PVC and 304SS options
• Contact rating: 10 A / 250 VAC standard; 15 A / 250 VAC available on listed configurations
• Contact form: NO / NC / SPDT
• Specific gravity: 0.6
• Actuation angle: 28° ±2°

Product Identification

Model: FAJ. Order code: FAX10100. The complete configuration should be matched to the required process conditions, installation arrangement and connected instrumentation.
