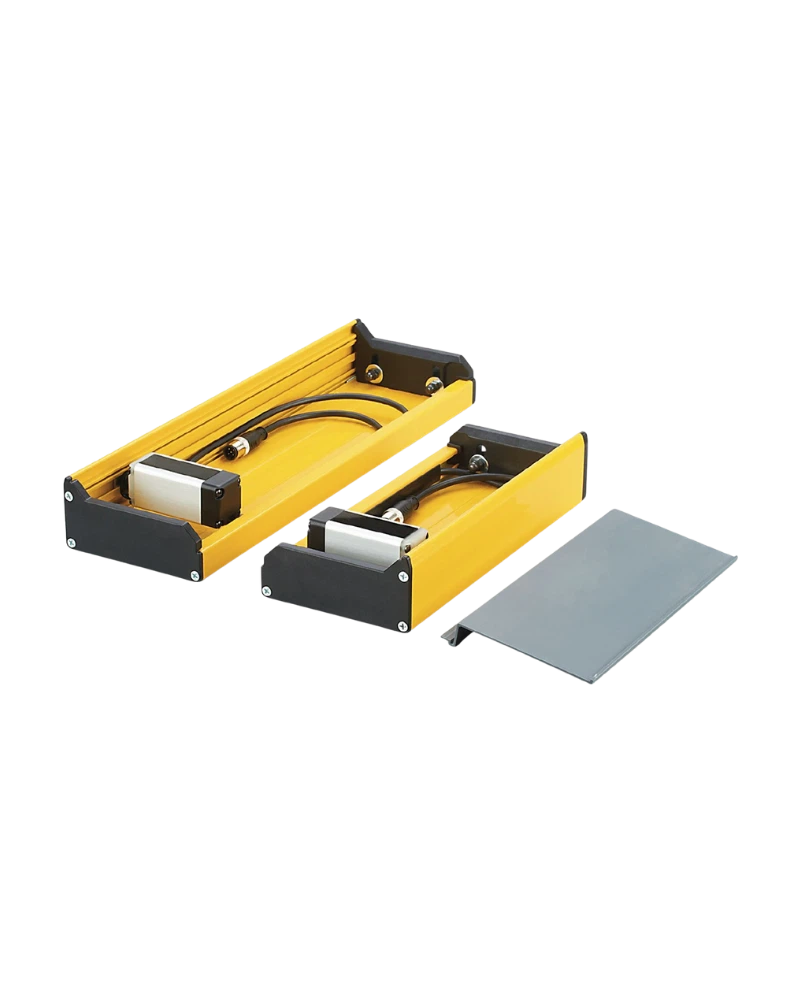

The IFM EY5020 2X-THROUGH-MULTIBEAM-SENSORS is a muting arm set designed for crossbeam muting applications using two through-beam multi-beam sensors. It provides controlled detection of materials passing through a safeguarded machine area and is suitable for compatible safety light curtains or safety light grids. With infrared sensing, a monitoring range of less than 5 m, 19.2–28.8 V DC operation and IP65 protection, it is suited to industrial machine-safety, conveyor and material-handling applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EY5020 2X-THROUGH-MULTIBEAM-SENSORS is a muting arm set designed for crossbeam muting applications in industrial machine-safety and automation systems. It uses two through-beam multi-beam sensors to detect suitable material as it passes through a safeguarded area.
The sensing arrangement is designed for applications where transported goods need to pass through a protected machine entrance or exit while the compatible safety system performs the required muting function.
IFM EY5020 muting arm set
Model: 2X-THROUGH-MULTIBEAM-SENSORS
Crossbeam muting arrangement
Two through-beam multi-beam sensors
Infrared sensing principle
Monitoring range less than 5 m
19.2–28.8 V DC operating voltage
PNP electrical design
Dark-on output function
IP65 protection rating
-30 °C to +55 °C ambient temperature range
M12 A-coded connections
Reverse-polarity protection
Short-circuit protection
Overload protection
Suitable for compatible safety light curtains
Suitable for compatible safety light grids
Designed for controlled material transfer
Suitable for conveyor automation
Suitable for machine loading and unloading
Suitable for industrial machine-safety applications
The muting arm set provides a crossbeam sensing arrangement using two through-beam multi-beam sensors. The sensors are positioned to monitor the movement of suitable goods through a safeguarded machine area.
The less-than-5 m monitoring range provides installation flexibility for suitable machine entrances, conveyor systems and material-transfer points where a longer sensing distance is required.
The multi-beam sensing arrangement can be useful when detecting objects or loads with varying shapes and dimensions as they pass through the monitored area.
The two multi-beam sensors are arranged crosswise to create the required detection geometry for compatible muting applications.
As suitable material passes through the monitored area, the sensor beams are interrupted according to the movement and dimensions of the transported goods. The resulting signals can be used by the compatible safety system for the defined muting sequence.
Correct sensor positioning, alignment and muting configuration are essential for reliable operation and must follow the manufacturer's installation requirements.
The muting arm set can be combined with compatible safety light curtains or safety light grids as part of a complete machine-safety installation.
It provides the sensing arrangement required for suitable material-transfer applications, helping the safety system identify intended goods movement through the protected area.
The complete safety system must be designed, configured and validated according to applicable machine-safety requirements.
The set is suitable for applications where materials or goods need to pass into or out of a safeguarded machine area without unnecessarily interrupting the safety protection function.
Typical applications include automated production lines, conveyor entrances and exits, pallet handling areas, packaging systems and machine loading or unloading points.
The two through-beam multi-beam sensors can be installed at suitable conveyor transfer points to monitor goods moving through a protected area.
The less-than-5 m monitoring range can provide additional installation flexibility for conveyor systems with wider machine entrances or longer distances between the sensing components.
The muting arm set can be used at suitable machine loading and unloading points where materials need to enter or leave a safeguarded zone.
It can support automated material-flow applications when correctly integrated with compatible safety light curtains, safety controllers and machine-control systems.
The set can form part of Industrial automation systems in UAE where machine safety and controlled material transfer are important requirements.
For Industrial automation companies in UAE and Industrial automation companies UAE, it provides a dedicated muting accessory for compatible safety protection systems.
It can complement safety controllers, conveyors, PLCs, machine guarding systems and other Industrial Automation Components UAE.
For an Industrial Automation Supplier in UAE or Industrial Automation Suppliers UAE, the set can be supplied as a safety-system accessory for machine builders, system integrators and manufacturing facilities.
It can form part of an Industrial Automation Equipment UAE portfolio alongside safety light curtains, safety light grids, controllers, sensors and material-handling equipment.
The product is relevant to an Industrial Sensors Supplier UAE portfolio where industrial photoelectric sensing and machine-safety accessories are supplied.
Its through-beam multi-beam sensing arrangement provides a specialized solution for controlled material detection and muting applications.
The system uses through-beam photoelectric sensing, making it relevant to Photoelectric Sensors and industrial optical-sensing applications.
For a Proximity Sensors Supplier UAE or Sensor Supplier UAE, it can complement a wider range of industrial sensing and machine-safety products.
The set can form part of Industrial Equipment & Supplies, Industrial Equipment & Supplies in UAE, Industrial Equipment & Supplies suppliers and Industrial Equipment in UAE portfolios.
It is particularly relevant to machine-safety equipment, factory automation systems, conveyor automation and automated material handling.
The muting arm set can complement pneumatic machinery where automated material transfer takes place through safeguarded machine areas.
For a Pneumatic Components Supplier in Dubai, Pneumatic Components Supplier UAE, Pneumatic Cylinder Supplier UAE or Pneumatic Actuators UAE, it can form part of compatible machine-safety architectures where pneumatic equipment is combined with conveyors and automated handling systems.
The set can complement automated industrial systems where safety sensing and controlled material transfer are used alongside process or machine-control equipment.
It can therefore be relevant to portfolios operated by a Valve Supplier in Dubai, Valve Supplier UAE, Industrial Valve Supplier UAE, Gate Valve Supplier UAE, Ball Valve Supplier UAE and Butterfly Valve Supplier UAE.
It can also complement automation equipment supplied by Industrial Valve Manufacturers in UAE and Industrial Valve Manufacturers Supplier in UAE where compatible machine-safety sensing is required.
The muting system can form part of machine-safety architectures used alongside motor-control equipment and variable-frequency drives.
For a VFD Supplier UAE, Variable Frequency Drive Supplier UAE, Industrial VFD Supplier UAE or VFD Distributor UAE, it can complement suitable conveyor and automated machinery applications where controlled material transfer and machine safety are required.
It can also complement VFD Automation Solutions UAE, VFD Control Panel Supplier UAE and VFD for Industrial Motors UAE installations.
For companies providing Industrial automation solutions in UAE, the muting arm set provides a dedicated crossbeam sensing arrangement for compatible safety systems.
Its two through-beam multi-beam sensors, infrared sensing and less-than-5 m monitoring range make it suitable for compatible material-transfer and machine-safety applications.
The system is designed with IP65 protection, supporting use in suitable industrial environments where protection against dust and water jets is required within the specified conditions.
The -30 °C to +55 °C ambient temperature range provides flexibility for a broad range of suitable factory and machine environments.
Reverse-polarity, short-circuit and overload protection support reliable electrical operation when the product is correctly installed and integrated with compatible equipment.
The system operates from 19.2–28.8 V DC and uses an industrial M12 A-coded connection.
The PNP electrical design and dark-on output configuration allow integration with compatible industrial safety-control architectures where these signal characteristics are required.
Crossbeam muting configuration
Two through-beam multi-beam sensors
Infrared sensing
Monitoring range below 5 m
PNP electrical design
Dark-on output function
19.2–28.8 V DC operating voltage
IP65 protection
-30 °C to +55 °C operating temperature
M12 A-coded connections
Reverse-polarity protection
Short-circuit protection
Overload protection
Suitable for compatible safety light curtains
Suitable for compatible safety light grids
Suitable for conveyor automation
Suitable for automated material handling
Suitable for machine loading and unloading
Suitable for industrial machine-safety applications
| Feature | Specification |
|---|---|
| Product Code | EY5020 |
| Manufacturer | IFM electronic |
| Product Type | Muting Arm Set |
| Model / Description | 2X-THROUGH-MULTIBEAM-SENSORS |
| Muting Type | Crossbeam muting |
| Sensor Type | Through-beam multi-beam sensor |
| Number of Sensors | 2 |
| Sensing Principle | Through-beam photoelectric |
| Light Type | Infrared |
| Monitoring Range | < 5 m |
| Operating Voltage | 19.2–28.8 V DC |
| Electrical Design | PNP |
| Output Function | Dark-on |
| Protection Rating | IP65 |
| Ambient Temperature | -30 °C to +55 °C |
| Connection | M12 connector |
| Connector Coding | A-coded |
| Reverse-Polarity Protection | Yes |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Primary Application | Crossbeam muting for compatible safety light curtains and safety light grids |
| Typical Applications | Conveyor systems, material transfer, machine loading/unloading, factory automation and machine-safety applications |
