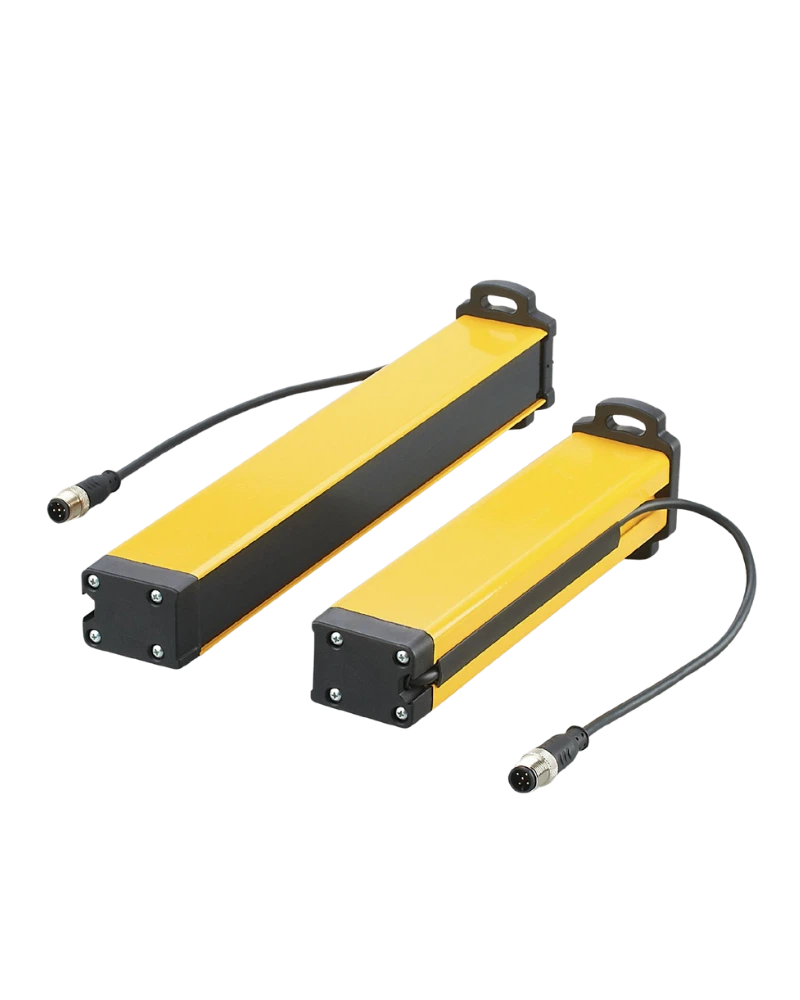

The IFM EY5011 4P-RETRO-REFLECTIVE-SENSORS is a muting arm set designed for safety light grids with a muting function. It uses four parallel retro-reflective photoelectric sensors with infrared light for sequential four-stage muting. With a monitoring range of less than 2.5 m, 19.2–28.8 V DC operating voltage, IP65 protection and -30 °C to +55 °C ambient temperature, it is suitable for machine safety, material handling and industrial automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EY5011 4P-RETRO-REFLECTIVE-SENSORS is a muting arm set designed for use with compatible safety light grids and safety systems. It provides a sequential muting arrangement with four parallel retro-reflective sensors, allowing suitable materials to pass through a safeguarded area while maintaining the required safety-system functionality.
The system uses infrared light with a wavelength of 940 nm and operates according to the retro-reflective sensing principle. The four sensing stages are arranged in parallel to provide sequential detection during material transfer.
The set is designed for a monitoring range of less than 2.5 m and provides IP65 protection. Its specified ambient operating temperature is -30 °C to +55 °C, making it suitable for a broad range of compatible industrial environments.
IFM EY5011 muting arm set
Model: 4P-RETRO-REFLECTIVE-SENSORS
Sequential muting with four stages
Four parallel retro-reflective sensors
Infrared sensing principle
940 nm infrared wavelength
Monitoring range less than 2.5 m
19.2–28.8 V DC operating voltage
Approximately 60 mA current consumption
PNP electrical design
Dark-on output function
Up to 100 mA permanent switching current
Maximum switching-output voltage drop of 0.5 V
Reverse-polarity protection
Short-circuit protection
Overload protection
IP65 protection rating
-30 °C to +55 °C ambient temperature range
Protection class III
M12 A-coded connections
Blue and red connector identification
Suitable for safety light grids with muting function
Quick and easy mounting directly on compatible safety light grids
CE-compliant product
The muting arm set is designed for sequential muting with four parallel retro-reflective sensors. This configuration provides multiple sensing stages for detecting suitable material as it passes through a protected area.
The retro-reflective sensing principle uses an optical beam directed toward a reflector. When the beam is interrupted by the transported object, the sensor changes its output state according to its dark-on configuration.
The less-than-2.5 m monitoring range provides flexibility for suitable machine entrances, conveyor systems and material-transfer points.
The IP65 protection rating supports use in suitable industrial environments where protection against dust and water jets is required within the specified operating conditions. The -30 °C to +55 °C temperature range provides additional flexibility for factory and machine installations.
The four-sensor arrangement provides sequential muting with four parallel retro-reflective sensors.
The sensing stages are positioned to monitor the movement of suitable goods through the safeguarded area. Sequential detection allows the compatible safety system to recognize the intended material-transfer sequence.
Correct installation, sensor alignment and muting configuration are essential for the safe operation of the complete machine-safety system.
The set is specifically intended for compatible safety light grids with muting functionality. It can be mounted directly on the safety light grid, providing a practical installation arrangement for suitable machine-safety applications.
The four sensing stages can support controlled material transfer through safeguarded machine entrances, conveyor passages and other suitable protected areas.
The complete safety installation should be designed and validated according to the manufacturer's instructions and applicable machine-safety requirements.
The muting arm set is suitable for applications where goods or materials need to pass through a safeguarded area without unnecessarily interrupting the safety protection function.
Typical applications include conveyor systems, automated production lines, machine loading and unloading points, pallet handling systems and material-transfer stations.
The four retro-reflective sensing stages can be integrated into suitable conveyor applications where materials need to pass through a protected machine area.
The sequential arrangement can help identify the intended movement of transported goods and provide the required sensing signals to compatible safety-control equipment.
The set can be used at suitable machine loading and unloading points where materials need to enter or leave a safeguarded area.
It can complement safety light grids, machine controllers and material-handling equipment in automated production environments.
The set can form part of Industrial automation systems in UAE where machine safety and controlled material transfer are important requirements.
For Industrial automation companies in UAE and Industrial automation companies UAE, it provides a dedicated muting accessory for compatible safety light-grid installations.
It can complement safety controllers, conveyors, PLC-based control systems, machine guarding equipment and other Industrial Automation Components UAE.
For an Industrial Automation Supplier in UAE or Industrial Automation Suppliers UAE, the set can be supplied as a safety-system accessory for machine builders, system integrators and manufacturing facilities.
It can form part of an Industrial Automation Equipment UAE portfolio alongside safety light grids, controllers, sensors and material-handling equipment.
The product is relevant to an Industrial Sensors Supplier UAE portfolio where photoelectric sensing and machine-safety accessories are supplied.
Its four retro-reflective sensing stages provide a specialized solution for sequential muting applications rather than conventional proximity detection.
The system uses retro-reflective photoelectric sensing, making it relevant to Photoelectric Sensors and industrial optical-sensing applications.
For a Proximity Sensors Supplier UAE or Sensor Supplier UAE, it can complement a wider portfolio of industrial sensing and machine-safety products.
The set can form part of Industrial Equipment & Supplies, Industrial Equipment & Supplies in UAE, Industrial Equipment & Supplies suppliers and Industrial Equipment in UAE portfolios.
It is particularly relevant to machine-safety equipment, factory automation systems, conveyor automation and automated material handling.
The muting arm set can complement pneumatic machinery where automated material transfer takes place through safeguarded machine areas.
For a Pneumatic Components Supplier in Dubai, Pneumatic Components Supplier UAE, Pneumatic Cylinder Supplier UAE or Pneumatic Actuators UAE, it can form part of compatible machine-safety architectures where pneumatic equipment is combined with conveyors and automated handling systems.
The set can complement automated industrial systems where safety light grids and controlled material transfer are used alongside process or machine-control equipment.
It can therefore be relevant to portfolios operated by a Valve Supplier in Dubai, Valve Supplier UAE, Industrial Valve Supplier UAE, Gate Valve Supplier UAE, Ball Valve Supplier UAE and Butterfly Valve Supplier UAE.
It can also complement automation equipment supplied by Industrial Valve Manufacturers in UAE and Industrial Valve Manufacturers Supplier in UAE where compatible machine-safety sensing is required.
The muting system can form part of machine-safety architectures used alongside motor-control equipment and variable-frequency drives.
For a VFD Supplier UAE, Variable Frequency Drive Supplier UAE, Industrial VFD Supplier UAE or VFD Distributor UAE, it can complement suitable conveyor and automated machinery applications where controlled material transfer and machine safety are required.
It can also complement VFD Automation Solutions UAE, VFD Control Panel Supplier UAE and VFD for Industrial Motors UAE installations.
For companies providing Industrial automation solutions in UAE, the muting arm set provides a specialized four-stage sensing arrangement for compatible safety light-grid systems.
Its four parallel retro-reflective sensors, infrared sensing, less-than-2.5 m monitoring range and IP65 protection make it suitable for compatible material-transfer and machine-safety applications.
The system provides IP65 protection, supporting use in suitable industrial environments where protection against dust and water jets is required.
The specified operating temperature range of -30 °C to +55 °C allows use across a broad range of suitable factory and machine environments.
Reverse-polarity, short-circuit and overload protection support reliable electrical operation when the product is correctly installed and integrated with compatible equipment.
The system operates from 19.2–28.8 V DC and has a specified current consumption of approximately 60 mA. It uses PNP electrical design with a dark-on output function.
The electrical connections use M12 A-coded connectors, with the transmitter connections identified by blue and red moulded connector bodies.
Sequential four-stage muting
Four parallel retro-reflective sensors
Infrared sensing
940 nm wavelength
Monitoring range below 2.5 m
PNP electrical design
Dark-on output function
19.2–28.8 V DC operating voltage
100 mA permanent switching current
IP65 protection
-30 °C to +55 °C operating temperature
Protection class III
M12 A-coded connections
Reverse-polarity protection
Short-circuit protection
Overload protection
Suitable for safety light grids with muting function
Quick mounting directly on compatible safety light grids
Suitable for conveyor automation
Suitable for automated material handling
Suitable for machine loading and unloading
| Feature | Specification |
|---|---|
| Product Code | EY5011 |
| Manufacturer | IFM electronic |
| Product Type | Muting Arm Set |
| Model / Description | 4P-RETRO-REFLECTIVE-SENSORS |
| Application | Sequential muting with four parallel retro-reflective sensors |
| Function Principle | Retro-reflective sensor |
| Sensor Type | Retro-reflective photoelectric sensor |
| Number of Sensors | 4 |
| Type of Light | Infrared light |
| Wavelength | 940 nm |
| Monitoring Range | < 2.5 m |
| Operating Voltage | 19.2–28.8 V DC |
| Current Consumption | 60 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Electrical Design | PNP |
| Output Function | Dark-on mode |
| Maximum Voltage Drop – Switching Output | 0.5 V DC |
| Permanent Current Rating – Switching Output | 100 mA |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Protection Rating | IP65 |
| Ambient Temperature | -30 °C to +55 °C |
| EMC Standard | EN 60947-5-2 |
| Material | Aluminium, polypropylene |
| Lens Material | Polycarbonate-ABS |
| Weight | Approx. 3530 g |
| Pack Quantity | 4 pcs. |
| Connection – Transmitter 1 | 1 × M12 connector, A-coded, blue moulded body |
| Connection – Transmitter 2 | 1 × M12 connector, A-coded, red moulded body |
| Primary Application | Sequential muting for compatible safety light grids |
| Typical Applications | Conveyor systems, material transfer, machine loading/unloading, factory automation and machine-safety applications |
