The IFM EY5010 2X-THROUGH-BEAM-SENSORS is a muting arm set designed for crossbeam muting applications with two through-beam photoelectric sensors. It uses infrared sensing to support controlled muting of compatible safety light curtains or safety light grids during material transfer. With a monitoring range of less than 2.5 m, IP65 protection, 19.2–28.8 V DC operating voltage and -30 °C to +55 °C ambient temperature, it is suitable for machine-safety and industrial automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EY5010 2X-THROUGH-BEAM-SENSORS is a muting arm set designed for crossbeam muting applications in industrial machine-safety and automation systems. It incorporates two through-beam photoelectric sensors for controlled detection of materials passing through a safeguarded area.
The system uses infrared through-beam sensing technology. The two sensors are positioned crosswise so that their sensing beams intersect. For the intended crossbeam muting sequence, both beams are interrupted simultaneously by the transported material. This arrangement is suitable for applications where goods need to pass through a protected machine area while the compatible safety system performs the required muting function.
The set provides a monitoring range of less than 2.5 m and an IP65 protection rating. It is designed for an ambient temperature range of -30 °C to +55 °C, supporting use in suitable industrial environments.
The electrical supply range is 19.2–28.8 V DC, with approximately 120 mA total current consumption. The system also provides reverse-polarity, short-circuit and overload protection.

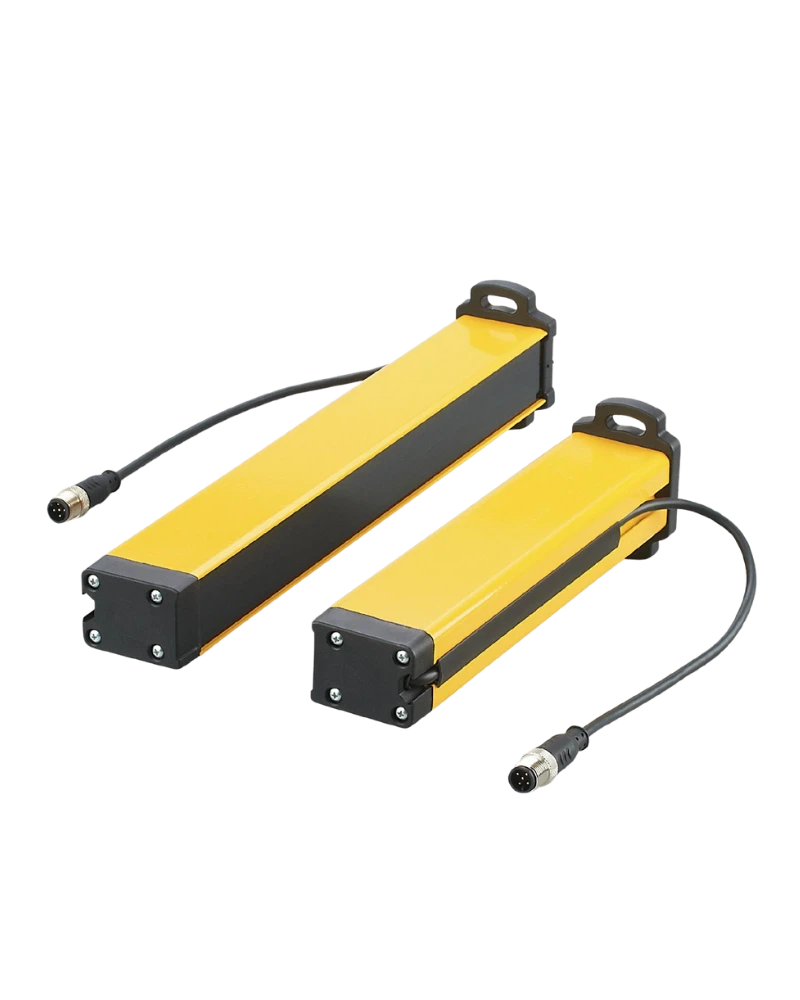

IFM EY5010 muting arm set
Model: 2X-THROUGH-BEAM-SENSORS
Crossbeam muting arrangement
Two through-beam photoelectric sensors
Infrared sensing principle
Monitoring range less than 2.5 m
19.2–28.8 V DC operating voltage
Approximately 120 mA total current consumption
Approximately 60 mA transmitter current consumption
Approximately 60 mA receiver current consumption
IP65 protection rating
-30 °C to +55 °C ambient temperature range
M12 A-coded connector
Reverse-polarity protection
Short-circuit protection
Overload protection
Suitable for compatible safety light curtains
Suitable for compatible safety light grids
Designed for controlled material transfer
Suitable for conveyor automation
Suitable for machine loading and unloading
Suitable for industrial machine-safety applications
The muting arm set is designed to provide controlled object detection for crossbeam muting applications. The two through-beam sensors are positioned crosswise, creating intersecting detection beams. Both beams are intended to be interrupted simultaneously by suitable goods during the defined muting sequence.
The less-than-2.5 m monitoring range provides installation flexibility for suitable machine entrances, exits and material-transfer points.
The IP65 protection rating supports use in suitable industrial environments where protection against dust and water jets is required within the specified conditions.
The -30 °C to +55 °C operating temperature range provides flexibility for a variety of factory and machine environments.
The crossbeam arrangement uses two through-beam photoelectric sensors positioned so that their detection beams intersect.
For the intended application, suitable goods must interrupt both beams simultaneously. This configuration can help distinguish the intended material movement from other objects or movements around the protected machine entrance.
Correct sensor positioning and muting configuration are essential and must follow the manufacturer's installation instructions and the requirements of the complete safety system.
The muting arm set can be combined with compatible safety light curtains or safety light grids as part of a complete machine-safety installation.
The sensors provide the detection arrangement required for suitable material-transfer applications, allowing the compatible safety system to distinguish intended goods movement from conditions requiring continued protective detection.
The complete safety installation must be designed, configured and validated according to applicable machine-safety requirements.
The set is suitable for applications where materials or goods need to pass into or out of a safeguarded machine area.
Typical applications include automated production lines, conveyor entrances and exits, pallet handling areas and machine loading or unloading points where controlled muting is required.
The sensors can be positioned at suitable points along conveyor systems to detect appropriately positioned goods as they pass through the muting area.
This can support integration with compatible safety-control systems used in automated material handling and production processes.
The muting arm set can be used at suitable machine loading and unloading points where materials need to enter or leave a safeguarded zone.
It can support automated material-flow applications when correctly integrated with the compatible safety light curtain, safety controller and machine-control architecture.
The set can form part of Industrial automation systems in UAE where machine safety and controlled material transfer are important requirements.
For Industrial automation companies in UAE and Industrial automation companies UAE, it provides a dedicated muting accessory for compatible safety protection systems.
It can complement industrial automation equipment including safety light curtains, safety controllers, conveyors, PLCs and machine-control systems.
For an Industrial Automation Supplier in UAE, the set can be supplied as a safety-system accessory for machine builders, system integrators and manufacturing facilities.
It can form part of Industrial Automation Components UAE, Factory Automation Components and Industrial Automation Equipment UAE portfolios.
The product is relevant to an Industrial Sensors Supplier UAE portfolio where safety-related photoelectric sensing and muting accessories are supplied.
It can complement industrial sensing products used for machine safety, material detection and automated production processes.
The system uses through-beam photoelectric sensing, making it relevant to Photoelectric Sensors and industrial safety-sensing applications.
For a Proximity Sensors Supplier UAE or Sensor Supplier UAE, it can complement a wider portfolio of industrial sensing and machine-safety components.
The set can form part of Industrial Equipment & Supplies, Industrial Equipment & Supplies in UAE, Industrial Equipment & Supplies suppliers and Industrial Equipment in UAE portfolios.
It is particularly relevant to machine-safety equipment, factory automation systems and material-handling installations.
The muting arm set can complement pneumatic machinery where automated material transfer takes place through safeguarded machine areas.
For a Pneumatic Components Supplier in Dubai, Pneumatic Components Supplier UAE, Pneumatic Cylinder Supplier UAE or Pneumatic Actuators UAE, it can be incorporated into compatible machine-safety architectures where pneumatic equipment is combined with conveyors and automated handling systems.
The set can complement automated valve and industrial-control installations where compatible safety and proximity sensing is required.
It can therefore be relevant to portfolios operated by a Valve Supplier in Dubai, Valve Supplier UAE, Industrial Valve Supplier UAE, Gate Valve Supplier UAE, Ball Valve Supplier UAE and Butterfly Valve Supplier UAE.
It can also complement automation equipment supplied by Industrial Valve Manufacturers in UAE and Industrial Valve Manufacturers Supplier in UAE where compatible machine-safety sensing is required.
The muting system can form part of machine-safety architectures used alongside motor-control equipment and variable-frequency drives.
For a VFD Supplier UAE, Variable Frequency Drive Supplier UAE, Industrial VFD Supplier UAE or VFD Distributor UAE, it can complement suitable conveyor and automated machinery applications where safety protection and controlled material transfer are required.
It can also be relevant to VFD Automation Solutions UAE, VFD Control Panel Supplier UAE and VFD for Industrial Motors UAE installations.
For companies providing Industrial automation solutions in UAE, the muting arm set provides a dedicated sensing arrangement for compatible safety systems used in machinery, conveyors, assembly systems, material handling and production equipment.
Its crossbeam configuration, infrared through-beam sensing and less-than-2.5 m monitoring range make it suitable for compatible material-transfer and machine-safety applications.
The system provides IP65 protection, making it suitable for specified industrial environments where protection against dust and water jets is required.
The operating temperature range of -30 °C to +55 °C allows use across a broad range of suitable machine and factory environments.
Reverse-polarity, short-circuit and overload protection support reliable electrical operation when the product is correctly installed and integrated with compatible equipment.
The electrical supply range is 19.2–28.8 V DC with approximately 120 mA total current consumption.
The system uses an M12 A-coded connector for the receiver connection and is designed for integration into compatible industrial safety-control systems.
Crossbeam muting configuration
Two through-beam photoelectric sensors
Infrared sensing
Monitoring range below 2.5 m
Suitable for material-transfer applications
Suitable for compatible safety light curtains
Suitable for compatible safety light grids
IP65 protection
-30 °C to +55 °C operating temperature
19.2–28.8 V DC supply
M12 A-coded connection
Reverse-polarity protection
Short-circuit protection
Overload protection
Suitable for industrial machine-safety applications
Suitable for conveyor automation
Suitable for automated material handling
Suitable for machine loading and unloading
| Feature | Specification |
|---|---|
| Product Code | EY5010 |
| Manufacturer | IFM electronic |
| Product Type | Muting Arm Set |
| Model / Description | 2X-THROUGH-BEAM-SENSORS |
| Muting Type | Crossbeam muting |
| Sensor Type | Through-beam photoelectric sensors |
| Sensing Principle | Infrared |
| Number of Sensors | 2 |
| Monitoring Range | < 2.5 m |
| Operating Voltage | 19.2–28.8 V DC |
| Current Consumption | Approx. 120 mA total |
| Transmitter Current Consumption | Approx. 60 mA |
| Receiver Current Consumption | Approx. 60 mA |
| Output Electrical Design | PNP, dark-on; programmable |
| Output Load | Up to 100 mA |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Reverse-Polarity Protection | Yes |
| Protection Rating | IP65 |
| Ambient Temperature | -30 °C to +55 °C |
| Connection | M12 connector |
| Connector Coding | A-coded |
| EMC Standard | EN 60947-5-2 |
| Material | Aluminium, polypropylene, polycarbonate-ABS |
| Weight | Approx. 3000 g |
| Pack Quantity | 4 pcs. |
| Primary Application | Crossbeam muting for compatible safety light curtains and safety light grids |
| Typical Applications | Conveyor systems, material transfer, machine loading/unloading, factory automation and machine-safety applications |
