Explore performance details, construction highlights, applications, and technical information in one clear overview.

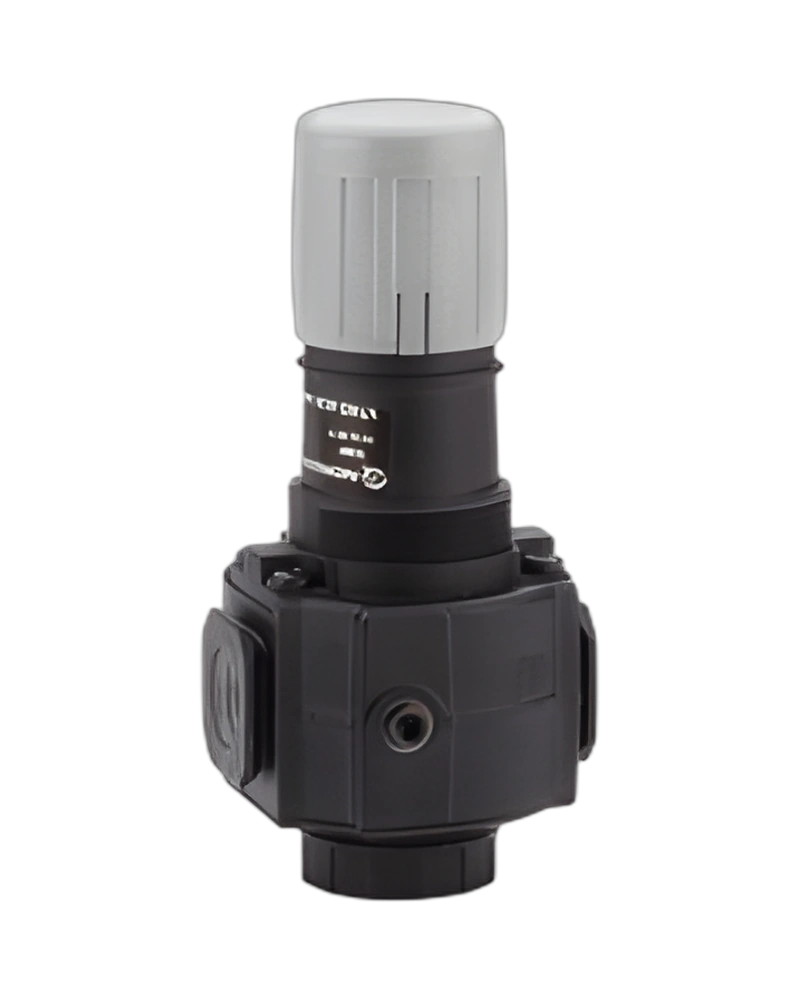

V72G-3GK-NMN is a NORGREN Excelon pressure relief valve, G3/8, 0.3-10 bar, without gauge configuration. This product page brings together the supplied configuration details and technical characteristics for this exact listed model, with the stated values retained for product selection and ordering.
The configuration is defined by Country of Origin: Mexico; Range: V72G. These values describe the selected arrangement and help distinguish this product from other variants within the range.
The operating characteristics include Media: Compressed air; Port Size: 3/8" ISO G; Outlet Pressure Adjustment: 0.3 ... 10 bar, 4 ... 145 psi; Operating Temperature: -34 ... 65 °C, -30 ... 149 °F; Gauge Port: 1/8" ISO Rc; Adjustment: Knob; Maximum Inlet Pressure: 20 bar, 290 psi. The supplied pressure, temperature, flow, media, drain, port and adjustment information is presented as stated for this configuration.
The construction information specifies Materials - Adjusting Knob: Acetal; Materials - Body: Zinc alloy; Materials - Bonnet: Acetal; Materials - Elastomers: Chloroprene rubber (CR). These entries describe the stated product materials and component details without adding unsupported compatibility or durability claims.
Additional product data includes Dimensions - Height: 98 mm; Dimensions - Length: 48.5 mm; Dimensions - Width: 50.5 mm; Weight: 0.33 kg. These values form part of the exact product configuration and provide useful catalogue information for selection.
Languages 0 Basket Products Industries
Media is specified as Compressed air. Port Size is specified as 3/8" ISO G. Outlet Pressure Adjustment is specified as 0.3 ... 10 bar, 4 ... 145 psi. Operating Temperature is specified as -34 ... 65 °C, -30 ... 149 °F. Gauge Port is specified as 1/8" ISO Rc. Adjustment is specified as Knob. Maximum Inlet Pressure is specified as 20 bar, 290 psi. Materials - Adjusting Knob is specified as Acetal. Materials - Body is specified as Zinc alloy. Materials - Bonnet is specified as Acetal. Materials - Elastomers is specified as Chloroprene rubber (CR). Dimensions - Height is specified as 98 mm. Dimensions - Length is specified as 48.5 mm. Dimensions - Width is specified as 50.5 mm. Weight is specified as 0.33 kg. Country of Origin is specified as Mexico. Range is specified as V72G.
| Specification | Value |
|---|---|
| Media | Compressed air |
| Port Size | 3/8" ISO G |
| Outlet Pressure Adjustment | 0.3 ... 10 bar, 4 ... 145 psi |
| Operating Temperature | -34 ... 65 °C, -30 ... 149 °F |
| Gauge Port | 1/8" ISO Rc |
| Adjustment | Knob |
| Maximum Inlet Pressure | 20 bar, 290 psi |
| Materials - Adjusting Knob | Acetal |
| Materials - Body | Zinc alloy |
| Materials - Bonnet | Acetal |
| Materials - Elastomers | Chloroprene rubber (CR) |
| Dimensions - Height | 98 mm |
| Dimensions - Length | 48.5 mm |
| Dimensions - Width | 50.5 mm |
| Weight | 0.33 kg |
| Country of Origin | Mexico |
| Range | V72G |
