Product Overview

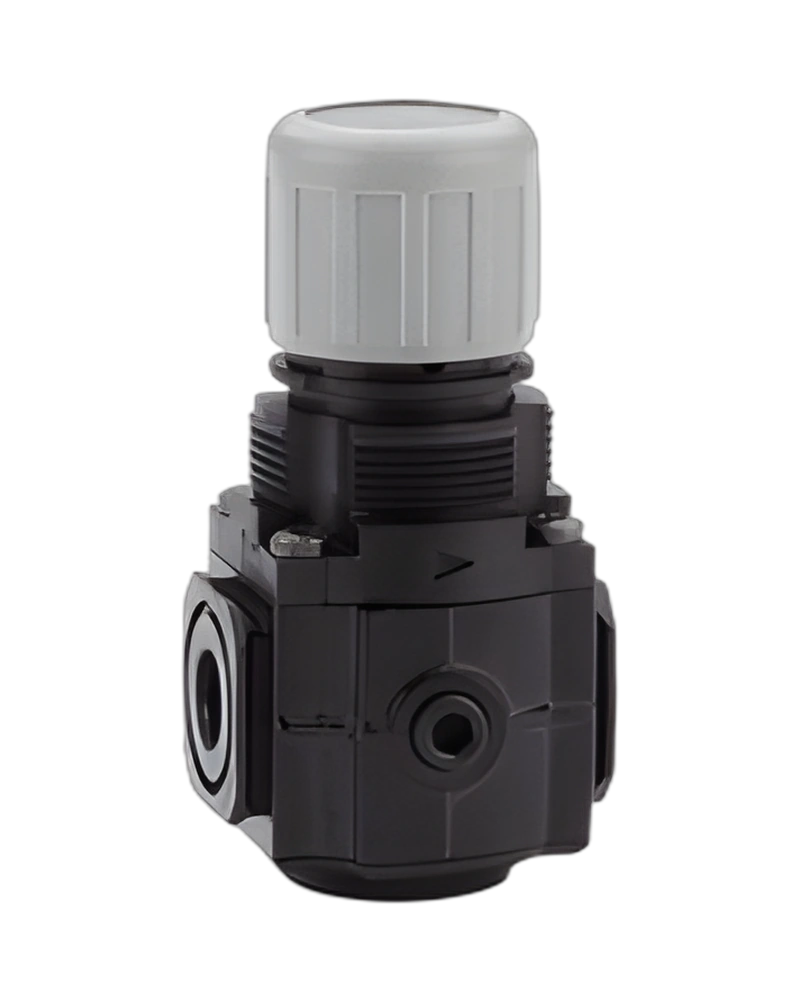

V72G-2GK-NMN is listed as Excelon pressure relief valve, G1/4, 0.3-10 bar, without gauge. The following sections present the recorded product configuration and technical values for this exact model.

Configuration and Technical Details

Medium: Compressed air; Port Size: G1/4; Outlet Pressure Adjustment: 0.3 ... 10 bar, 4 ... 145 psi; Operating Temperature: -34 ... 65 °C, -30 ... 149 °F; Gauge Port: Rc1/8; Adjustment: Knob; Maximum Inlet Pressure: 20 bar, 290 psi; Materials - Adjusting Knob: Acetal; Materials - Body: Zinc alloy; Materials - Bonnet: Acetal; Materials - Elastomers: Chloroprene rubber (CR); Dimensions - Height: 49 mm; Dimensions - Length: 98 mm; Dimensions - Width: 51 mm; Weight: 0.33 kg; Country of Origin: Mexico; Range: V72G

Technical Selection Information

Medium is specified as Compressed air. Port Size is specified as G1/4. Outlet Pressure Adjustment is specified as 0.3 ... 10 bar, 4 ... 145 psi. Operating Temperature is specified as -34 ... 65 °C, -30 ... 149 °F. Gauge Port is specified as Rc1/8. Adjustment is specified as Knob. Maximum Inlet Pressure is specified as 20 bar, 290 psi. Materials - Adjusting Knob is specified as Acetal. Materials - Body is specified as Zinc alloy. Materials - Bonnet is specified as Acetal. Materials - Elastomers is specified as Chloroprene rubber (CR). Dimensions - Height is specified as 49 mm. Dimensions - Length is specified as 98 mm. Dimensions - Width is specified as 51 mm. Weight is specified as 0.33 kg. Country of Origin is specified as Mexico. Range is specified as V72G.

Product Information

Languages 0 Basket Products

Catalogue Configuration Reference

The product record specifies Medium: Compressed air; Port Size: G1/4; Outlet Pressure Adjustment: 0.3 ... 10 bar, 4 ... 145 psi; Operating Temperature: -34 ... 65 °C, -30 ... 149 °F; Gauge Port: Rc1/8; Adjustment: Knob; Maximum Inlet Pressure: 20 bar, 290 psi; Materials - Adjusting Knob: Acetal; Materials - Body: Zinc alloy; Materials - Bonnet: Acetal; Materials - Elastomers: Chloroprene rubber (CR); Dimensions - Height: 49 mm; Dimensions - Length: 98 mm; Dimensions - Width: 51 mm; Weight: 0.33 kg; Country of Origin: Mexico; Range: V72G. These values identify the listed configuration and provide the technical information used for product selection.
