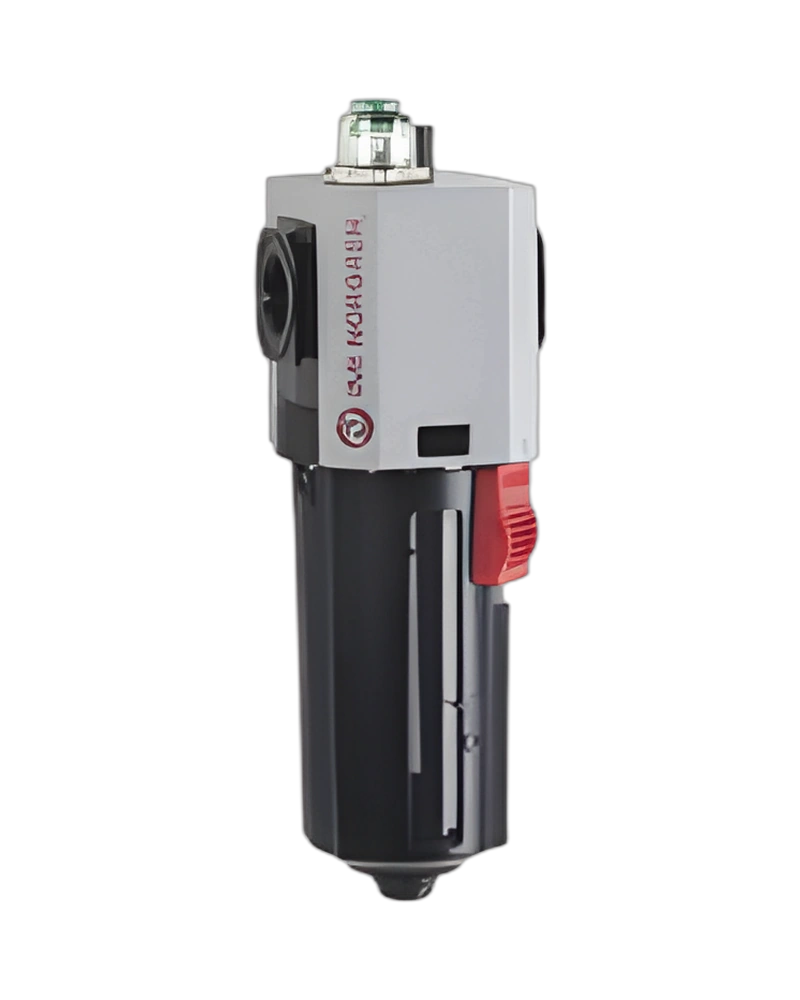

L84M-4AP-EDN is a NORGREN Excelon Plus micro fog lubricator, 1/2" PTF, Metal bowl closed configuration.
Medium: Compressed air only. Maximum Inlet Pressure: Polycarbonate bowl. Port Size: G3/8, G1/2, G3/4,. Port Size: 1/2”Pressure drop Δp (bar). Port Size: 1/2”. Port Size: 3/8”Pressure drop Δp (bar). Port Size: 3/8”. Operating Temperature: Polycarbonate bowl. Flow: Micro-fog : 73 dm3/s. Materials: Transparent Bowl: Polycarbonate. Maximum Supply Pressure: Polycarbonate bowl: 10 bar (145 psi) Metal bowl: 20 bar (290 psi). Bowl Material: 0,2 litre. Port Size: G3/8, G1/2, G3/4, 3/8 PTF, 1/2 PTF, 3/4 PTF. Flow: Micro-fog : 73 dm3/s Oil-fog: 91 dm3/s at port size: 1/2”, operating pressure: 6,3 bar (91 psi) and Δp: 0,5 bar (7.25 psi) Start point: 0,94 dm3/s. Operating Temperature: Polycarbonate bowl: -10 ... +60°C (14 ... +140°F) Metal bowl: -20 ... +65°C (-4 ... +149°F) Air supply must be dry enough to avoid ice formation at temperatures below +2°C (+35°F).. Materials: Transparent Bowl: Polycarbonate with Polyproplyene Guard. Metal Bowl: Die cast Aluminium with PA liquid level indicator lens Body: Die cast aluminium Body cover: ABS Sightdome: Transparent PA Bowl ‘o'- ring: Chloroprene.
The selected configuration specifies Medium as Compressed air only. This value is part of the product definition and should be considered together with the other stated configuration details when selecting this model.
For this configuration, Maximum Inlet Pressure is Polycarbonate bowl. The product content retains this value exactly as supplied for the selected model and does not substitute a value from another variant.
The product specification includes Port Size: G3/8, G1/2, G3/4,. This is one of the technical characteristics that defines the configuration presented on this product page.
The stated Port Size is 1/2”Pressure drop Δp (bar), forming part of the technical information associated with this exact product configuration.
The selected configuration specifies Port Size as 1/2”. This value is part of the product definition and should be considered together with the other stated configuration details when selecting this model.
| Specification | Value |
|---|---|
| Medium | Compressed air only |
| Maximum Inlet Pressure | Polycarbonate bowl |
| Port Size | G3/8, G1/2, G3/4, |
| Port Size | 1/2”Pressure drop Δp (bar) |
| Port Size | 1/2” |
| Port Size | 3/8”Pressure drop Δp (bar) |
| Port Size | 3/8” |
| Operating Temperature | Polycarbonate bowl |
| Flow | Micro-fog : 73 dm3/s |
| Materials | Transparent Bowl: Polycarbonate |
| Maximum Supply Pressure | Polycarbonate bowl: 10 bar (145 psi) Metal bowl: 20 bar (290 psi) |
| Bowl Material | 0,2 litre |
| Port Size | G3/8, G1/2, G3/4, 3/8 PTF, 1/2 PTF, 3/4 PTF |
| Flow | Micro-fog : 73 dm3/s Oil-fog: 91 dm3/s at port size: 1/2”, operating pressure: 6,3 bar (91 psi) and Δp: 0,5 bar (7.25 psi) Start point: 0,94 dm3/s |
| Operating Temperature | Polycarbonate bowl: -10 ... +60°C (14 ... +140°F) Metal bowl: -20 ... +65°C (-4 ... +149°F) Air supply must be dry enough to avoid ice formation at temperatures below +2°C (+35°F). |
| Materials | Transparent Bowl: Polycarbonate with Polyproplyene Guard. Metal Bowl: Die cast Aluminium with PA liquid level indicator lens Body: Die cast aluminium Body cover: ABS Sightdome: Transparent PA Bowl ‘o'- ring: Chloroprene |
