Product Overview

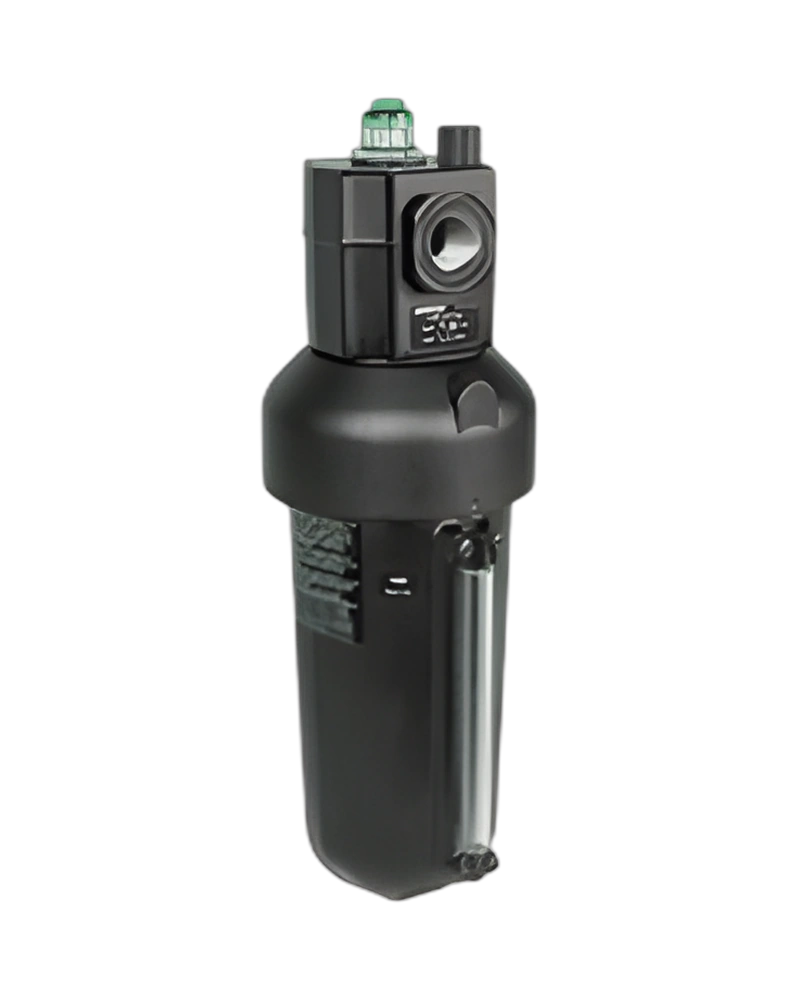

L82C-3AP-EDN is a NORGREN Excelon oil fog lubricator, 3/8 configuration. This product page brings together the supplied configuration details and technical characteristics for this exact listed model, with the stated values retained for product selection and ordering.

Configuration and Selection

The configuration is defined by Medium: Compressed air; Lubricator Fog Type: Oil fog; Country of Origin: Mexico; Range: L82C. These values describe the selected arrangement and help distinguish this product from other variants within the range.

Operating Characteristics

The operating characteristics include Port Size: 3/8 PTF; Drain Type: Closed bowl; Operating Temperature: -20 ... 65 °C, -4 ... 149 °F; Maximum Inlet Pressure: 17 bar, 246 psi; Flow: 24 dm3/s, 51 scfm. The supplied pressure, temperature, flow, media, drain, port and adjustment information is presented as stated for this configuration.

Construction and Materials

The construction information specifies Bowl Material: Zinc alloy; Bowl Capacity: 0.056 l; Materials - Body: Zinc alloy; Materials - Bowl: Zinc alloy; Materials - Elastomers: Nitrile rubber (NBR). These entries describe the stated product materials and component details without adding unsupported compatibility or durability claims.

Dimensions and Product Data

Additional product data includes Dimensions - Height: 186 mm; Dimensions - Length: 47 mm; Dimensions - Width: 52 mm; Weight: 0.4 kg. These values form part of the exact product configuration and provide useful catalogue information for selection.

Product Information

Languages 0 Basket Products Industries

Technical Specification Summary

Medium is specified as Compressed air. Port Size is specified as 3/8 PTF. Drain Type is specified as Closed bowl. Bowl Material is specified as Zinc alloy. Operating Temperature is specified as -20 ... 65 °C, -4 ... 149 °F. Maximum Inlet Pressure is specified as 17 bar, 246 psi. Lubricator Fog Type is specified as Oil fog. Bowl Capacity is specified as 0.056 l. Flow is specified as 24 dm3/s, 51 scfm. Materials - Body is specified as Zinc alloy. Materials - Bowl is specified as Zinc alloy. Materials - Elastomers is specified as Nitrile rubber (NBR). Dimensions - Height is specified as 186 mm. Dimensions - Length is specified as 47 mm. Dimensions - Width is specified as 52 mm. Weight is specified as 0.4 kg. Country of Origin is specified as Mexico. Range is specified as L82C.
