Product Overview

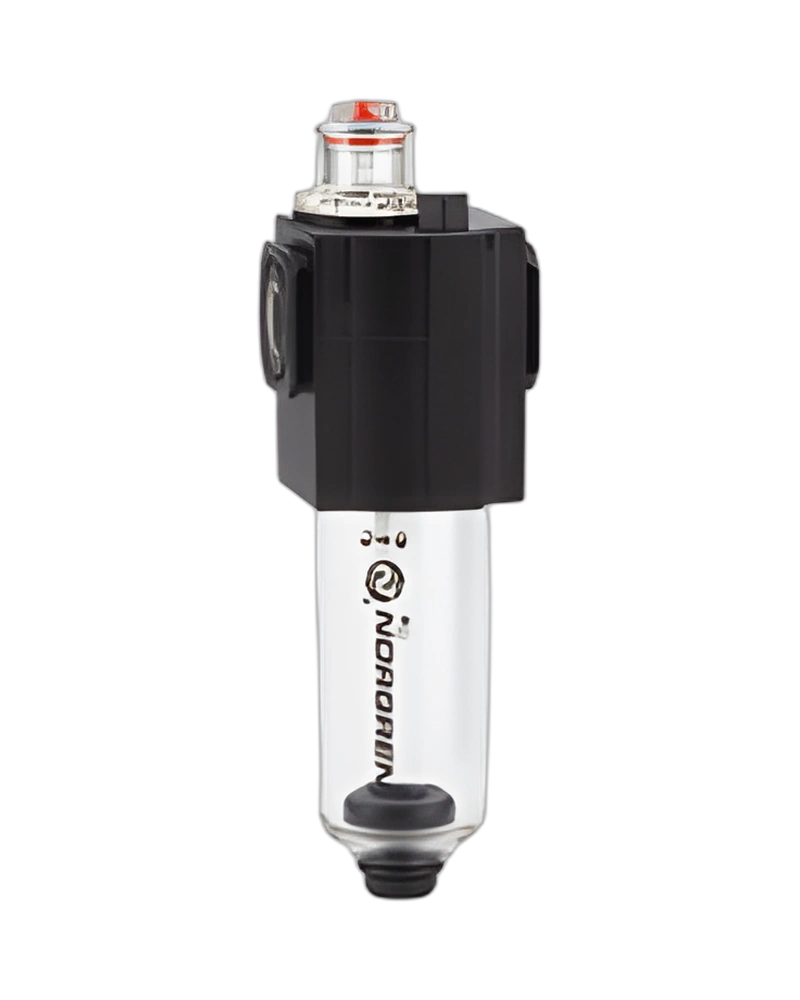

L73M-4GP-ETN is a NORGREN Excelon micro fog lubricator, G1/2, Plastic bowl closed configuration. This product page brings together the supplied configuration details and technical characteristics for this exact listed model, with the stated values retained for product selection and ordering.

Configuration and Selection

The configuration is defined by Medium: Compressed air; Lubricator Fog Type: Micro fog; Country of Origin: Mexico; Range: L73M. These values describe the selected arrangement and help distinguish this product from other variants within the range.

Operating Characteristics

The operating characteristics include Port Size: G1/2; Drain Type: Closed bowl; Operating Temperature: -34 ... 50 °C, -30 ... 122 °F; Maximum Inlet Pressure: 10 bar, 145 psi; Flow: 38 dm3/s, 81 scfm. The supplied pressure, temperature, flow, media, drain, port and adjustment information is presented as stated for this configuration.

Construction and Materials

The construction information specifies Bowl Material: Polycarbonate (PC); Bowl Capacity: 0.1 l; Materials - Body: Aluminium alloy; Materials - Bowl: Polycarbonate (PC); Materials - Elastomers: Chloroprene rubber (CR), Nitrile rubber (NBR). These entries describe the stated product materials and component details without adding unsupported compatibility or durability claims.

Dimensions and Product Data

Additional product data includes Dimensions - Height: 183 mm; Dimensions - Length: 62 mm; Dimensions - Width: 68 mm; Weight: 0.5 kg. These values form part of the exact product configuration and provide useful catalogue information for selection.

Product Information

Languages 0 Basket Products Industries

Technical Specification Summary

Medium is specified as Compressed air. Port Size is specified as G1/2. Drain Type is specified as Closed bowl. Bowl Material is specified as Polycarbonate (PC). Operating Temperature is specified as -34 ... 50 °C, -30 ... 122 °F. Maximum Inlet Pressure is specified as 10 bar, 145 psi. Lubricator Fog Type is specified as Micro fog. Bowl Capacity is specified as 0.1 l. Flow is specified as 38 dm3/s, 81 scfm. Materials - Body is specified as Aluminium alloy. Materials - Bowl is specified as Polycarbonate (PC). Materials - Elastomers is specified as Chloroprene rubber (CR), Nitrile rubber (NBR). Dimensions - Height is specified as 183 mm. Dimensions - Length is specified as 62 mm. Dimensions - Width is specified as 68 mm. Weight is specified as 0.5 kg. Country of Origin is specified as Mexico. Range is specified as L73M.
