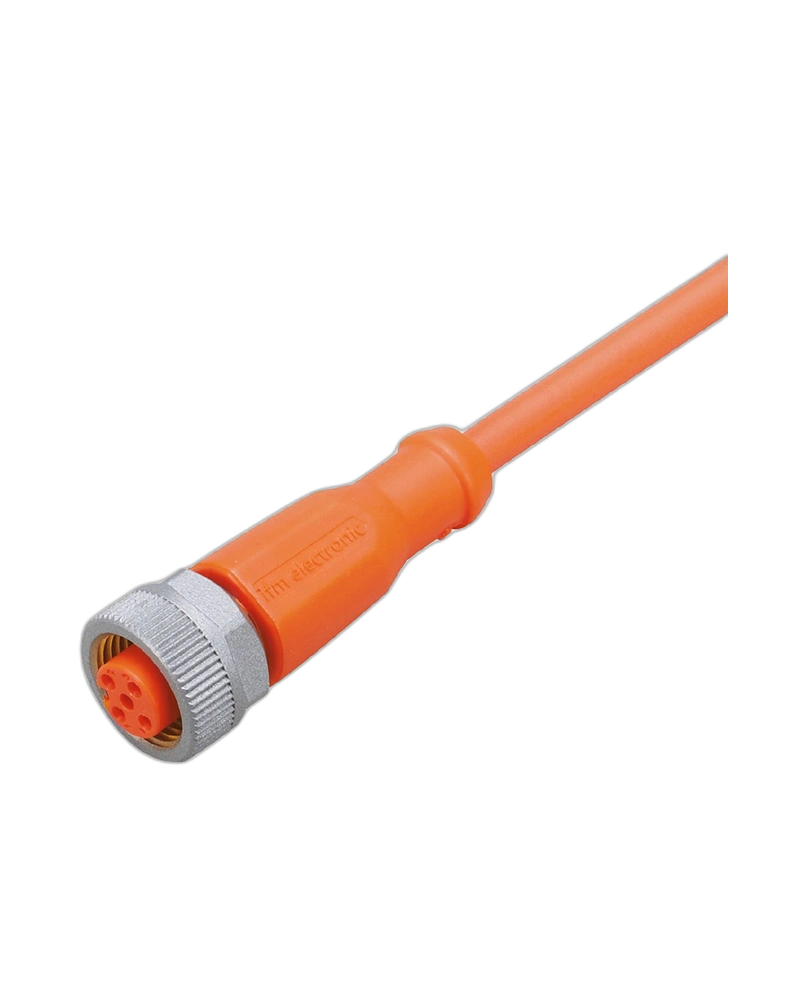

EVW129 is a 5 m M12 socket connection cable designed for reliable industrial sensor and actuator connections. Its PUR construction, weld-slag resistance, gold-plated contacts and high IP protection make it suitable for demanding automation, machinery and welding applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Extended Sensor Connection
EVW129 provides a 5 m cable length for industrial installations requiring flexible positioning of sensors and automation components.
Secure M12 Socket Connection
The straight M12 socket provides a reliable connection for compatible industrial sensors and control equipment.
Weld-Slag Resistance
The PUR cable and anti-spatter brass nut are designed for welding environments where cable protection and long-term reliability are important.
Protection for Harsh Environments
The cable provides IP65, IP67, IP68 and IP69K protection and is suitable for demanding industrial operating conditions.
Flexible Machine Integration
Drag-chain suitability and durable cable construction support use in automated machinery involving repeated cable movement.
5 m extended connection length
M12 A-coded socket
Weld-slag-resistant PUR cable
Gold-plated contacts
High IP protection
Drag-chain suitability
Durable FKM sealing
Suitable for harsh industrial environments
Industrial automation, welding equipment, robotic machinery, sensor and actuator connections, machine tools, conveyor systems, assembly machines and automated production lines.
| Specification | Details |
|---|---|
| Product Model | EVW129 |
| Product Type | Connecting Cable with Socket |
| Manufacturer | IFM |
| Part Number | ADOGH040SCS0005T04 |
| Cable Length | 5 m |
| Connector Type | M12 Socket |
| Connector Position | Straight |
| Coding | A-coded |
| Contacts | 4 |
| Cable Material | PUR |
| Cable Cross Section | 4 × 0.34 mm² |
| Cable Diameter | Approx. 4.9 mm |
| Operating Voltage | <250 V AC |
| Current Rating | 4 A |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25...90 °C |
| Cable Colour | Orange |
| Contacts | Gold-plated |
| Sealing Material | FKM |
| Nut Material | Brass, anti-spatter coated |
| Application | Welding applications |
| Drag Chain Suitability | Yes |
