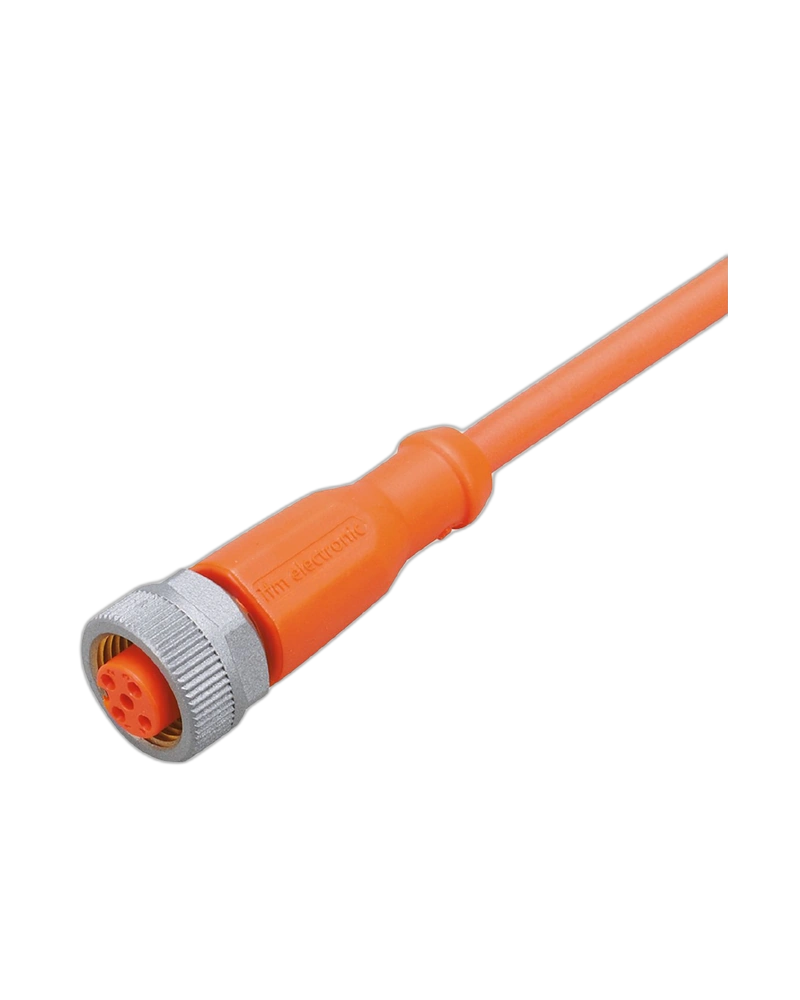

EVW128 is a 2 m industrial connection cable with an M12 socket designed for reliable sensor and actuator connections. Its weld-slag-resistant PUR cable, high IP protection, gold-plated contacts and drag-chain suitability make it suitable for harsh industrial and welding environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Reliable Sensor Connection
EVW128 is designed for connecting compatible industrial sensors and automation components using an M12 socket interface.
Welding Application Design
The PUR cable is resistant to welding sparks, while the special anti-spatter nut coating provides additional protection in welding environments.
High Environmental Protection
The cable provides IP65, IP67, IP68 and IP69K protection, making it suitable for demanding industrial environments where moisture, dust and cleaning conditions may be present.
Mechanical Durability
The drag-chain-compatible construction supports repeated movement. The locking mechanism helps protect the connection against vibration and shock.
2 m connection cable
M12 A-coded socket
Weld-slag-resistant PUR cable
Gold-plated contacts
Drag-chain suitability
High IP protection
Vibration and shock resistance
Industrial automation, welding machines, sensor connections, robotic systems, machine tools, assembly equipment and automated production lines.
| Specification | Details |
|---|---|
| Product Model | EVW128 |
| Product Type | Connecting Cable with Socket |
| Manufacturer | IFM |
| Part Number | ADOGH040SCS0002T04 |
| Cable Length | 2 m |
| Connector Type | M12 Socket |
| Connector Position | Straight |
| Coding | A-coded |
| Contacts | 4 |
| Cable Material | PUR |
| Cable Cross Section | 4 × 0.34 mm² |
| Cable Diameter | Approx. 4.9 mm |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25...90 °C |
| Cable Colour | Orange |
| Contacts | Gold-plated |
| Sealing Material | FKM |
| Nut Material | Brass, anti-spatter coated |
| Application | Welding applications |
| Drag Chain Suitability | Yes |
