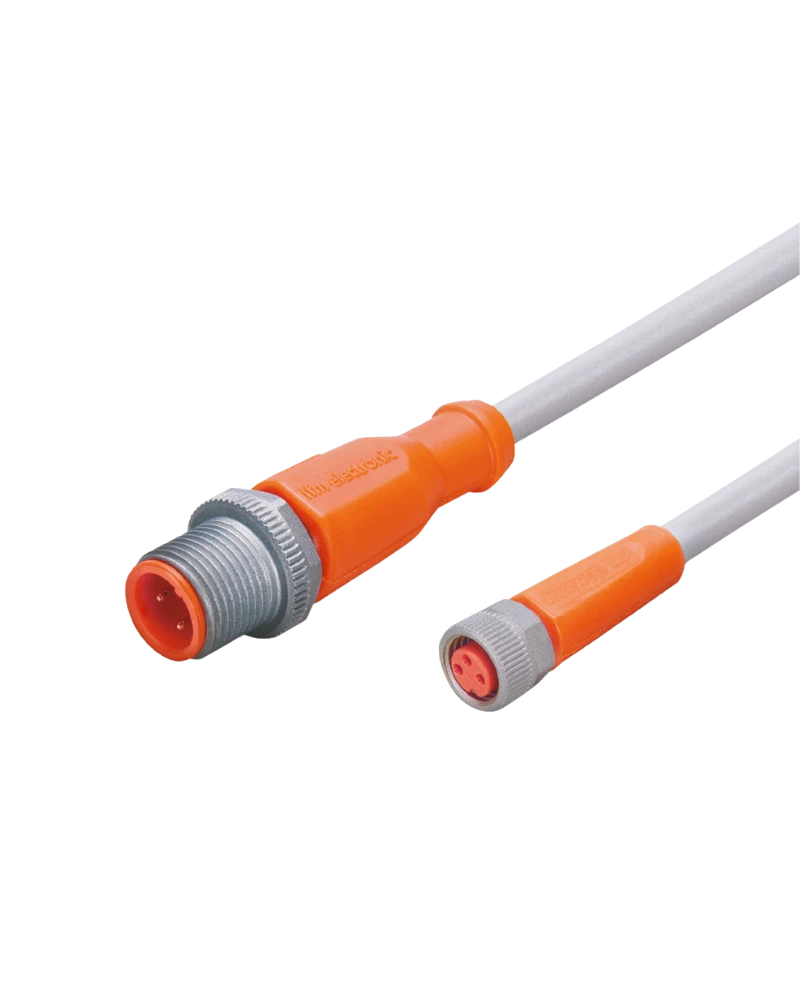

EVW127 is a 10 m 5-core M12 industrial connection cable designed for extended sensor and actuator connections. Its weld-slag-resistant PUR construction, drag-chain suitability and high protection rating provide reliable connectivity for large automated machinery and welding systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Extended Connection Capability
EVW127 provides a 10 m cable length for installations where automation components are positioned at greater distances from the control system.
Heavy-Duty M12 Connection
The 5-core M12 plug and socket configuration provides reliable connectivity for compatible industrial sensors and automation devices.
Welding Environment Protection
The PUR cable is resistant to welding sparks and supported by anti-spatter connection components for demanding industrial environments.
Designed for Continuous Movement
Drag-chain suitability and high bending-cycle performance make the cable suitable for automated machinery with repeated movement.
10 m extended cable length
5-core M12 connection
Weld-slag-resistant PUR cable
Gold-plated contacts
Drag-chain compatible
High mechanical durability
High IP protection
Large automation systems, welding robots, production lines, machine tools, conveyor systems, material handling equipment and extended sensor connections.
| Specification | Details |
|---|---|
| Product Model | EVW127 |
| Product Type | Connection Cable / Patchcord |
| Manufacturer | IFM |
| Part Number | VDOGH050SCS0010T05STGH050SCS |
| Cable Length | 10 m |
| Connector | M12 Plug / M12 Socket |
| Coding | A-coded |
| Contacts | 5 |
| Cable Material | PUR |
| Cable Cross Section | 5 × 0.34 mm² |
| Cable Diameter | Approx. 5.1 mm |
| Operating Voltage | <60 V AC/DC |
| Current Rating | 4 A |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25...90 °C |
| Cable Colour | Orange |
| Contacts | Gold-plated |
| Application | Welding applications |
| Drag Chain Suitability | Yes |
| Bending Cycles | >2 million |
