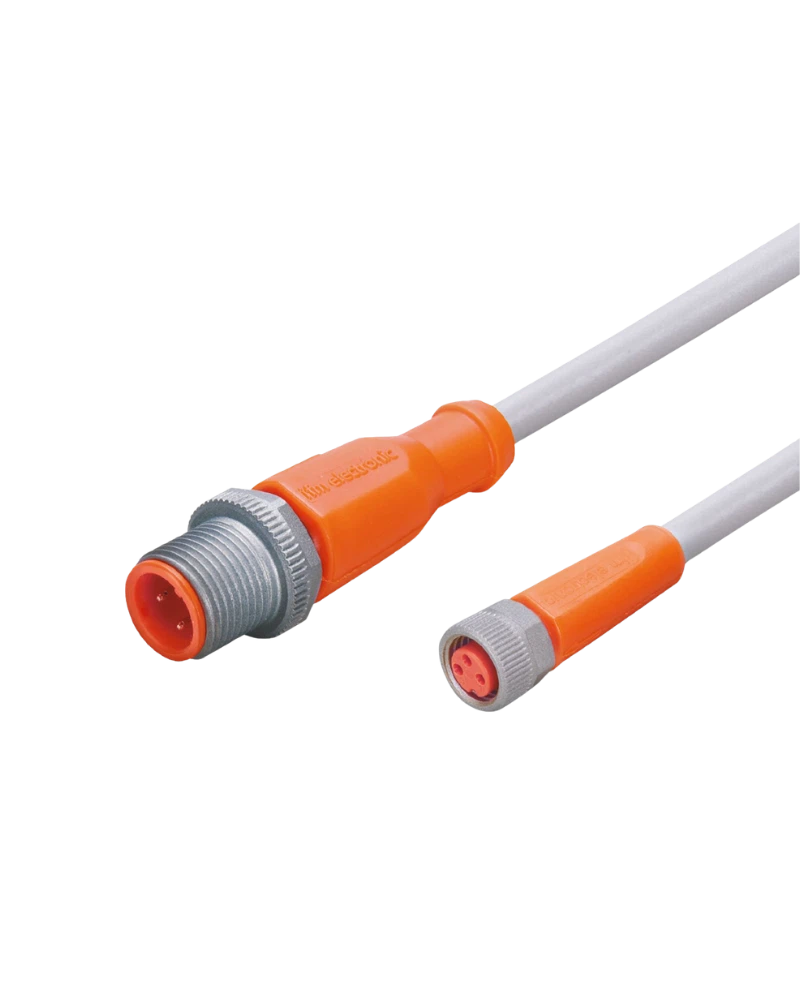

EVW126 is a 5 m 5-core M12 connection cable designed for industrial automation and welding applications. Its robust PUR construction, gold-plated contacts, high IP protection and drag-chain suitability support reliable connections in harsh and continuously moving machinery.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Extended Industrial Connection
EVW126 provides a 5 m connection length for installations requiring additional distance between sensors, actuators and control equipment.
Reliable M12 Connectivity
The M12 plug and socket configuration supports secure connection for compatible industrial automation components.
Welding-Resistant Construction
The PUR cable is resistant to welding sparks and suitable for demanding welding environments where conventional cables may experience mechanical and environmental stress.
Movement and Protection
The cable is designed for drag-chain applications and supports repeated bending, vibration and shock during machine operation.
5 m cable length
5-core M12 configuration
Welding-spark-resistant PUR cable
Gold-plated contacts
Drag-chain suitability
High bending-cycle performance
IP65/IP67/IP68/IP69K protection
Industrial automation, robotic welding, production machinery, conveyor systems, assembly machines, machine tools and sensor-actuator connections.
| Specification | Details |
|---|---|
| Product Model | EVW126 |
| Product Type | Connection Cable / Patchcord |
| Manufacturer | IFM |
| Part Number | VDOGH050SCS0005T05STGH050SCS |
| Cable Length | 5 m |
| Connector | M12 Plug / M12 Socket |
| Coding | A-coded |
| Contacts | 5 |
| Cable Material | PUR |
| Cable Cross Section | 5 × 0.34 mm² |
| Cable Diameter | Approx. 5.1 mm |
| Operating Voltage | <60 V AC/DC |
| Current Rating | 4 A |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25...90 °C |
| Cable Colour | Orange |
| Contacts | Gold-plated |
| Application | Welding applications |
| Drag Chain Suitability | Yes |
