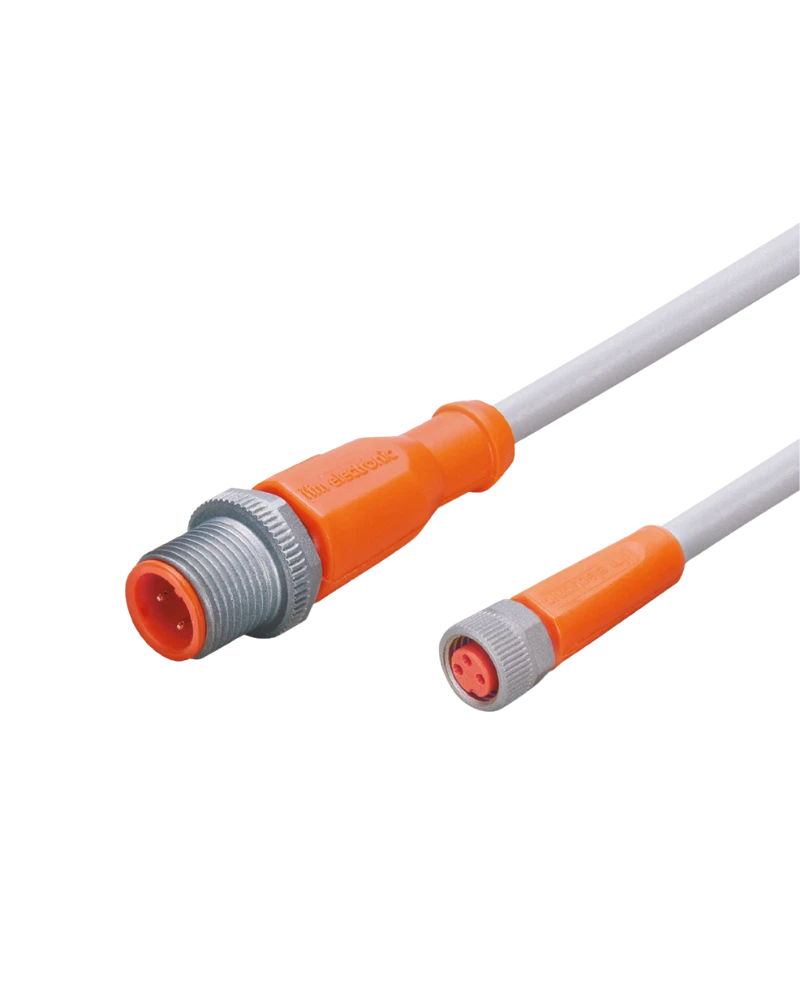

EVW124 is a 2 m 5-core M12 connection cable designed for reliable industrial automation and welding applications. Its PUR cable, gold-plated contacts, drag-chain suitability and robust protection provide stable connectivity in harsh and continuously moving machine environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Reliable 2 m Connection
EVW124 provides additional cable length for machine installations where sensors and automation components require flexible positioning.
Industrial M12 Interface
The M12 plug and socket configuration provides secure connectivity for compatible industrial sensors, actuators and automation devices.
Built for Welding Areas
The weld-slag-resistant PUR cable and coated brass connection components help protect the cable from demanding welding environments.
Suitable for Machine Movement
The cable is designed for drag-chain use and repeated bending, making it suitable for automated machinery with continuous movement.
2 m connection length
5-core M12 connectivity
Weld-slag-resistant construction
Gold-plated contacts
Drag-chain suitability
Vibration and shock resistance
High protection rating
Welding machinery, industrial automation, robotic equipment, machine tools, conveyor systems, assembly machines and automated production lines.
| Specification | Details |
|---|---|
| Product Model | EVW124 |
| Product Type | Connection Cable / Jumper |
| Manufacturer | IFM |
| Part Number | VDOGH050SCS0002T05STGH050SCS |
| Cable Length | 2 m |
| Connector | M12 Plug / M12 Socket |
| Coding | A-coded |
| Contacts | 5 |
| Cable Material | PUR |
| Cable Cross Section | 5 × 0.34 mm² |
| Cable Diameter | Approx. 5.1 mm |
| Operating Voltage | <60 V AC/DC |
| Current Rating | 4 A |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25...90 °C |
| Contacts | Gold-plated |
| Cable Colour | Orange |
| Application | Welding applications |
| Drag Chain Suitability | Yes |
