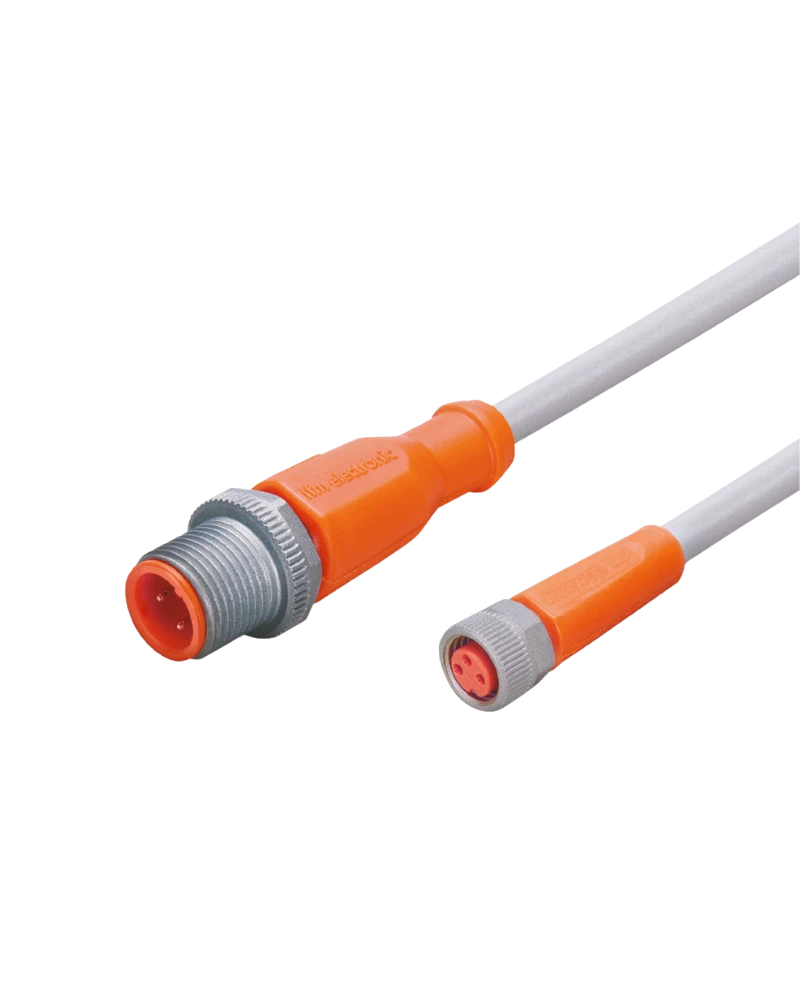

EVW123 is a compact 1 m M12 connection cable designed for reliable industrial sensor and actuator connections. The 5-core PUR cable provides durable performance in welding applications with resistance to vibration, shock, welding sparks and demanding machine movements.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Compact Industrial Connection
EVW123 offers a 1 m connection length for compact machine installations where reliable sensor and actuator connectivity is required.
5-Core M12 Configuration
The cable features M12 plug and socket connections with five gold-plated contacts, supporting dependable electrical connection for compatible industrial devices.
Welding Environment Protection
Its halogen-free, silicone-free PUR construction is designed for welding applications and provides resistance against welding sparks.
High Mechanical Durability
Drag-chain suitability, vibration resistance and high bending-cycle capability make the cable appropriate for moving industrial machinery.
Compact 1 m connection length
5-core M12 connection
Weld-slag-resistant PUR cable
Gold-plated contacts
Drag-chain suitable
High bending-cycle performance
High IP protection
Industrial automation, welding equipment, robotic systems, machine tools, sensor connections, production machinery and automated assembly systems.
| Specification | Details |
|---|---|
| Product Model | EVW123 |
| Product Type | Connection Cable / Patchcord |
| Manufacturer | IFM |
| Part Number | VDOGH050SCS0001T05STGH050SCS |
| Cable Length | 1 m |
| Connector | M12 Plug / M12 Socket |
| Coding | A-coded |
| Contacts | 5 |
| Cable Material | PUR |
| Cable Cross Section | 5 × 0.34 mm² |
| Cable Diameter | Approx. 5.1 mm |
| Operating Voltage | <60 V AC/DC |
| Current Rating | 4 A |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25...90 °C |
| Cable Colour | Orange |
| Contacts | Gold-plated |
| Application | Welding applications |
| Drag Chain Suitability | Yes |
