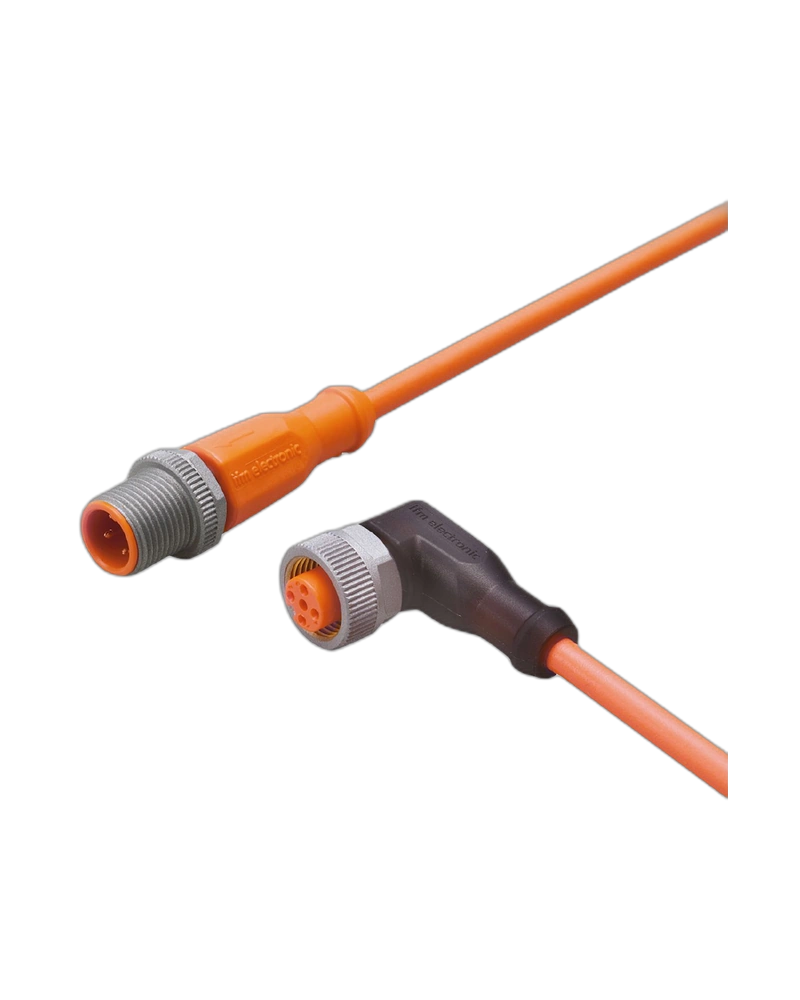

EVW122 is a 10 m M12 connection cable developed for extended sensor and actuator connections in industrial automation. Its weld-slag-resistant PUR cable, drag-chain suitability and robust construction provide dependable connectivity for welding machinery and demanding production environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Extended Connection Range
EVW122 provides a 10 m cable length for installations where sensors or automation components are positioned farther from the control system.
Industrial M12 Connectivity
The M12 plug and socket arrangement enables secure connection between compatible automation components and helps simplify machine wiring.
Welding Application Design
The PUR cable is resistant to welding sparks and supported by a special weld-slag-resistant nut coating for demanding production environments.
Reliable Machine Movement
The cable is suitable for drag-chain applications and designed to handle repeated movement, vibration and shock.
10 m extended connection length
Weld-slag-resistant PUR cable
Suitable for drag-chain movement
Reliable M12 connection
Gold-plated contacts
High industrial protection rating
Suitable for welding applications
Welding systems, robotic welding cells, industrial automation, machine tools, conveyor systems, production machinery and long-distance sensor connections.
| Specification | Details |
|---|---|
| Product Model | EVW122 |
| Product Type | Connection Cable |
| Manufacturer | IFM |
| Part Number | VDOAH043SCS0010T04STGH040SCS |
| Cable Length | 10 m |
| Connector | M12 Plug / M12 Socket |
| Contacts | 4 |
| Cable Material | PUR |
| Cable Cross Section | 4 × 0.34 mm² |
| Operating Voltage | 10...36 V DC |
| Current Rating | 4 A |
| Electrical Design | DC PNP |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Cable Suitability | Drag-chain |
| Contacts | Gold-plated |
| Application | Welding applications |
| Cable Colour | Orange |
| Ambient Temperature | -25...90 °C |
