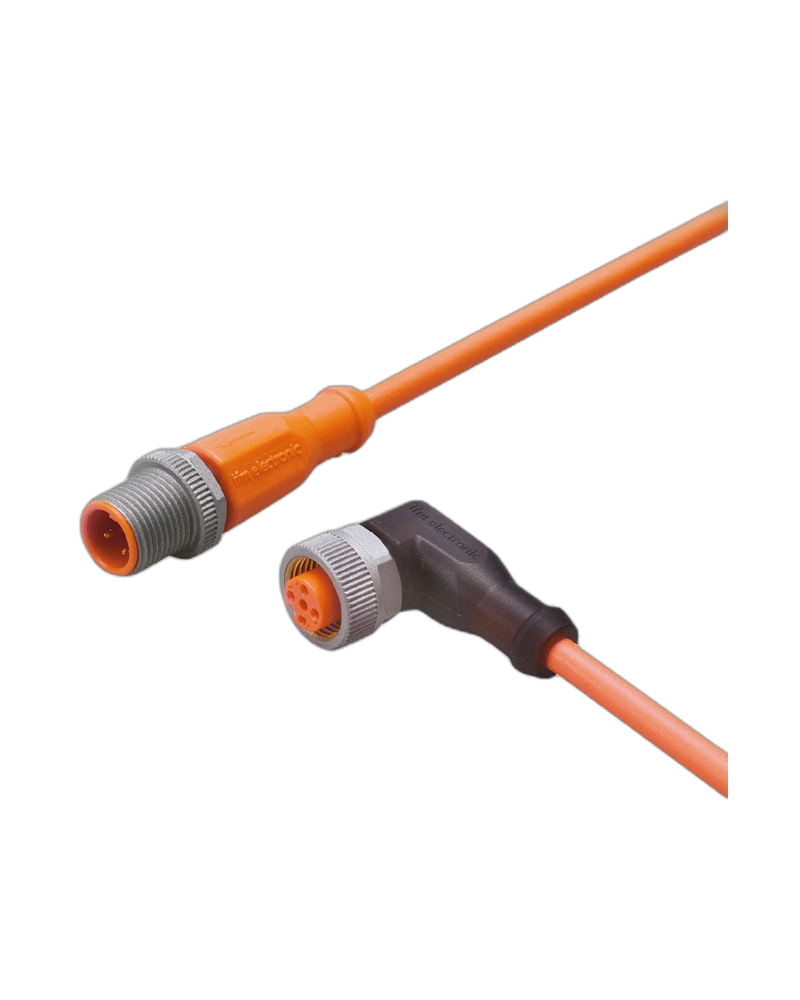

EVW121 is a 5 m industrial connection cable with M12 plug and socket connections for reliable sensor and actuator integration. Its weld-slag-resistant PUR construction, drag-chain suitability and high IP protection make it suitable for demanding welding and automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Reliable Connection Technology
EVW121 is designed to provide stable electrical connections between industrial sensors, actuators and automation equipment. The M12 connection system supports secure installation in production machinery.
Welding Environment Protection
The cable is manufactured with weld-slag-resistant PUR material and a specially coated nut to withstand demanding welding environments.
Flexible and Durable Construction
The cable is suitable for drag-chain applications and can withstand repeated bending movements. Its locking mechanism improves resistance to vibration and mechanical shock.
Clear Status Indication
The model includes LED status indication for easier monitoring during machine operation.
Reliable 5 m industrial connection
Weld-slag-resistant cable construction
Suitable for moving machine applications
High IP65, IP67, IP68 and IP69K protection
Gold-plated contacts
Secure locking connection
LED status indication
Welding automation, industrial machinery, robotic systems, conveyor equipment, sensor and actuator connections, production lines and automated manufacturing equipment.
| Specification | Details |
|---|---|
| Product Model | EVW121 |
| Product Type | Connection Cable |
| Manufacturer | IFM |
| Part Number | VDOAH043SCS0005T04STGH040SCS |
| Cable Length | 5 m |
| Connector | M12 Plug / M12 Socket |
| Coding | A-coded |
| Contacts | 4 |
| Cable Material | PUR |
| Cable Cross Section | 4 × 0.34 mm² |
| Cable Diameter | Approx. 4.9 mm |
| Operating Voltage | 10...36 V DC |
| Current Rating | 4 A |
| Electrical Design | DC PNP |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25...90 °C |
| Moving Temperature | -25...90 °C |
| Contacts | Gold-plated |
| Cable Colour | Orange |
| Application | Welding applications |
| Drag Chain Suitability | Yes |
