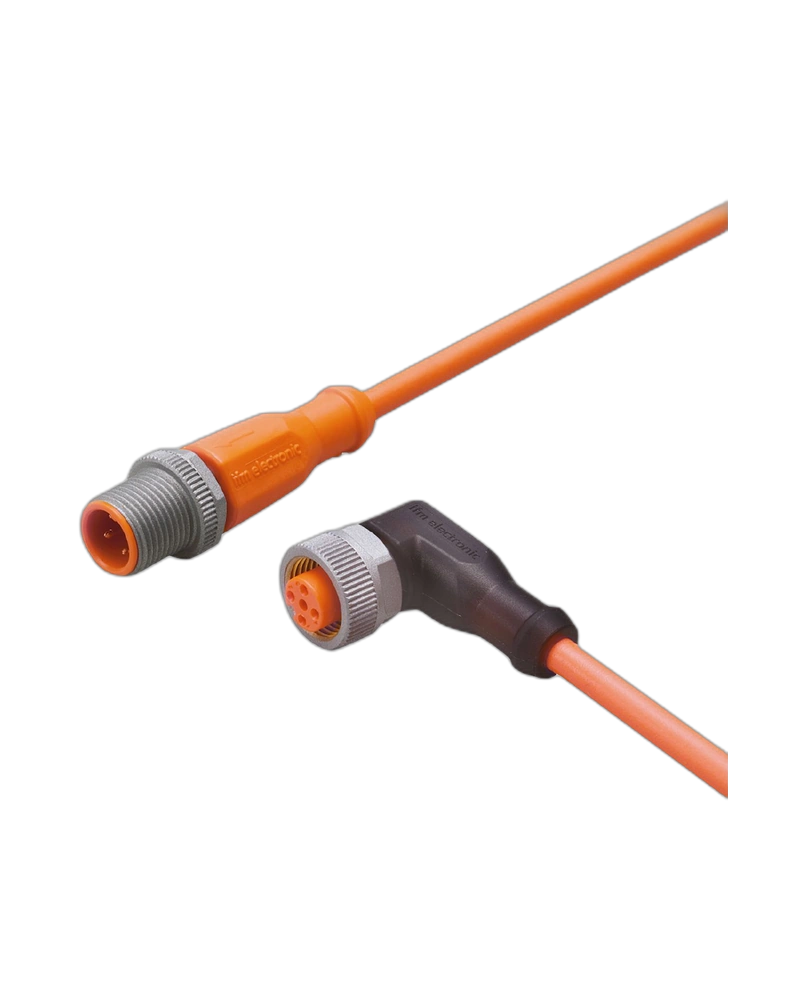

EVW120 is a 3 m industrial M12 connection cable designed for reliable sensor and actuator connections in welding applications. Its weld-slag-resistant PUR cable, drag-chain suitability, gold-plated contacts and high IP protection support dependable operation in demanding automation environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Reliable Industrial Connection
The EVW120 connection cable provides a dependable interface between sensors, actuators and industrial control equipment. Its M12 plug and socket configuration supports secure electrical connections in automated machinery.
Designed for Welding Applications
The cable uses weld-slag-resistant PUR material and a specially coated brass nut, making it suitable for welding environments where sparks and spatter may be present.
Flexible Machine Integration
With drag-chain suitability and a flexible cable construction, the EVW120 can be used in moving machine applications. The locking mechanism helps maintain a secure connection against vibration and shock.
Electrical Performance
The cable supports 10...36 V DC operation with a maximum total current load of 4 A. Gold-plated contacts help provide reliable signal transmission during continuous industrial operation.
Reliable M12 plug-to-socket connection
Weld-slag-resistant PUR cable construction
Suitable for drag-chain applications
High protection against harsh industrial conditions
Gold-plated contacts for reliable connectivity
Vibration and shock-resistant connection
Suitable for continuous automation operation
Industrial automation, welding machines, robotic systems, sensor connections, machine tools, production lines, material handling equipment and automated manufacturing systems.
| Specification | Details |
|---|---|
| Product Model | EVW120 |
| Product Type | Connection Cable |
| Manufacturer | IFM |
| Part Number | VDOAH043SCS0003T04STGH040SCS |
| Cable Length | 3 m |
| Connector Configuration | M12 Plug / M12 Socket |
| Coding | A-coded |
| Number of Contacts | 4 |
| Cable Material | PUR |
| Cable Cross Section | 4 × 0.34 mm² |
| Cable Diameter | Approx. 4.9 mm |
| Operating Voltage | 10...36 V DC |
| Current Rating | 4 A |
| Electrical Design | DC PNP |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25...90 °C |
| Cable Suitability | Drag-chain suitable |
| Contacts | Gold-plated |
| Sheath Colour | Orange |
| Application | Welding applications |
