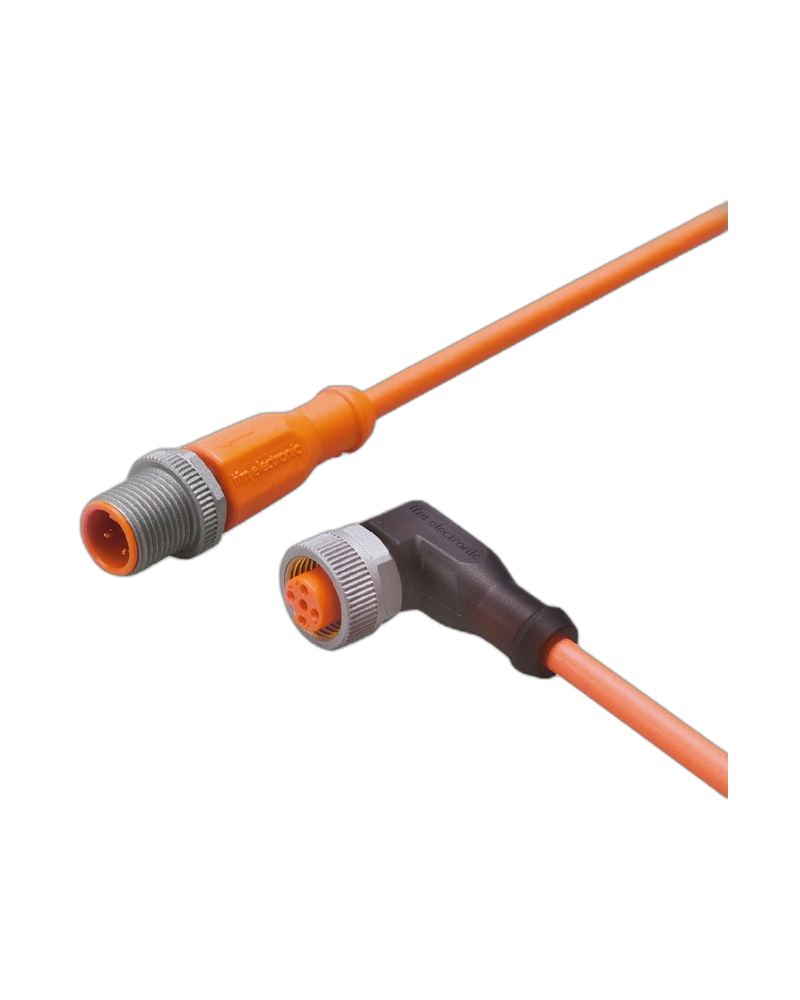

The EVW119 Connection Cable is designed for reliable electrical connections in industrial automation and welding applications. Its weld-slag resistant PUR cable supports drag chain use and continuous machine movement. Integrated LEDs provide clear switching and operating status indication.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EVW119 Connection Cable provides stable electrical connectivity between industrial sensors and automation equipment. Its robust design makes it suitable for demanding production environments.
The PUR cable is resistant to welding sparks and is designed for harsh industrial applications. The anti-spatter coupling nut provides additional protection around the connection point.
The cable is suitable for drag chain applications and repeated machine movement. Its vibration and shock resistant coupling helps maintain a secure connection during continuous operation.
Two yellow LEDs indicate switching status while a green LED indicates operation. This provides quick visual feedback during machine setup and troubleshooting.
Weld-slag resistant PUR cable
Drag chain suitable
High protection rating
Gold-plated contacts
Vibration and shock resistant
Integrated LED status indication
Suitable for continuous machine movement
Welding machines, robotic automation, industrial machinery, machine tools, production lines, conveyor systems, sensor connections and automated manufacturing equipment.
| Specification | Details |
|---|---|
| Product Model | EVW119 |
| Product Type | Connection Cable |
| Order Code | VDOAH043SCS0002T04STGH040SCS |
| Cable Length | 2 m |
| Cable Material | PUR |
| Cable Colour | Orange |
| Cable Diameter | 4.9 mm |
| Application | Welding applications |
| Operating Voltage | 10–36 V DC |
| Total Current Load | 4 A |
| Protection Class | II |
| Protection Rating | IP65, IP67, IP68, IP69K |
| Connector | M12 |
| Contacts | Gold-plated |
| Cable Suitability | Drag chain suitable |
| Ambient Temperature | -25 to 90°C |
| Switching Status | 2 × yellow LED |
| Operation Status | 1 × green LED |
| Sealing Material | FKM |
| Cable Cross Section | 4 × 0.34 mm² |
| Special Feature | Weld-slag resistant |
